ENGINE 3-45
CLUTCH LIFTER

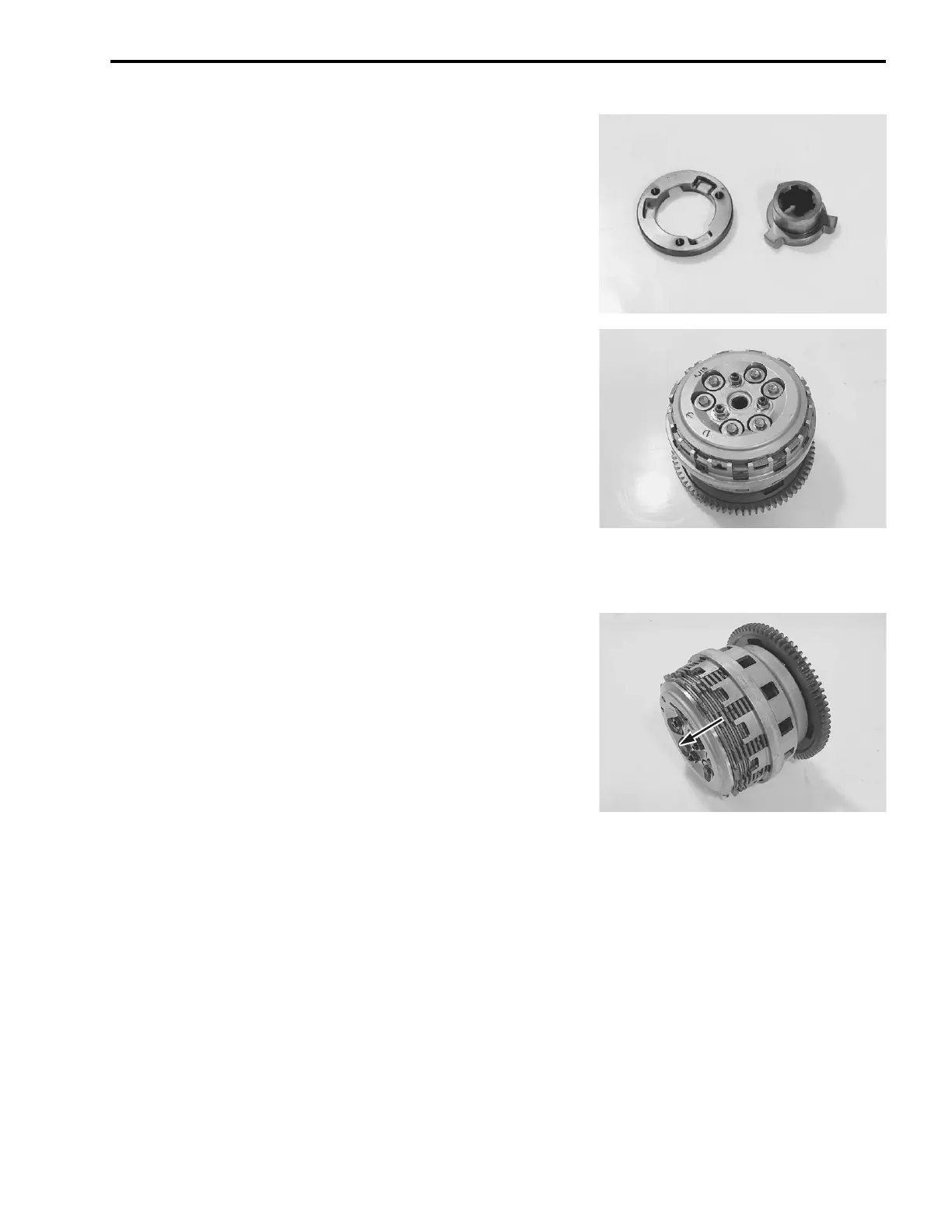

CLUTCH LIFTER DRIVE CAM AND DRIVEN CAM INSPEC-
TION
• Inspect the clutch lifter drive cam and driven cam for wear or
damage. If any defects are found, replace the clutch lifter
drive cam and driven cam as a set.
CLUTCH LIFTER PIN ADJUSTMENT
NOTE:
When adjusting the clutch lifter, it is not necessary to install the
clutch onto the countershaft.
• Assemble the following parts into the primary driven gear
assembly. (3-94 to -97)
* Clutch sleeve hub
* Spring washer seat, Spring washer
* Clutch drive plates, Clutch driven plates
* Pressure plate
* Clutch springs, Clutch springs set bolts
Clutch spring set bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
• Remove the clutch assembly from the primary driven gear
assembly.
