10-24 SERVICING INFORMATION

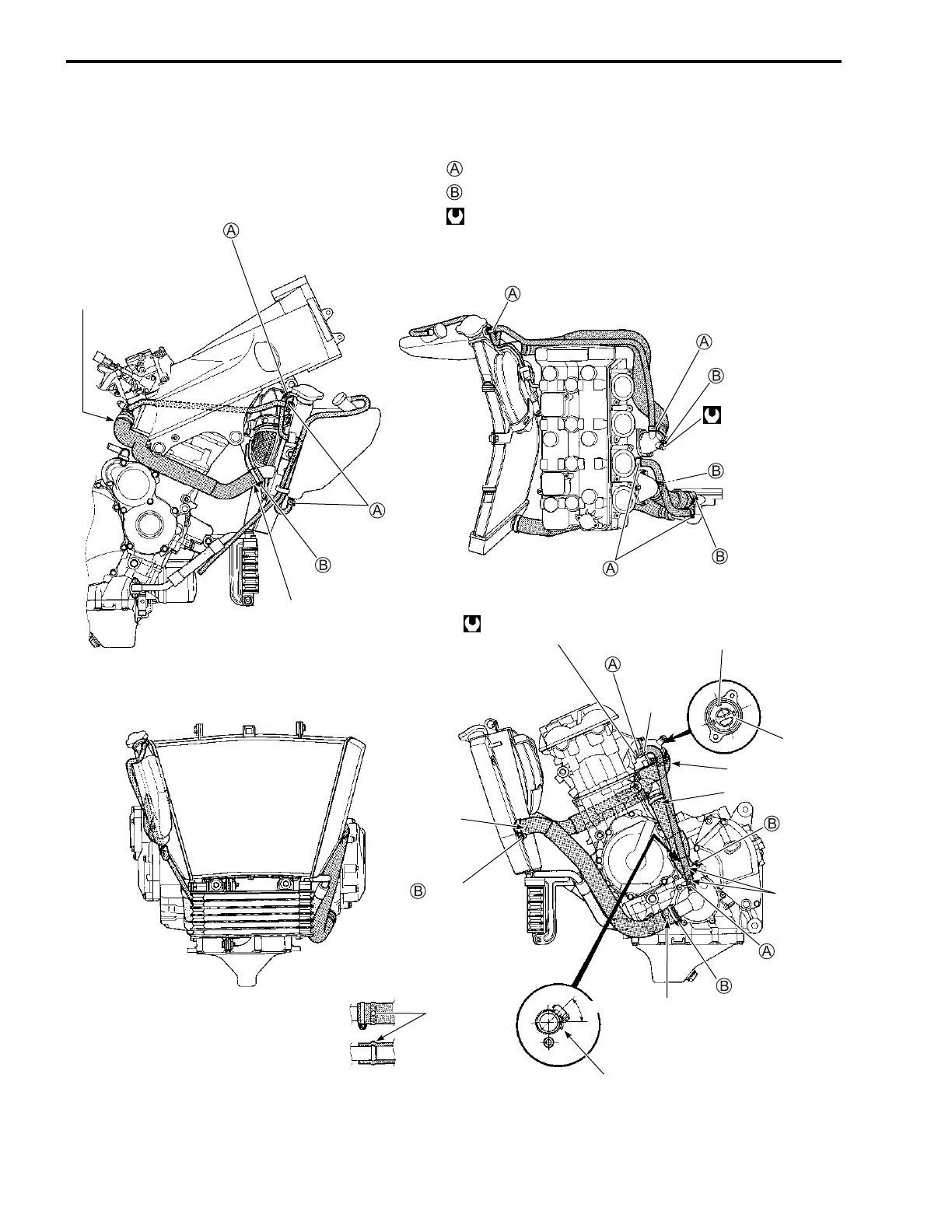

COOLING SYSTEM HOSE ROUTING
Align the marking
with the rib of pipe.
Union bolt
12 N·m (1.2 kgf-m, 8.5 lb-ft)
Jiggle valve
Thermostat
Left down side.
Do not touch the end
of clamp to the hose.
45˚
Backward.
Left side.
Left side.
Backward.
Backward.
Air bleeder
6 N·m
0.6 kgf-m
4.5 lb-ft
Marking (Green)
Marking (White)
Right down side.
: The ends of the clamp should face.....
: The clamp screw head should face.....
Hose clamp bolt tightening torque: 2 N·m (0.2 kgf-m, 1.5 lb-ft)
Backward.
Right side.
Left side.
Marking
(Green)
Marking (White)
Marking (Red)
Left side.
Marking
(White)
Left side.
Marking
(White)
Marking
Left down side.
Marking
(Green)
Backward.
( )
