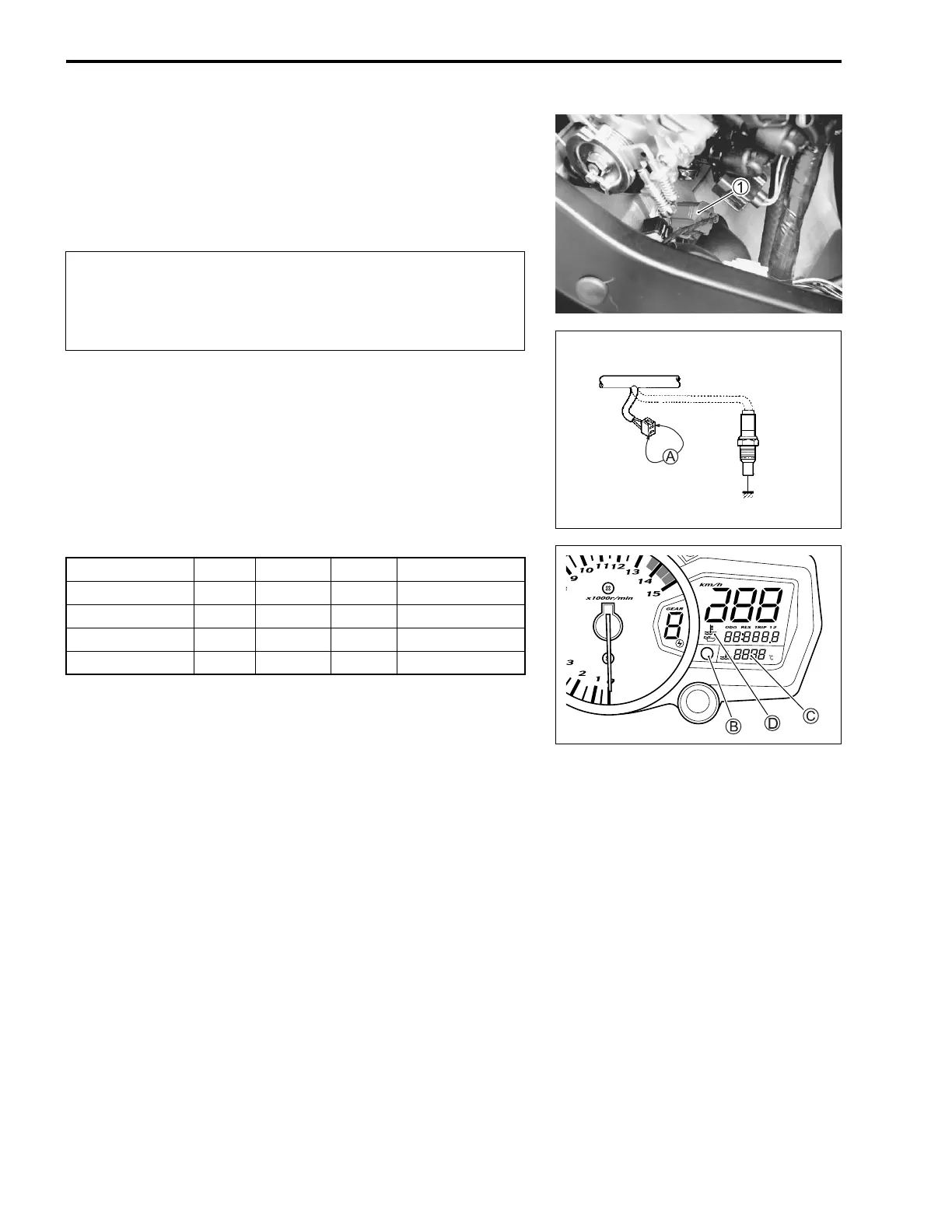

9-32 ELECTRICAL SYSTEM
ENGINE COOLANT TEMPERATURE METER AND
INDICATOR
ECT sensor inspection (7-7 to -8)
• Lift and support the fuel tank. (5-3)
• Disconnect the ECT sensor coupler 1.

• Connect the variable resistor A between the terminals.
• Disconnect the oil pressure switch lead wire from the oil pres-
sure switch.
NOTE:
Leave the oil pressure switch lead wire open.
• Turn the ignition switch ON.
• Check the LCD and LED operations when the resistance is
adjusted to the specified values.
If either one or all indications are abnormal, replace the combi-
nation meter with a new one.
NOTE:
If the engine stop switch is turned OFF or side-stand/ignition
inter-lock system is not working while the ignition switch is ON,
the LCD displays “CHEC”. But it is not a malfunction.
This condition implies that combination meter receives no signal
from the ECM.
In that case, they are restored to normal indication by turning the
engine stop switch to RUN position.
When connecting and disconnecting the engine cool-
ant temperature sensor lead wire coupler, make sure
to turn OFF the ignition switch, or electronic parts
may get damaged.
Resistance A LED B LCD C LCD D
Water temperature
2.45 k Ω and over OFF “---” ------- 19 °C and below
Approx. 0.811 k Ω OFF “50” ------- Approx. 50 °C
Approx. 0.1 k Ω ON ON “120” – “139” Flicker 120 – 139 °C
0 Ω (Jumper wire) ON “HI” Flicker 140 °C and over
SAMPLE

Suzuki GSX-R1000K5 Specifications

General

Displacement	998cc
Bore x Stroke	73.4 mm x 59.0 mm
Compression Ratio	12.5:1
Fuel System	Fuel Injection
Front Brake	Dual hydraulic disc
Rear Brake	Single hydraulic disc
Dry Weight	166 kg (366 lbs)
Ignition	Electronic ignition (Transistorized)
Lubrication System	Wet sump
Starter	Electric
Final Drive	Chain
Engine Type	4-stroke, 4-cylinder, DOHC
Torque	115 Nm (84.8 lb-ft) @ 10, 000 rpm
Transmission	6-speed, constant mesh
Front Suspension	Inverted telescopic
Rear Suspension	Link type
Seat Height	810 mm
Fuel Capacity	18 L (4.8 US gallons)
Overall Width	710 mm
Overall Height	1135 mm
Tires Front	120/70 ZR17
Tires Rear	190/50ZR17M/C (73W)
Ground Clearance	130 mm
