12. Body Cover
12-7

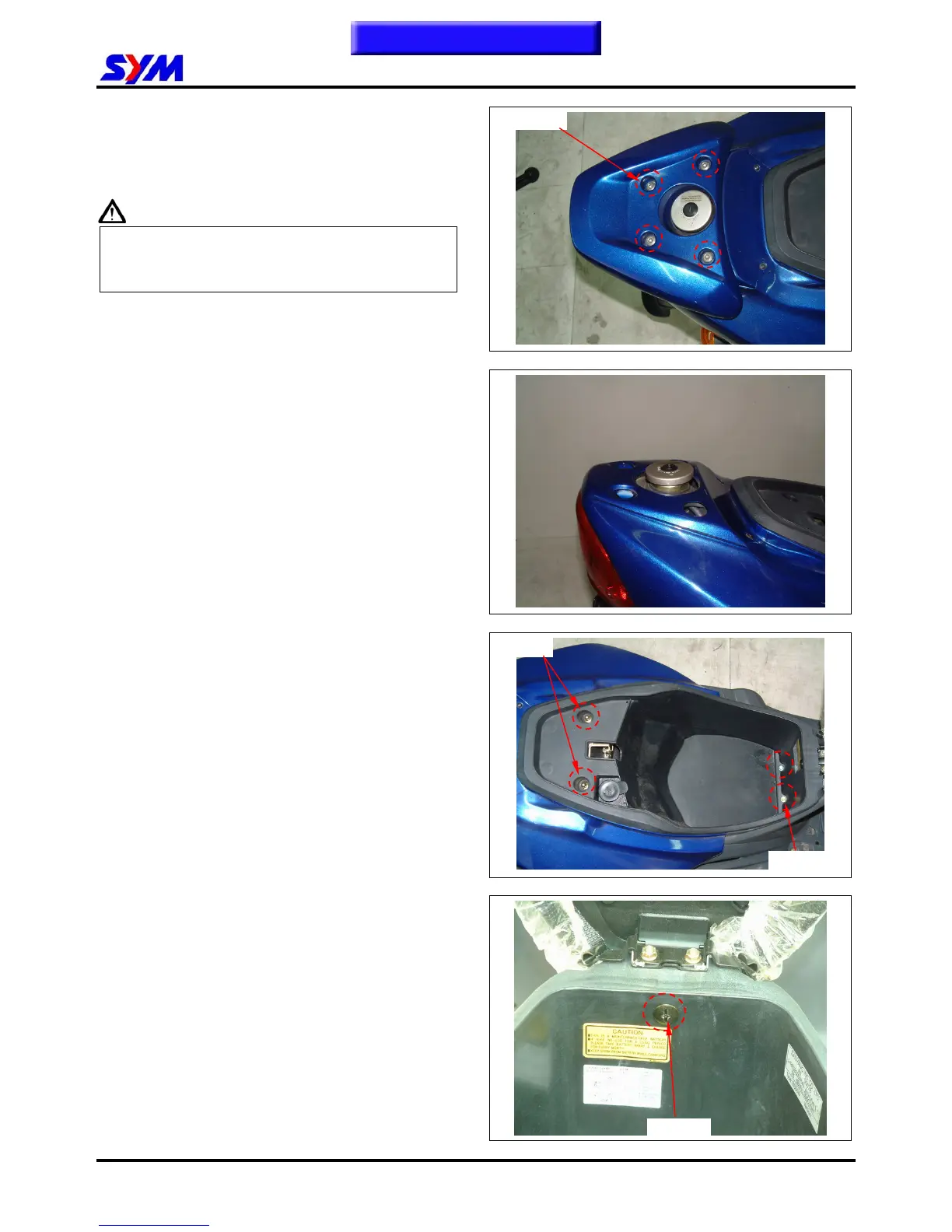

Rear Carrier
Removal
Remove the hex-socket bolts (bolt x 4) of the rear
carrier.
Caution
Do not open the fuel tank cap as removing the
bolts so that prevent from bolts falling into the
fuel tank.
Open the fuel tank cap with key.
Remove the rear carrier.
Installation
Install according to the reverse procedure of
removal.
Luggage Box
Removal
Open the seat.
Remove the 2 mounting nuts and 2 bolts of the
luggage box.
Remove the 1 upper screw inside of the front
luggage box.
Remove the luggage box and seat upward.
Bolt x 4
Nuts x 2
Bolts x 2
Screw x 1
