13. Steering/Front Wheel/Front Shock Absorber
13-3

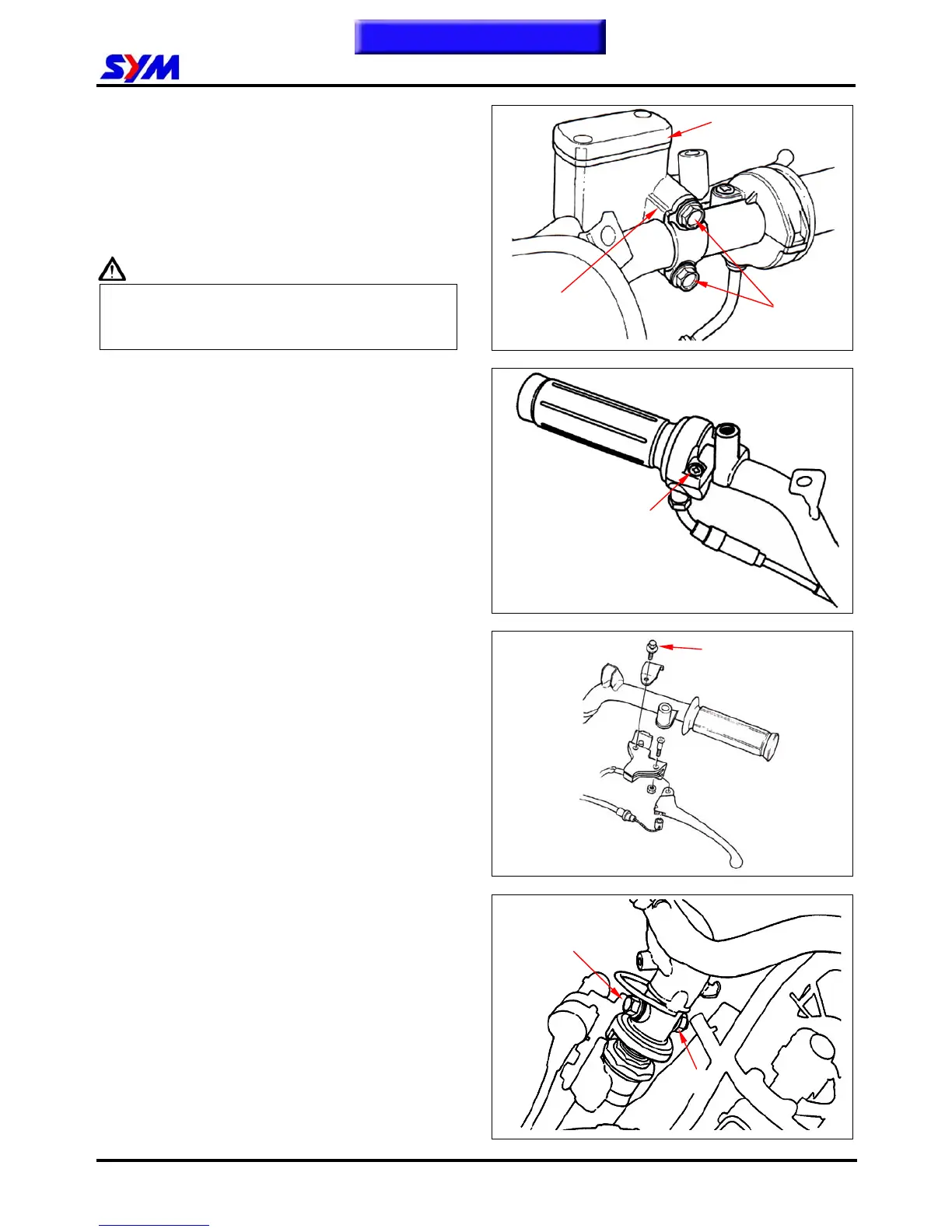

Steering Handle
REMOVAL
Remove handle front & rear cover and the front
cover (refer to chapter 12).
Disc Brake
Remove the 2 bolts of the brake master cylinder,
and then take out the master cylinder and the split
ring.
Caution
Do not operate the front brake lever to avoid to
pressing out the brake lining when removing
the master cylinder.
Remove throttle handle housing screw and then
remove the handle, throttle cable, and handle
upper housing & under housing.
Remove the mounting bolt of the rear brake lever
braket. (1 bolt)
Take out rear brake lever braket and lever.
With a wrench to hold the handle bolt and then
remove the nut.
Take out the handle after removed the bolt.
Installation
Install the handle according to the reverse
procedure of removal.
Apply with some grease onto the handle moving
parts when installing the throttle handle housing,
throttle handle, and throttle cable.
This Chapter Contents
Screw
Bolt
Nut
1 Bolt
Bolts
Master cylinder
Mounting seat
To Next Page
