9. CRANKCASE/CRANKSHAFT
9-3

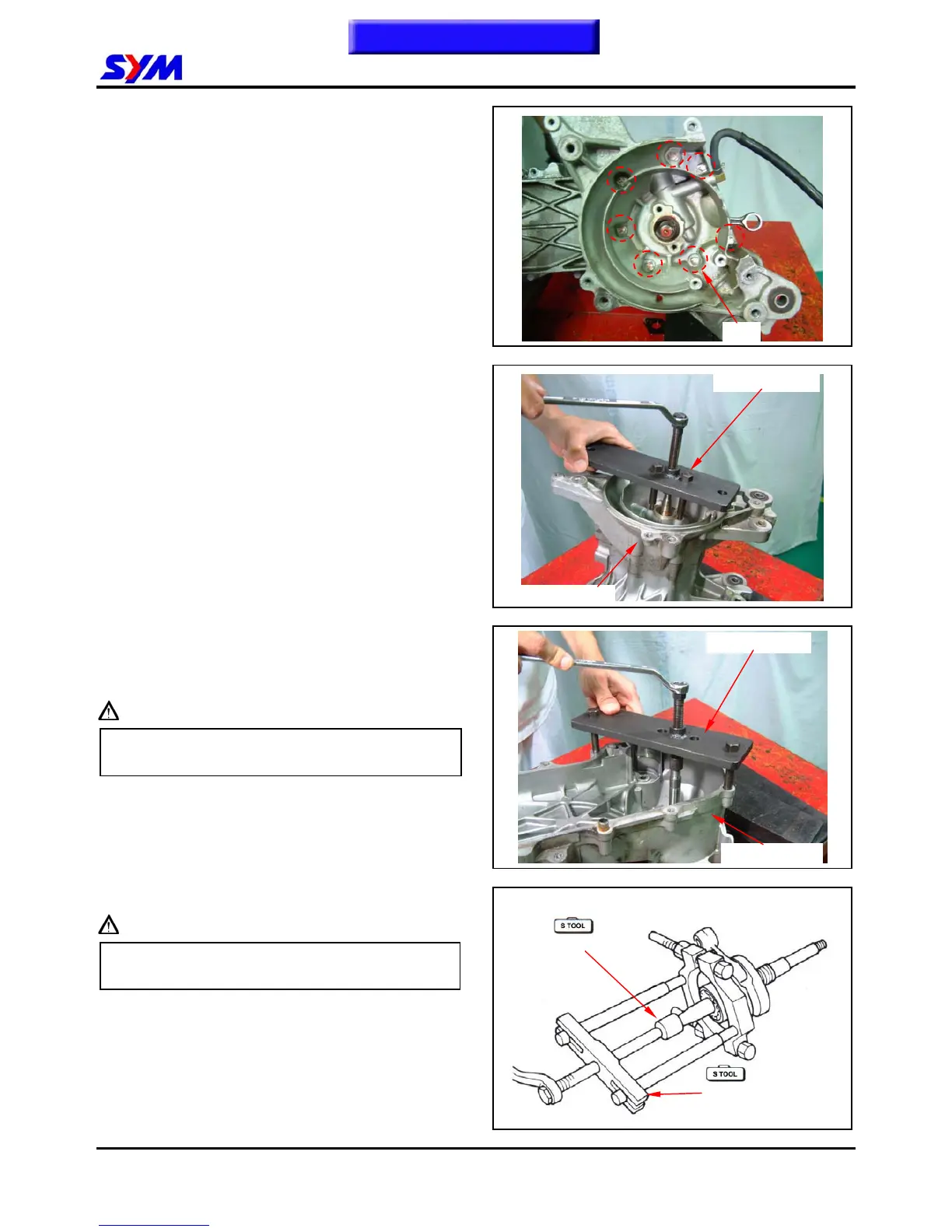

Crankcase Disassembly
Remove the crankcase bolts.
Install the crankcase puller onto the right
crankcase with two (2) bolts, 6mm, as the diagram
shown.
Disassemble the right crankcase.
Crankshaft Removal
As the diagram show with 3 special bolts to install
the specified service tool onto the left crankcase.
Remove the crankcase.
Caution
Do not use iron hammer to knock out the
crankshaft.
Remove crankshaft bearing with bearing puller.
Remove the right and left side oil seals.
Caution
Replace the oil seal with new one as removing
the crankshaft.
Right crankcase
Crankcase puller
Outer bearing puller
Crankcase puller
Bolts
Shaft protection collar
Left crankcase
