14. REAR WHEEL/SUSPENSION
14-4

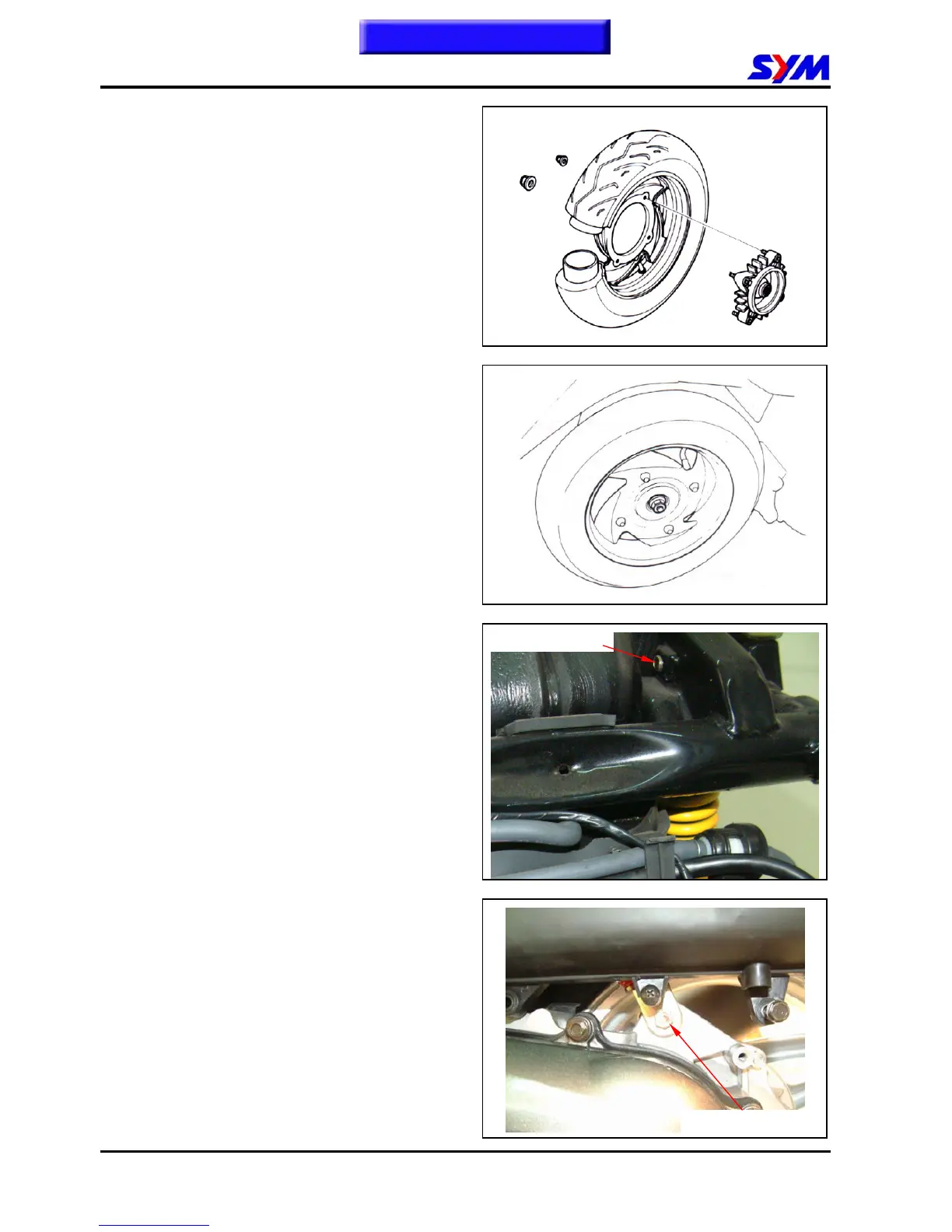

Brake Hub Replacement
Remove 4 nuts of cover and wheel rim, and then
remove the wheel hub.
Install the wheel hub and tighten the nuts.
Tighten torque: 2.5 kgf-m
Installation
Install the rear wheel and tighten the nut.
Tighten torque: 11.0 kgf-m
Install exhaust pipe & muffler.
Tighten torque (bolt): 3.3 kgf-m
Tighten torque (nut): 1.2 kgf-m
Install the body cover.
Rear Shock Absorber
Removal
Remove body cover.
Remove rear shock absorber upper & lower
bolts.
Remove rear shock absorber.
Installation
Install the rear shock absorber.
Tighten the upper & lower mounting bolts to
specified torque.
Torque value:
Upper mounting bolt: 4.0 kgf-m
Lower mounting bolt: 2.7 kgf-m
Press down the tail of the scooter for several
times to check shock absorber operation.
Installation all components in reverse order of
removal procedures.
Upper mounting bolt
Lower mounting bolt
