Front-Panel Operation
Controlling Trigger Functions 3
3-19
addition to storing and recalling readings and configurations, a memory management
function is available to delete files.
To access the Memory functions, press the M key. The memory menu appears over
the five soft keys: RECALL CONFIG, RECALL READING, STORE CONFIG,
STORE READINGS, and MANAGE MEMORY.
Storing Readings in Memory
The Meter will hold up to 9999 readings in one internal memory file. With external
memory, the Meter will hold 999 additional readings files, each of which will store up to
10000 readings.
To store readings in internal memory:
1. Press M.

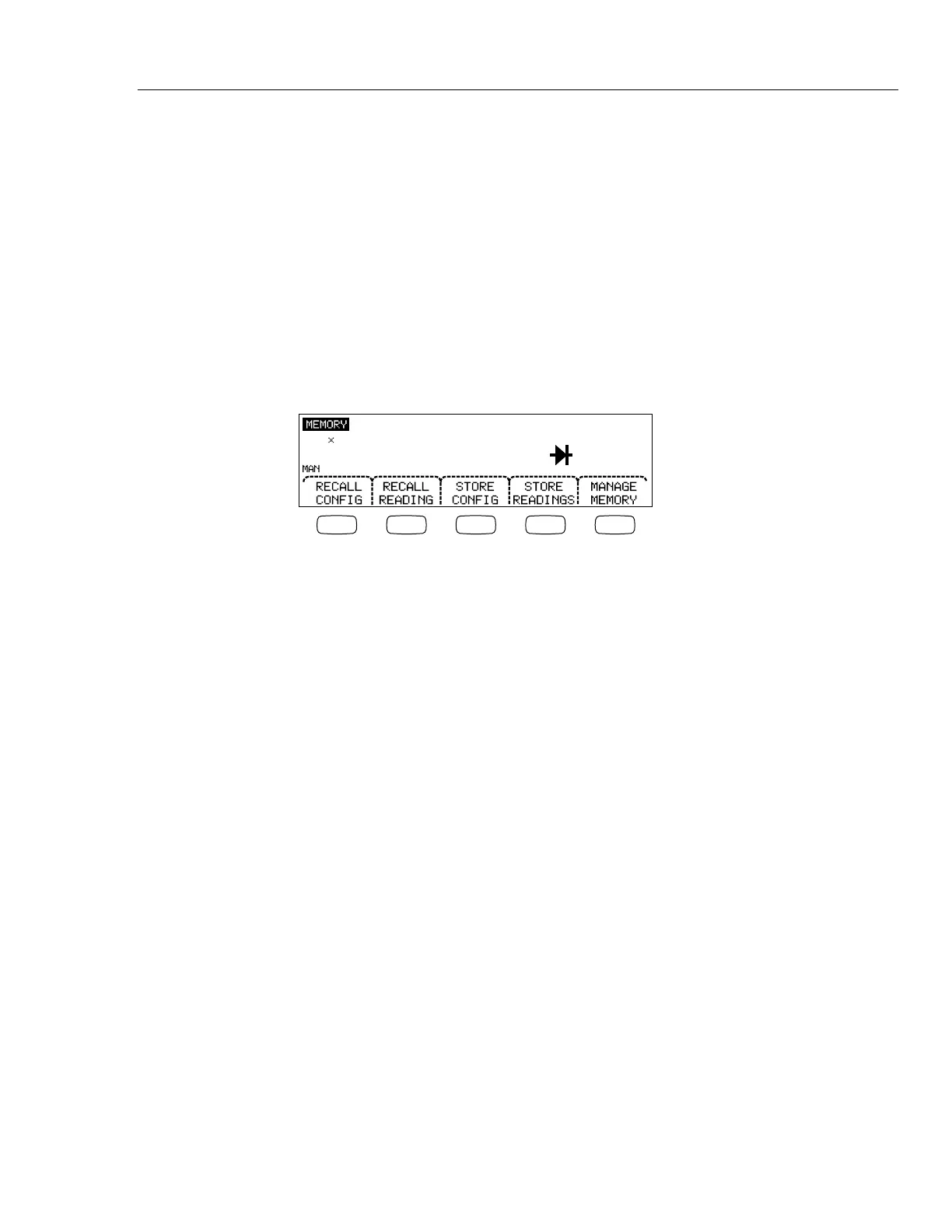

0.5993
+
F1 F2 F3 F4 F5
caw032.eps
2. Press the STORE READINGS soft key shown above.
3. If not already highlighted, press the INTERNAL MEMORY soft key.
4. Press the #SAMPLES soft key.
5. To adjust the number of samples, press either <-- or --> to select a digit.
With the desired digit selected, press the soft key labeled -- to decrement the digit
or ++ to increment the character. When 2
nd
Meas is enabled, each primary and
secondary reading is counted as a sample and appears in a separate line/row in the
readings file.
6. With the desired number of samples set, press the ENTER soft key to return to the
store readings menu.
7. Press the START soft key to initiate measurement storing. The START soft key
will change to STOP which can be pressed to stop the storage process. When the
requested number of samples have been stored, the soft key label changes back to
START. The MEM annunciator in the display also illuminates while readings are
being stored.
Note
For internal storage of readings, the number of readings stored will not
exceed 9999 readings regardless of the value set for number of samples.
