Model 2450
SourceMeter® Instrument User's Manual Section 2: Front-
panel overview
2450-900-01 Rev. E / August 2019 2-7
Swipe screen heading bar
The heading bar of the swipe screen contains the following options.

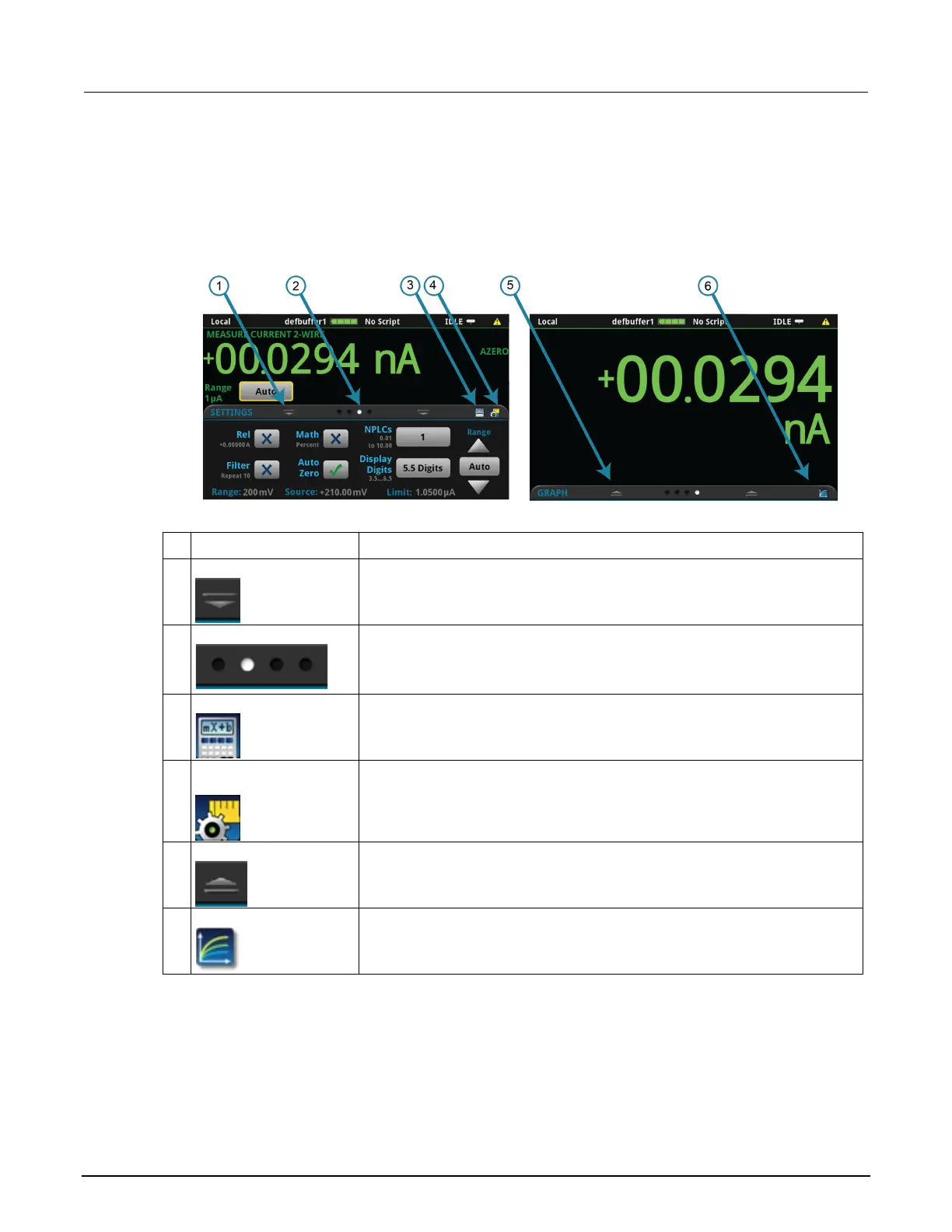

Figure 4: Swipe screens, maximized and minimized
# Screen element Description
1
You can swipe down to minimize the swipe screens.
2 Swipe screen indicator
Each circle represents one swipe screen. As you swipe right or left, a different
circle changes color, indicating where you are in the screen sequence. Select a
circle to move the swipe screen without swiping.
3
Select to open the CALCULATION SETTINGS menu.
4
shortcut
Select to open the MEASURE SETTINGS menu for the selected function.
5
Indicates that you can swipe up to display the swipe screen.
6
Select to open the Graph screen.
