Operating Information
TDS 200 Series Digital Oscilloscope Service Manual
2–3
Installation
Use only power cords designed for your oscilloscope. Use a power source that
delivers 85 to 275 VAC
RMS
, 47 to 63 Hz. Refer to page 10–9 for a list of
available power cords.
Use the power cord notch to help route the cord to the rear of the instrument and
avoid inadvertently disconnecting the power source.
Securing cable
Power cord
notch

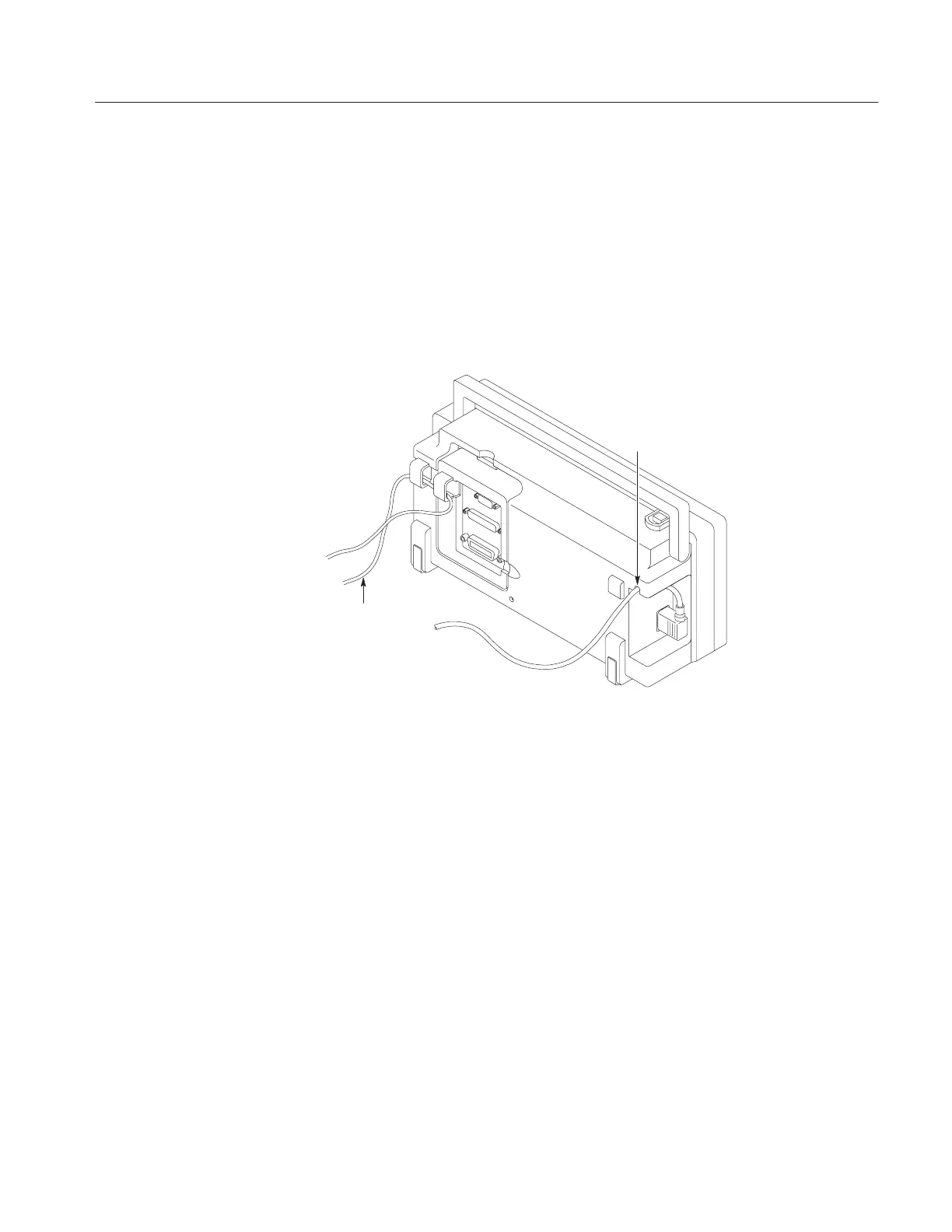

Figure 2–1: Routing the power cord and security cable
Use the built-in cable channels to secure both your instrument and extension
module to your location.
Power Cord
Security Loop
To Next Page
