Maintenance
TDS 200 Series Digital Oscilloscope Service Manual
6–31
3. Disengage the two securing tabs at the bottom of the board and slide the
board down and out of the internal chassis. Refer to Figure 6–21
Internal chassis
Front panel module

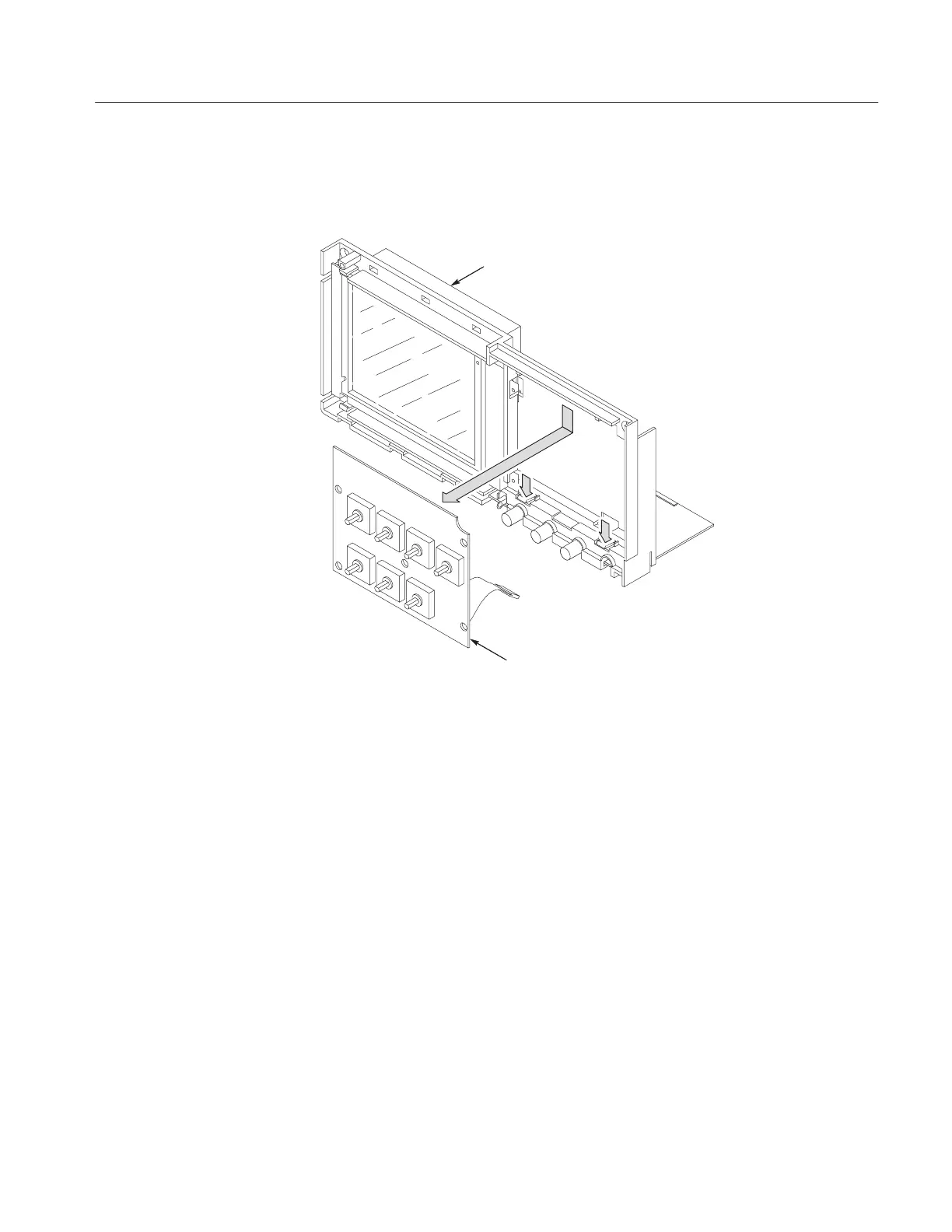

Figure 6–21: Removing the front panel module
