Tenda V300 User Manual

64

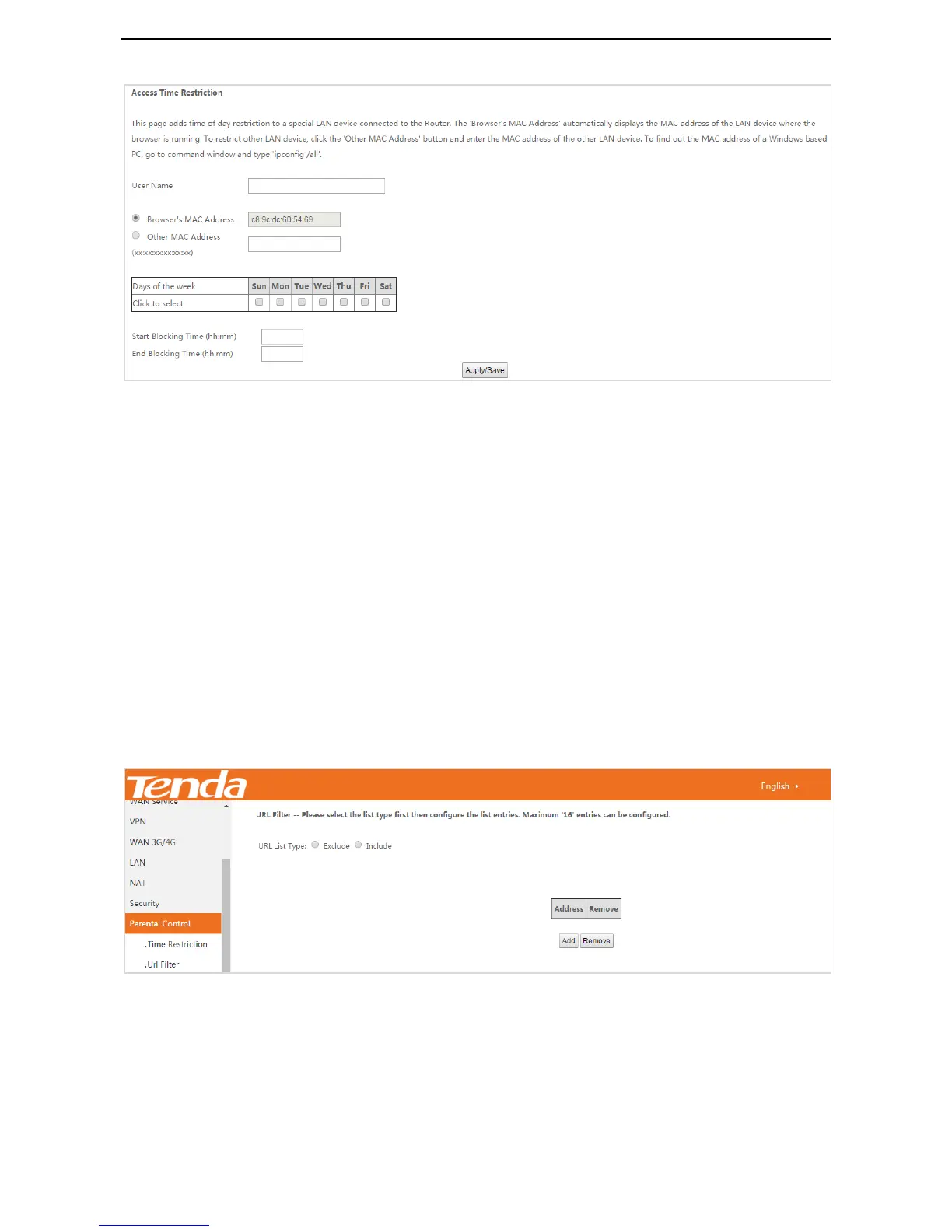

Step 2 User Name: Specify a user name for this rule. It must be 1-32 characters, and not including space.
Step 3 Select Browser’s MAC Address if the rule is applied for the computer where the browser is running. If
not, select Other MAC Address, and enter the MAC address of a computer that the rule is applies for.
Step 4 Days of week: Click to select the days of the week during which the rule takes effect.
Step 5 Start Blocking Time/End Blocking Time: Specify time of day restriction for the rule. Within this
specified time length of the day, this LAN device is blocked from internet. For example, if you set start
Blocking Time to 23:00, and End Blocking Time to 06:00, the device this rule is applied for cannot
access the internet during 23:00~06:00.
Step 6 Click Apply/Save.
--End
4.8.2 URL Filter
URL Filter adds specific URL restrictions to a special LAN device
To add a URL Filter rule, perform the following procedure:
Choose Advanced >Advanced Setup > Parental Control >URL Filter to enter the configuration page.
Step 1 Select Exclude or Include.
 Exclude indicates that the URLs added to the list are not allowed to visit.
 Include indicates that only the URLs added to the list are allowed to visit.
Step 2 Click Add.
Step 3 Enter a URL. For example, Set URL Address to www.google.com.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
