Tenda V300 User Manual

75

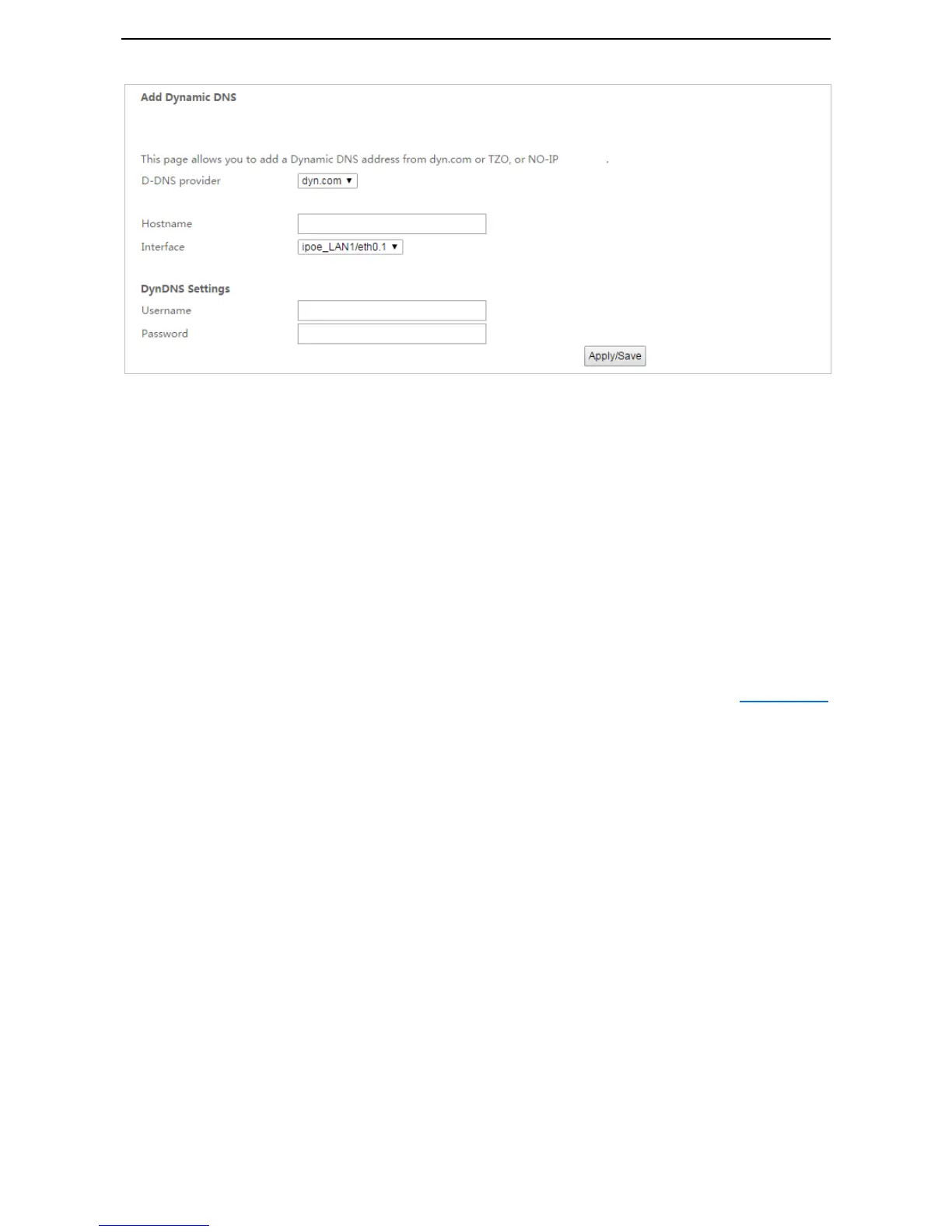

Step 2 D-DNS provider: Specify a DDNS service provider. The supported service providers include dyndns.org,
oray.com.
Step 3 Hostname: Specify the DDNS domain name register on a DDNS service provider's website.
Step 4 Interface: Specify a WAN connection interface.
Step 5 Username/Password: Specify the user name and password registered on a DDNS service provider's
website for logging in to the DDNS service.
Step 6 Click Apply/Save.
--End
4.14 DSL
DSL parameter configurations must be supported by ISP to take effect. Actual parameters (refer to Statistics-xDSL)
resulted from the negotiation between your router and ISP. Wrong configurations may fail your Internet access.
The best DSL configurations are the factory defaults. Only change them if you are instructed by your ISP or our
technical staff when your modem router fails to negotiate with ISP in DSL (ATM) mode. Usually, this failure can be
identified and confirmed if the ADSL LED on the device keeps displaying a slow or quick blinking light.
Choose Advanced > Advanced Setup > DSL to enter the configuration page.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
