Tenda V300 User Manual

89

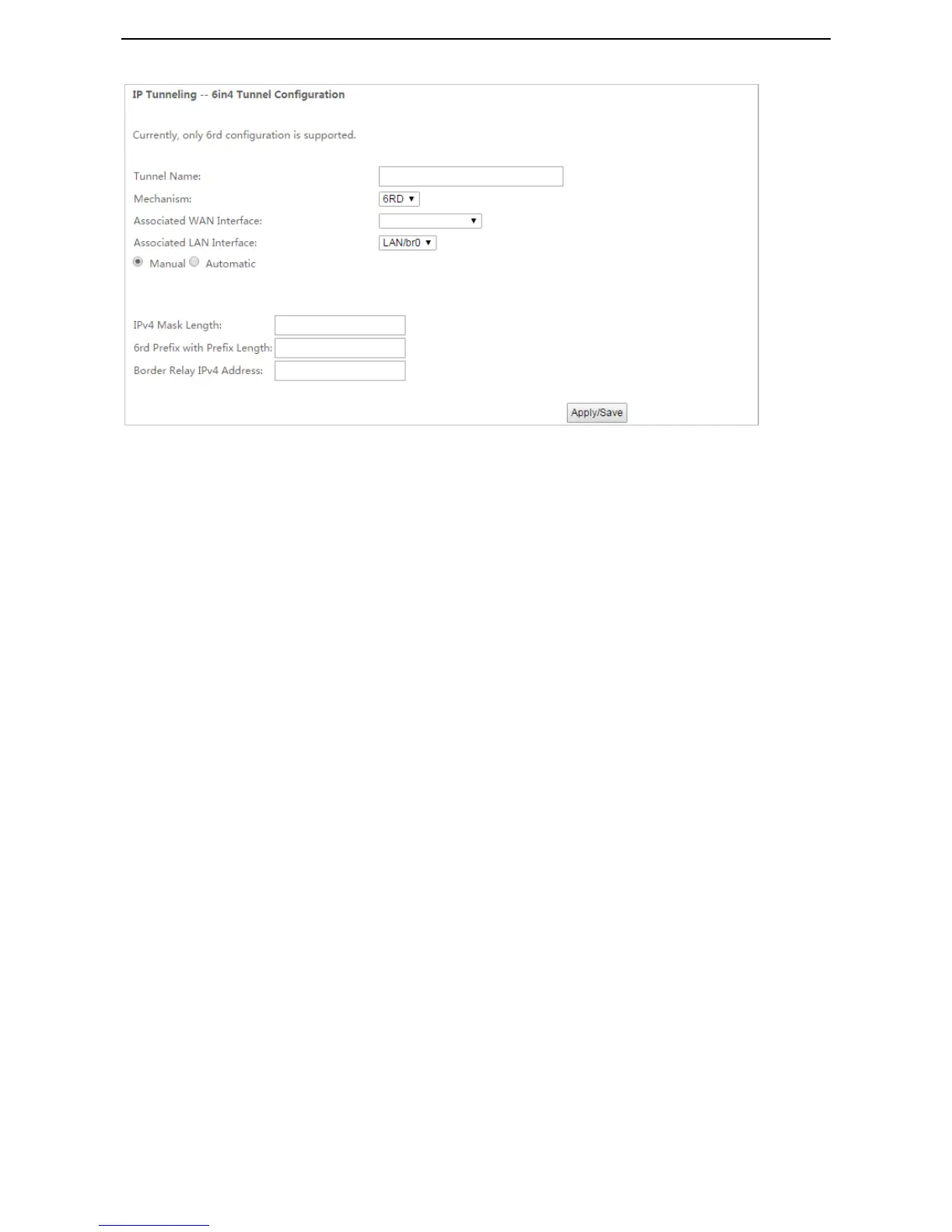

Step 1 Click Add.
Step 2 Tunnel Name: Tunnel Specify a tunnel name.
Step 3 Mechanism: It specifies the 6in4 tunnel implement mechanism. The modem router only supports 6RD.
Step 4 Associated WAN Interface: Specify an associated WAN interface for the 6in4 tunnel. The WAN
interface is required to use IPv4 protocol only.
Step 5 Associated LAN Interface: Specify an associated LAN interface for the 6in4 tunnel.
Step 6 Select the type of obtaining border relay address: manual or automatic.
 Manual: Manually set a 6RD-BR address.
 Automatic: Automatically obtain a 6RD-BR address from upstream device. If you select Automatic, skip step
7 - 9.
Step 7 IPv4 Mask Length: Specify the IPv4 mask length.
Step 8 6rd Prefix with Prefix Length: Specify the 6rd prefix with prefix length.
Step 9 Border Relay IPv4 Address: Specify the border relay IPv4 address of WAN.
Step 10 Click Apply/Save.
--End
4.18.2 IPv4inIPv6
IPv4inIPv6 is an Internet interoperation mechanism allowing Internet Protocol version 4 (IPv4) to be used in an
IPv6 only network. 4in6 uses tunneling to encapsulate IPv4 traffic over configured IPv6 tunnels.
Choose Advanced > Advanced Setup > IP Tunnel > IPv4inIPv6 to enter the configuration page.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
