Thytronic NG10 User Manual

SETTING AND COMMISSIONING
115
NG10 - Manual - 04 - 2022
TEST
The operational tests with command of the selected output relays may be activated.
By means of Up or Down buttons it is possible to browse the main menu till the “TEST” message; to
enter you must press the Right button.
[1]
The display message “Test state: OFF” shows the test state (OFF or test in progress).
• Test K2
• Test K3
• Test K4
• Test K5
• Test K6
As example, to start the test of K1, the following procedure must be issued:
• Select the Start test menu “Start test >>”.
• Press the Right button to start; the test in progress status is highlighted by activation of all LEDs,
• Come back by pressing the Left button and select the relay to be tested by means the Up or Down
buttons until the message “Test K1 >>” is displayed.
• Press the Right button to start the test.
• To terminate the test, it is necessary to select the “Stop test >>” message and press the
Right button to end the test. In any case the test will be automatically terminated after a delay of
one minute.

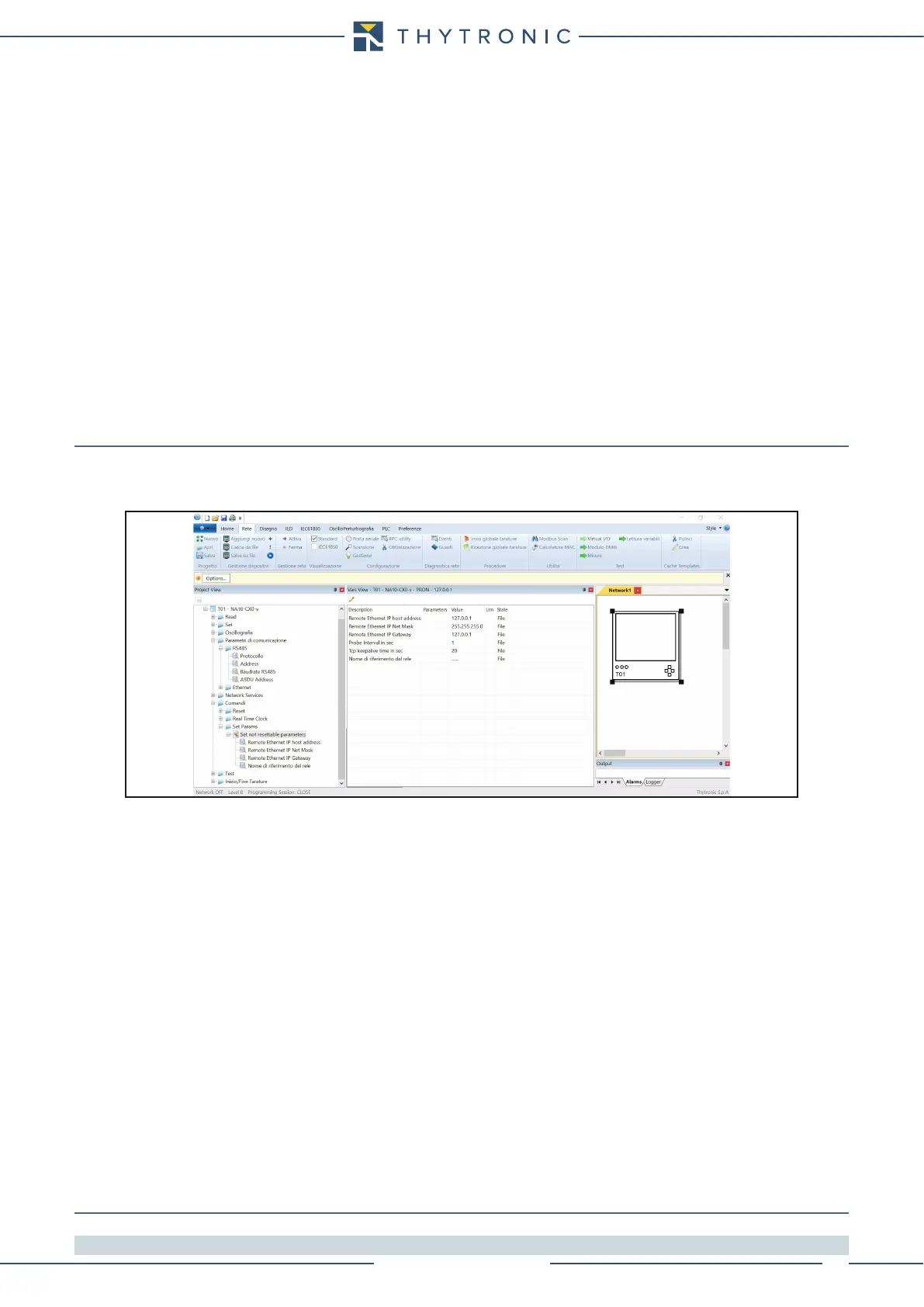

COMMUNICATION
Inside the COMMUNICATION menu it is possible to read/modify the setting data of the RS485 Proto-
col and Ethernet parameters.
By means of Up or Down buttons it is possible to browse the main menu till the “RS485 Protocol
>>” or “Ethernet parameters >>” message; to enter you must press the Right button.
As example, to select the address 12 for the ModBus protocol, the following procedure must be issued:
• Select the Communication menu “COMMUNICATION >>”.
• By means Down button select the “RS485 Protocol >>”.
• Press the Right button to enter; the following message is displayed:
“Protocol MODBUS”
“Address 1”
“9600 baud”
• Start the procedure to effect a change explained in the Setting modifying (SET) paragraph:
• Press the Enter button for a few seconds; the modification in progress status is highlighted by the
both START and TRIP flashing.
• Move the cursor over the parameter intended for change using the Enter button, (in the example
on the 1 address),
• Change the parameters by means the Up (increment) button (up to 12 address),
• Press the Enter button to move the cursor over the last parameter in the display,
• Press the Enter button once again; the cursor and the LED TRIP turn off (the LED START keeps
flashing),
• Press the Enter button for a few seconds; new message appears: “Conrm settings?”
• Answer to the message ENTER: YES to confirm changes or RESET: NO to abort.
The end of the LED blinking points out the end of procedure.
Note 1 Instantly all the relays are switched in rest state, including relays programmed as “normally energized”
