Thytronic NG10 User Manual

FUNCTION CHARACTERISTICS
72
NG10 - Manual - 04 - 2022
4.5 CONTROL AND MONITORING
Logical block - BLOCK1
To the purpose to block off the trip of one protection element, the logical block function (Block1) may
be matched with binary inputs.
[1]
The binary-matching may be set inside the Inputs submenu; to the purpose the Block1 parameter
must be selected for INxmatching (x=1, 2)
A protective element, where the logical block is enabled, is blocked off whenever the given input is
ON.
For a given protective element, the logical block state is reading available (ThyVisor and communi-
cation interfaces); it is ON the following condition are at the same time observed:
• Binary input ON,
• Element start ON,
• Element Trip OFF.
The logical block it is not liable for any inhibition time-out, so the protective element is disabled for
the whole time when the input is ON.
[2]
Note 1 In the following treatment, the logical block is defined as “Logical block” or “Block1”
Note 2 The Block 1 signal forces a timer reset
Blocco_L.ai
RESET
Operate time
0T
Generic protective element
Measure
Input
TRIPPING MATRIX (LED+RELAYS)
BLK1xxx
Operate time
Threshold
Start
Start
Trip
Trip
&
&
&
Enable (ON≡ Enable)
Block1 input (ON≡ Block)
Customized Block1 info
Block1 info (internal state)
xxxBLK1
Block1
Block1
Binary input INx
T 0
Logic
INx t
ON
INx t
ON
INx t
OFF
T0
n.o.
n.c.
INx t
OFF

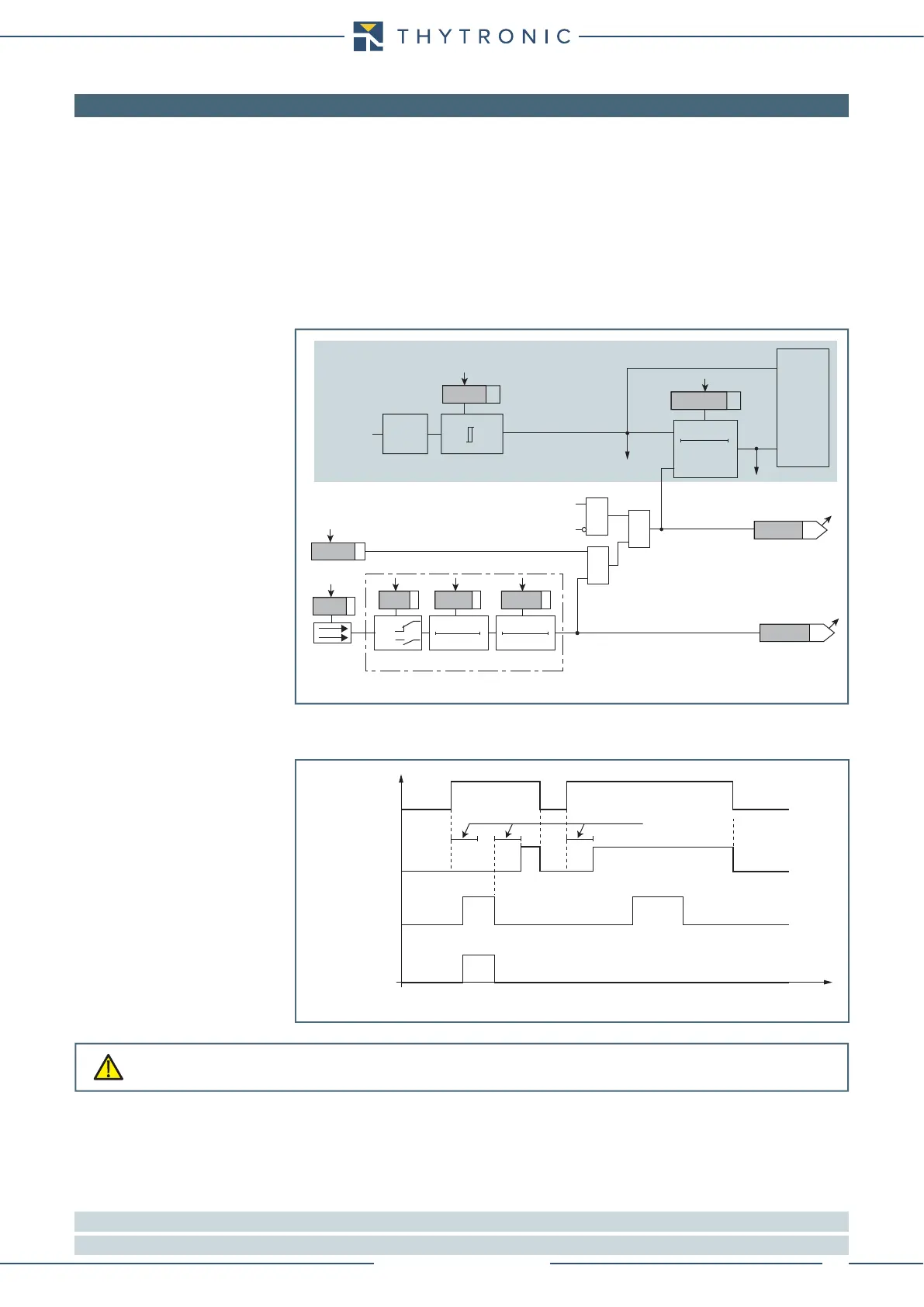

General logic diagram of the logic block - Block1
Start
Block1 (input)
Block1 (output)
Trip
Operate time
t
Timers-Block1.ai
Logic block timers - Block1
Activation of any binary input assigned to logic block (Block1) function effects a block of all the
protective elements where the logic block is enabled
CAUTION
