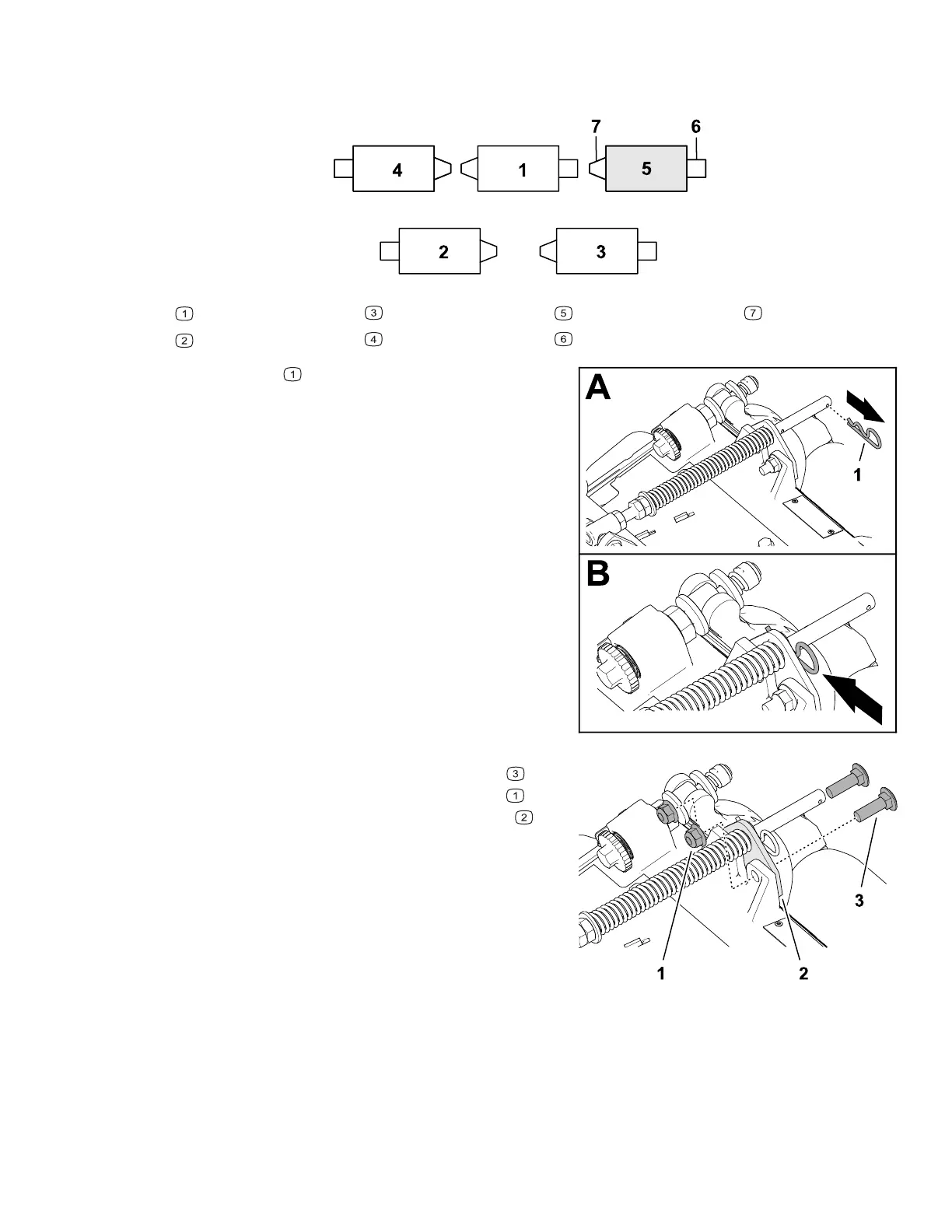

Installing the Hose Guide
Cutting Unit 5
G410309
Cutting unit 1
Cutting unit 2
Cutting unit 3
Cutting unit 4
Cutting unit 5
Reel motor
Weight
G410292
1. If the hairpin is installed in the rear hole of
the compensation-spring rod, remove the
hairpin and insert it in the hole next to the
bracket.
G410293
2. Remove the 2 flange locknuts (3/8 inch)
and 2 carriage bolts (3/8 x 1-1/4 inches)
that secure the turf-compensator bracket to
the cutting-unit frame.
3464-482A Page 3–5 Setup: Installing the Cutting Units
