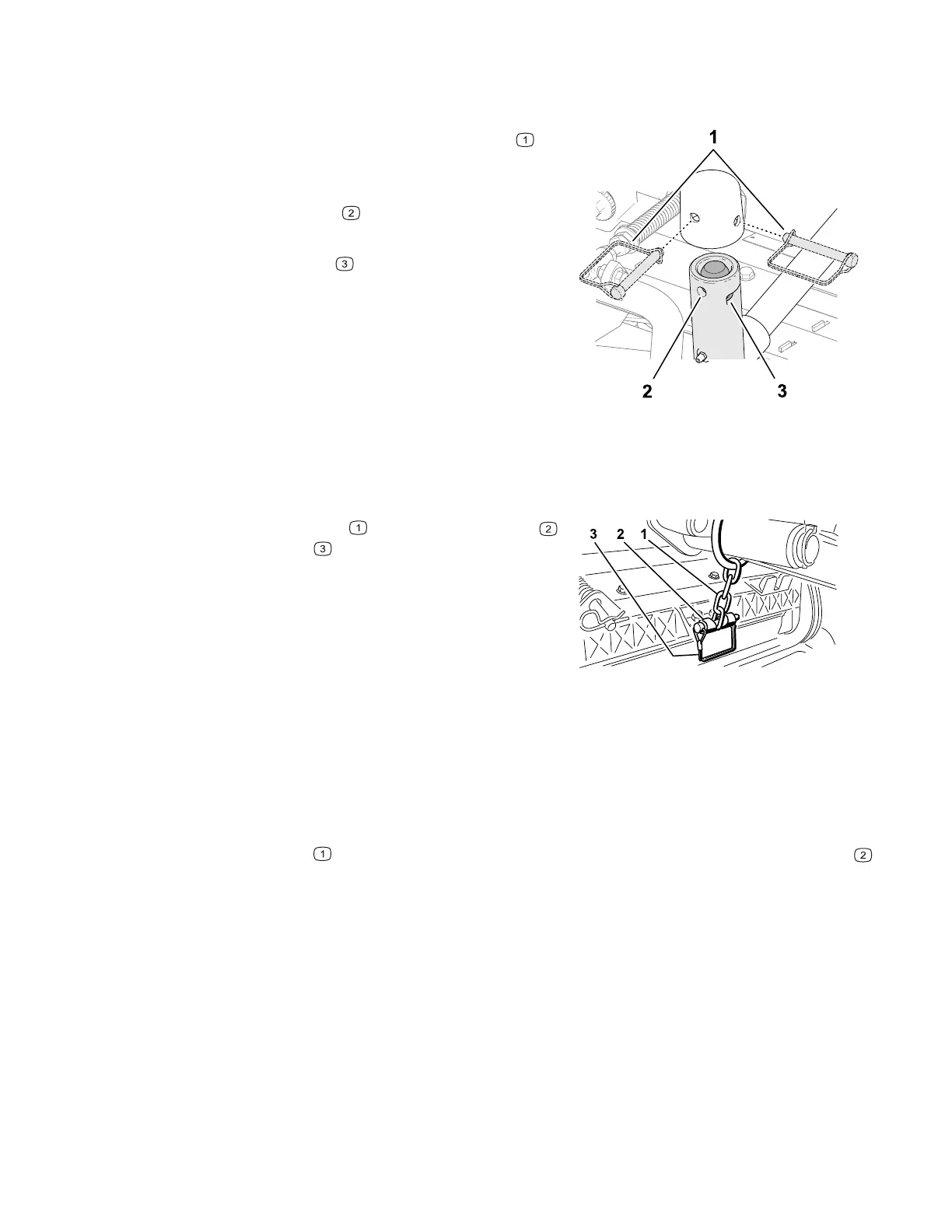

Locking the Cutting-Unit Pivot for Cutting Grass on a Hill
Side
G437965
Lock the cutting-unit pivots with snapper pins to
prevent the cutting units from rotating downhill
when cutting across the face of a hill.
Note: Use the hole in the pivot yoke to lock
the cutting unit.
Note: Use the slot for a steering cutting
unit.
Installing the Cutting Unit Lift-Arm Chains
G402673
Secure the lift-arm chain to the chain bracket
with the snapper pin .
Note: Use the number of chain links described
in the cutting unit Operator's Manual.
Installing the Reel Motors
1. Grease the reel-motor spline shaft.
2. Oil the reel motor O-ring and install it onto the motor flange.
3. Install the motor
by rotating it clockwise so that the motor flanges clear the bolts .
Setup: Installing the Cutting Units Page 3–10 3464-482 A
