Jacking Point Locations
Note: Support the machine with jack stands whenever you work under the machine.
Use the following as machine-lift points:
• Front—the jack brackets of the front-axle tube.
• Rear—the rear-axle tube.

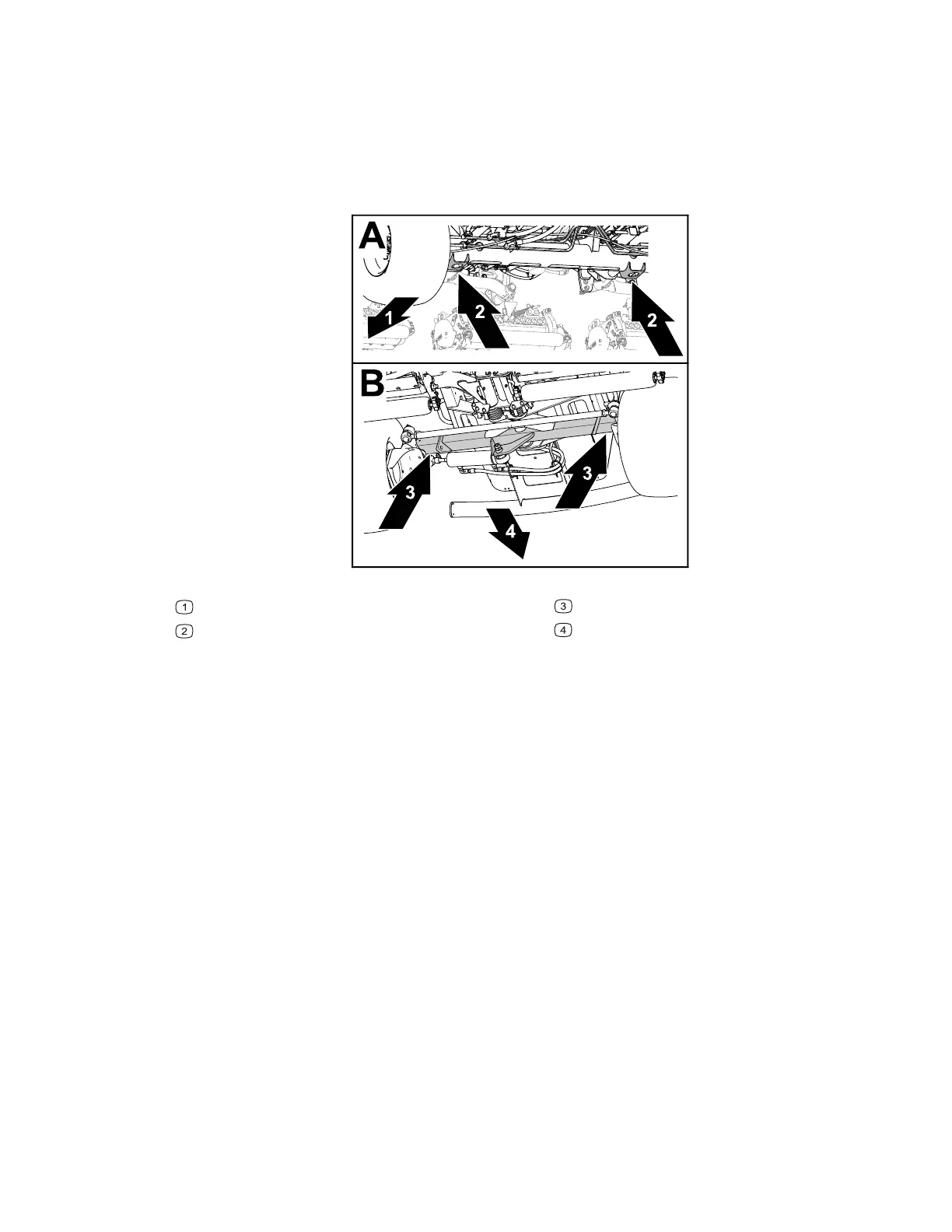

G437877
Front of the machine
Jack brackets (front-axle tube)
Rear-axle tube
Back of the machine
Lubrication
Greasing the Bearings and Bushings
The machine has grease fittings that must be lubricated regularly. Dusty and dirty operating
conditions could cause dirt to get into the bearings and bushings, resulting in accelerated
wear. Lubricate the grease fittings immediately after every washing, regardless of the
interval specified.
1. Prepare the machine for maintenance.
2. Grease all machine fittings with No. 2 lithium grease.
Maintenance: Pre-Maintenance Procedures Page 6–8 3464-482 A
