ELECTRICAL SYSTEMS
6 - 10 260 Series Tractor Service Manual
6. Then move the switch button to the “down”
position. If there is continuity, the switch is
operating properly (Figure 236).

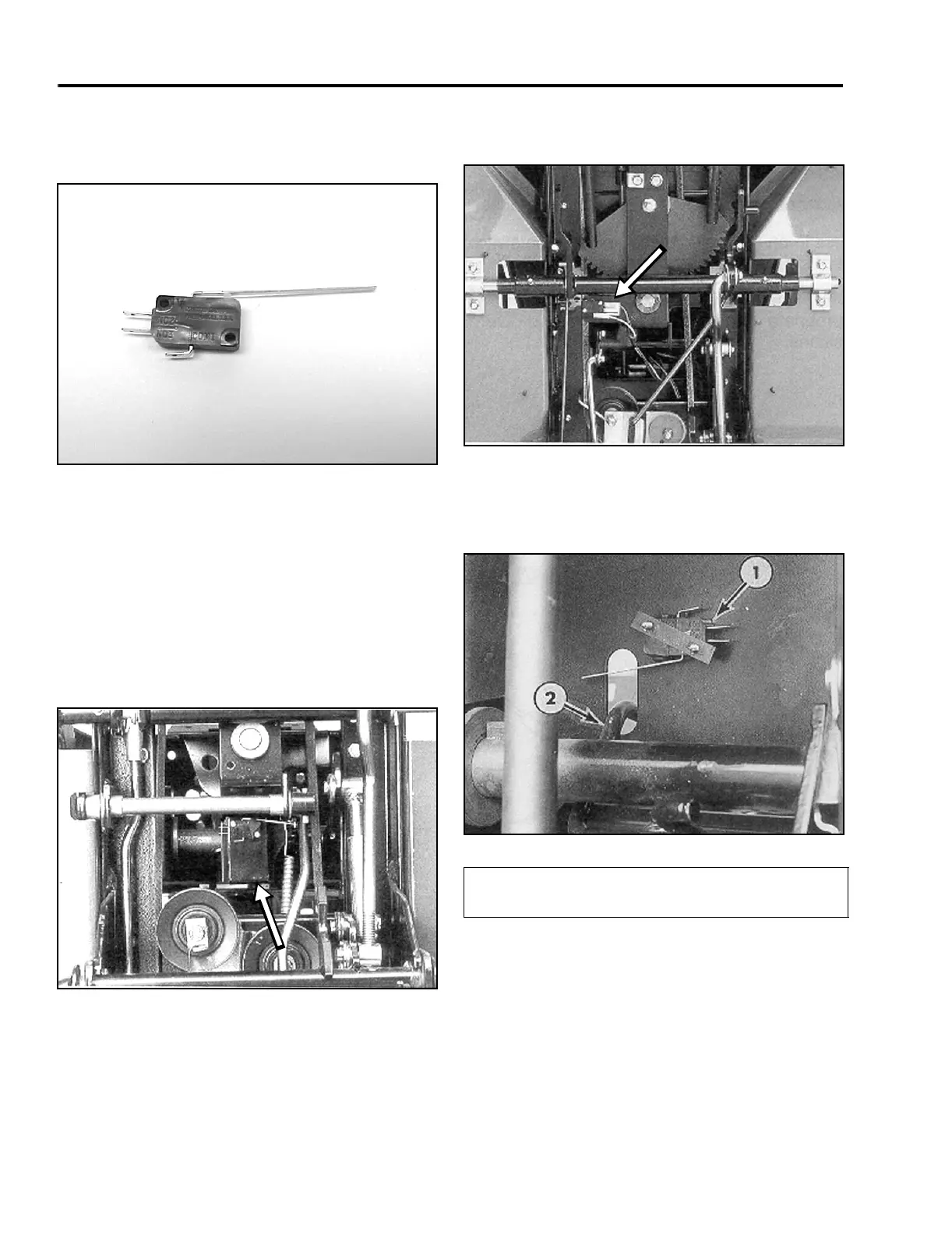

Figure 236
MVC-677X
Location
There are several different microswitch locations on
260 Series Lawn and Garden Tractors.
1999 and prior model hydrostatic models have the
brake switch located on the bottom side of the steering
sector mount (Figure 237). The brake linkage activates
it. Note: On units with cruise control, there are two
switches mounted together.
Figure 237
2-26
The brake switch on gear model tractors is located
under the frame, under the brake pedal (Figure 238).
Figure 238
2-27
The parking brake switch is located on the front side of
the lower console on both hydro and gear drive tractors
(Figure 239).
Figure 239
2-28
(1) Parking Brake Switch
(2) Parking Brake Lever
