CHASSIS
2 - 12 260 Series Tractor Service Manual

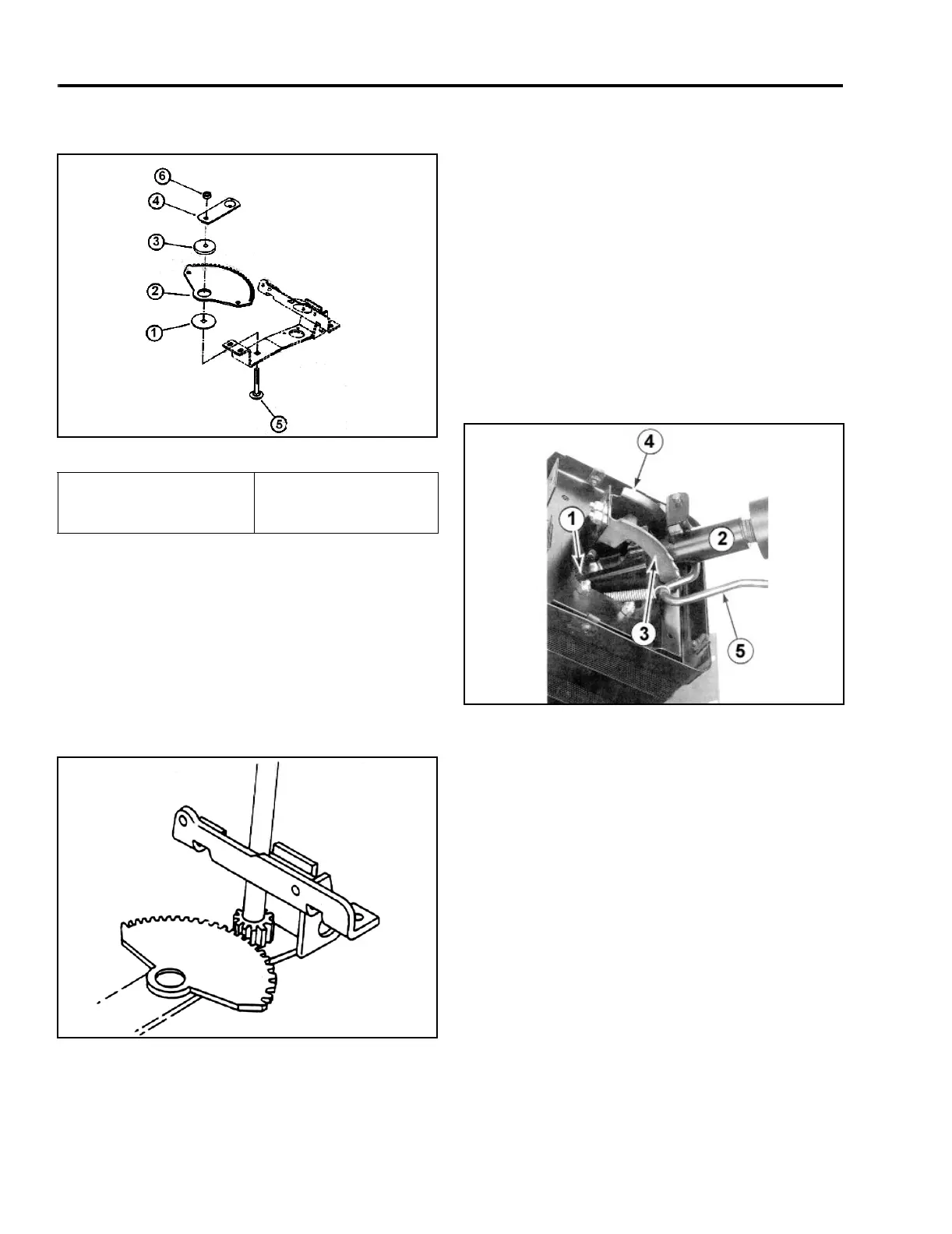

Sector Gear Assembly
Figure 41 6-28
1. Install the bearing washer, 1, on the mounting
bracket (Figure 41).
2. Place the sector gear, 2, on top of the bearing
washer with the teeth facing the rear of the tractor
(Figure 41).
3. Center the steering shaft with the sector gear
(Figure 42). Make sure the steering wheel is
centered.
Figure 42
6-8
4. Insert the cam bushing, 3, into the bore of the
sector gear (Figure 41).
5. Place the locking plate, 4, on the cam bushing
(Figure 41).
6. From the bottom, insert the carriage bolt, 5,
through the bearing washer, cam bushing, and the
locking plate. Secure the bolt with the locknut, 6
(Figure 41).
7. Adjust the steering gear, refer to “Steering
Backlash Adjustment” on page 2 - 6.
8. Fasten both steering arms onto the sector gear.
Check wheel alignment and toe-in.
Tilt Steering
Figure 43 6-34
Description
The tilt steering assembly is made up of the following
components (Figure 43):
1. Universal joint.
2. Steering column (bushing mounted).
3. Detent bracket (left side).
4. Support bracket (right side).
5. Spring-loaded control handle.
(1) Washer Bearing
(2) Sector Gear
(3) Bushing
(4) Locking Plate
(5) Carriage Bolt
(6) Locknut
