260 Series Tractor Service Manual 3 - 17
TUFF TORQ TRANSAXLE
2. If adjustment is needed, unbolt the hydro control
rod where it connects to the froward/reverse
pedal. The location is under the tractor on the
inside of the frame (Figure 112).

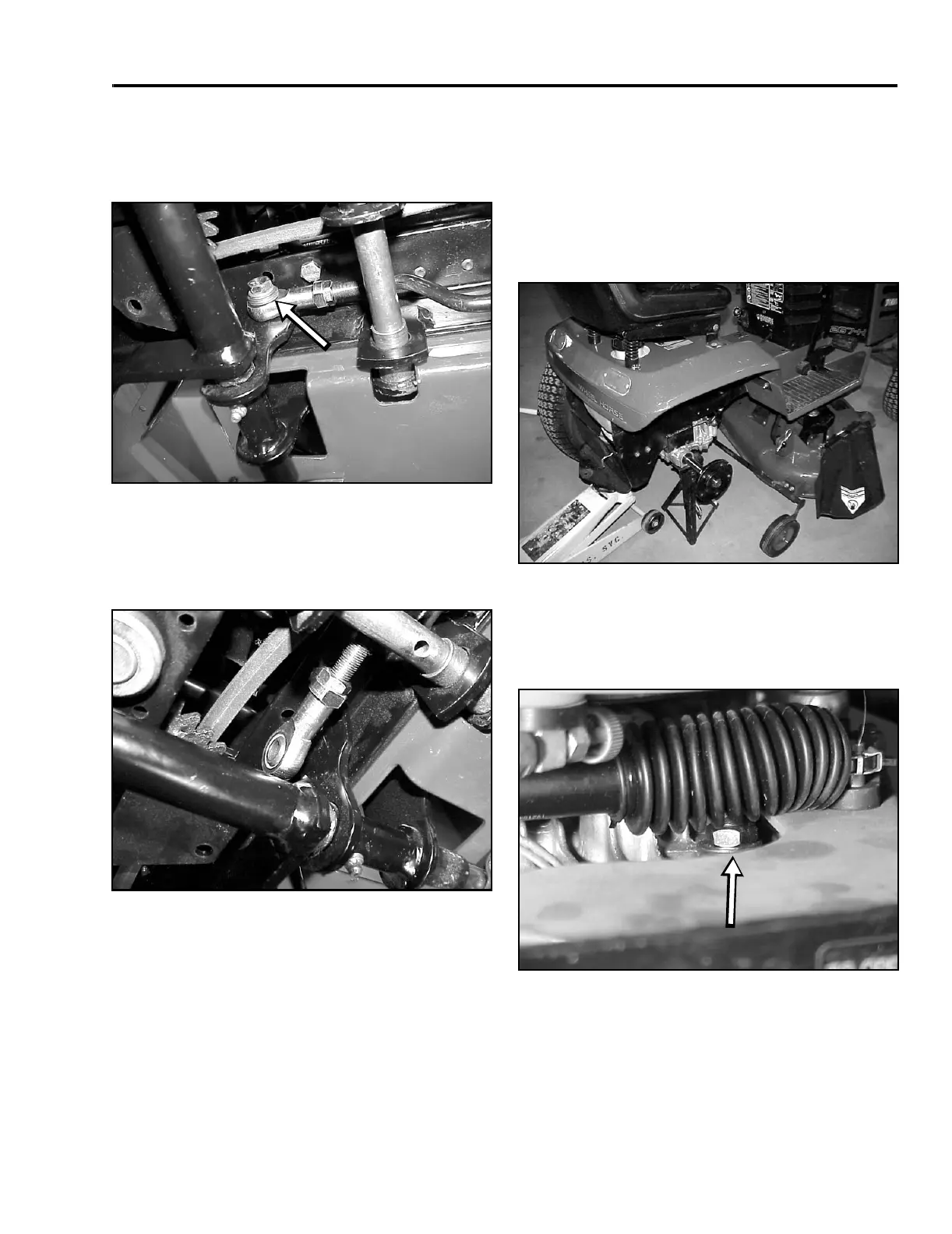

Figure 112
MVC-191X
3. Loosen the jam nut and turn the rod end to
achieve 1¼” (31.74mm) gap between the footrest
and the back side of the forward/reverse control
pedal (Figure 113).
Figure 113
MVC-184X
Neutral Adjustment – Tuff Torq
Transaxle
You must perform a neutral adjustment whenever a
tractor creeps in neutral, or whenever a new or rebuilt
transaxle is installed in the tractor.
Before making a neutral adjustment, the transaxle
must be warmed up, usually 5 to 10 minutes. Steps to
perform neutral adjustment:
1. Jack-up and support the right rear end of the
tractor, allowing enough clearance to remove the
right rear tire. Make sure the left rear tire stays on
the ground (Figure 114).
Figure 114
MVC-379X
2. Remove the access panel at the rear of the tractor
to gain access to the neutral adjusting eccentric,
which is located on the top right-hand side next to
the gas damper arm (Figure 115).
Figure 115
MVC-383X
3. Disconnect the seat switch and attach a jumper
wire across the terminals. This enables the tractor
to run without an operator in the seat.
4. Start the tractor and set the engine speed at ¾ to
full throttle.
