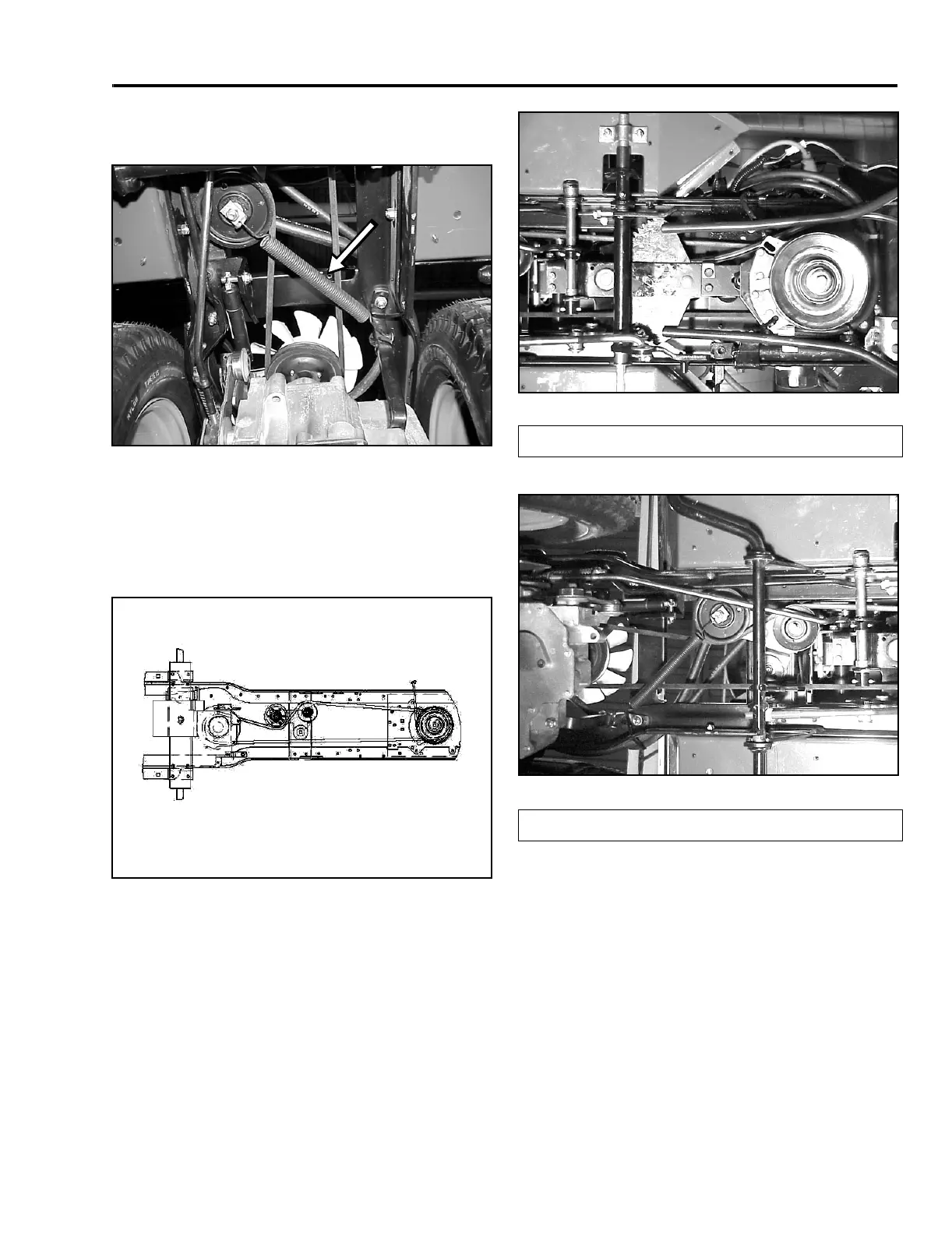

260 Series Tractor Service Manual 4 - 15
HYDRO-GEAR TRANSAXLE
14. Reconnect the idler spring to idler assembly
(Figure 160).
Figure 160
MVC-194X
15. Reconnect the electric clutch wire.
16. Check the routing of the drive belt.
Belt Routing Diagram
Figure 161
belt diagram hyd
Figure 162 MVC-198X
Figure 163 MVC-199X
17. Test the tractor to make sure all the safety devices
operate properly.
Front portion of the tractor
Rear portion of the tractor
