CHASSIS
2 - 16 260 Series Tractor Service Manual

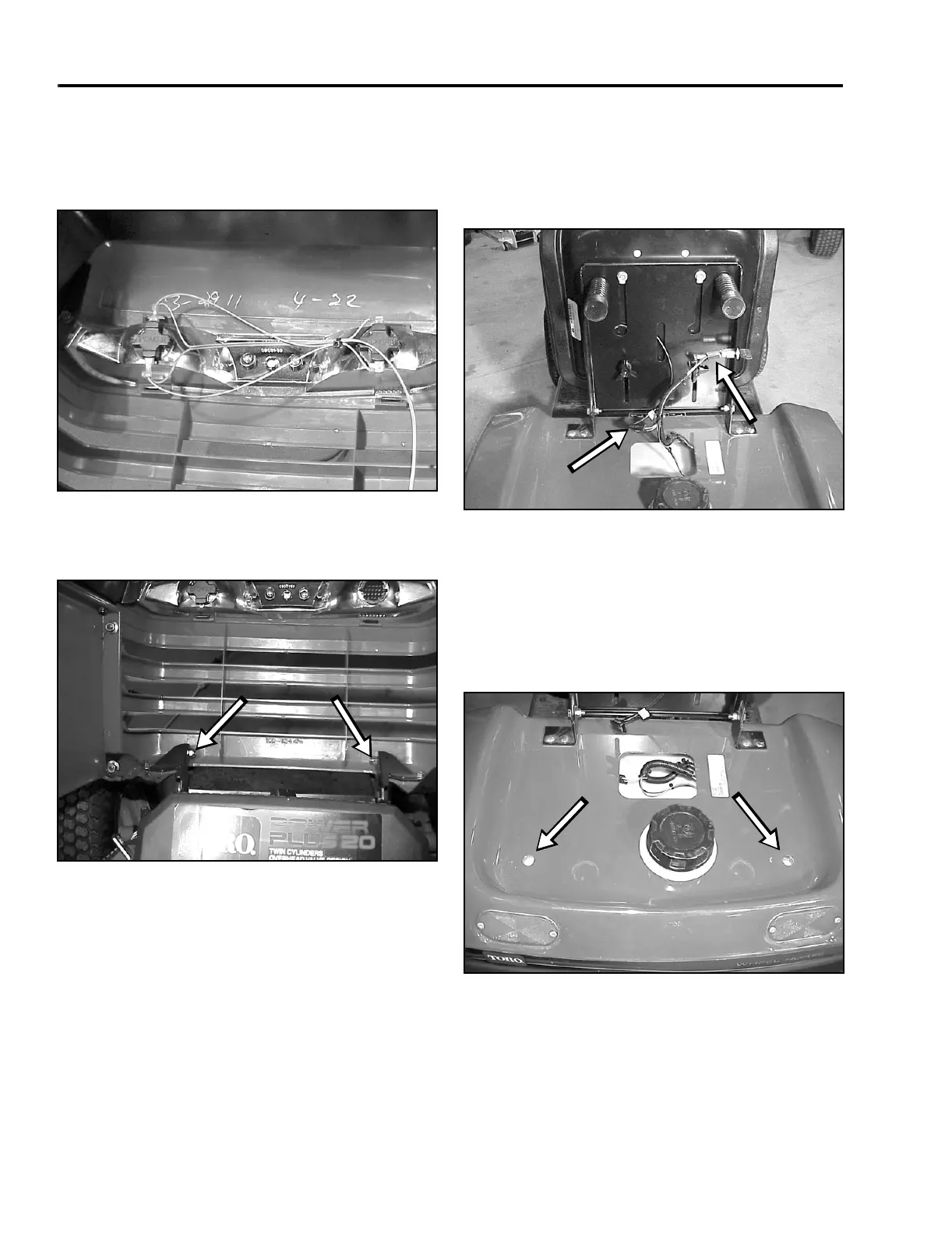

Hood Removal
1. Disconnect the headlight wiring harness (Figure
49).
Figure 49
MVC-116X
2. Remove the bolts and nuts located at the bottom
of the hood (Figure 50).
Figure 50
MVC-118X
3. Reinstall the hood in reverse order.
Seat and Fender Removal
1. Unplug the seat switch, and if equipped with
KeyChoice™ Reverse operating system, unplug
the KeyChoice™ switch (Figure 51).
Figure 51
MVC-121X
2. To make it easier to remove the fasteners for the
fender assembly, jack the tractor up in the rear
and remove both rear tires.
3. Remove the two rear carriage bolts, washers, and
nuts located in the rear of the fender assembly
(Figure 52).
Figure 52
MVC-122X
