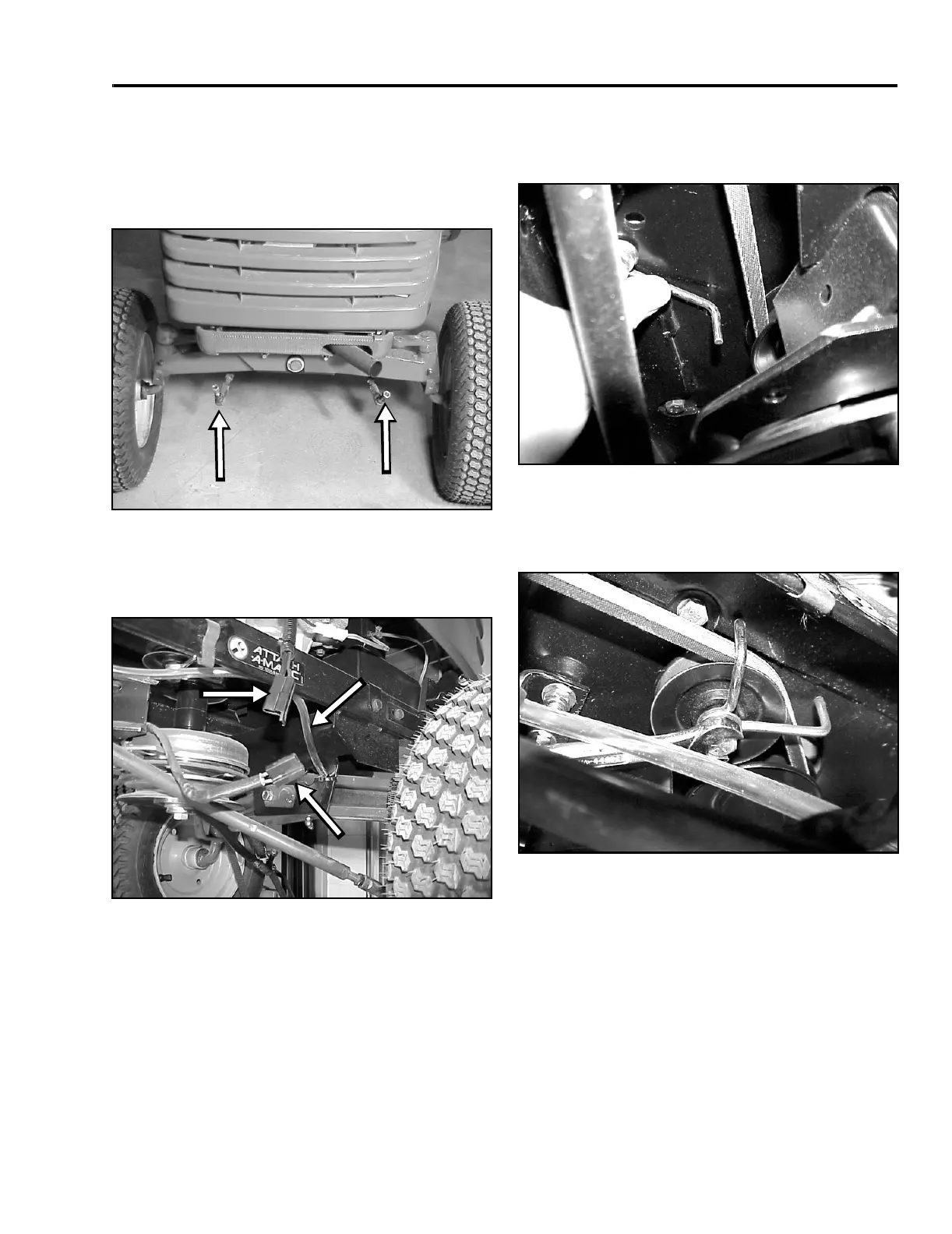

260 Series Tractor Service Manual 5 - 7
GEAR DRIVE
Belt Replacement – Gear Drive
1. Position the steering wheel so the tie rod ends
clear the front axle and remove them from the
steering arms (Figure 188).
Figure 188
MVC-263X
2. Disconnect the electric PTO (Power Take Off)
wiring harness and remove the battery drain tube
from the tie strap (Figure 189).
Figure 189
MVC-264X
3. Loosen the belt guide located on the left side of
the engine drive pulley and move away from the
drive belt (Figure 190).
Figure 190
MVC-266X
4. Loosen and move the belt guide located on the
idler pulley on the right side of the engine drive
pulley (Figure 191).
Figure 191
MVC-267X
