260 Series Tractor Service Manual 2 - 19
CHASSIS
Dial-A-Height Linkage

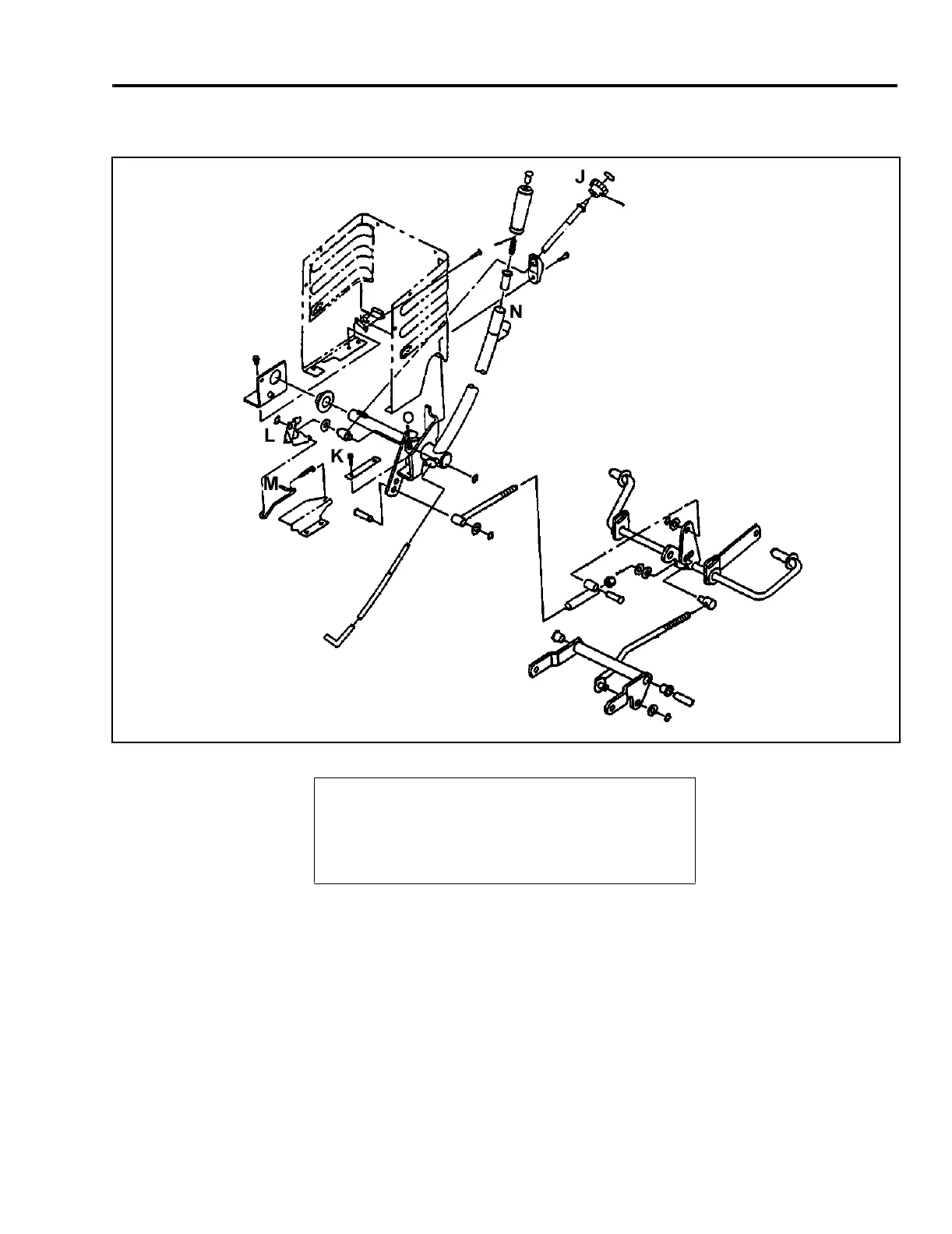

Figure 58 7-2
The Dial-A-Height knob, J, is threaded through a
trunnion, K. A bracket, L, is attached to the trunnion
and the spring-loaded Dial-A-Height indicator rod, M.
The trunnion is also connected to the lift lever
weldment at point N.
As the Dial-A-Height knob, J, is adjusted through the
trunnion, K, the trunnion rotates the bracket, L. This
moves the Dial-A-Height rod, M.
Note: The Dial-A-Height rod is visible through the
center access plate between the fender and the hood
console.
At the same time, the trunnion rotates the cross shaft at
point, N, on the lift lever weldment, controlling the
distance the linkage will lower.
(J) Knob
(K) Trunnion
(L) Plate-HOC Gauge Bracket
(M) Rod-HOC Indicator Rod
(N) Lift Lever Weldment
