TUFF TORQ TRANSAXLE
3 - 4 260 Series Tractor Service Manual

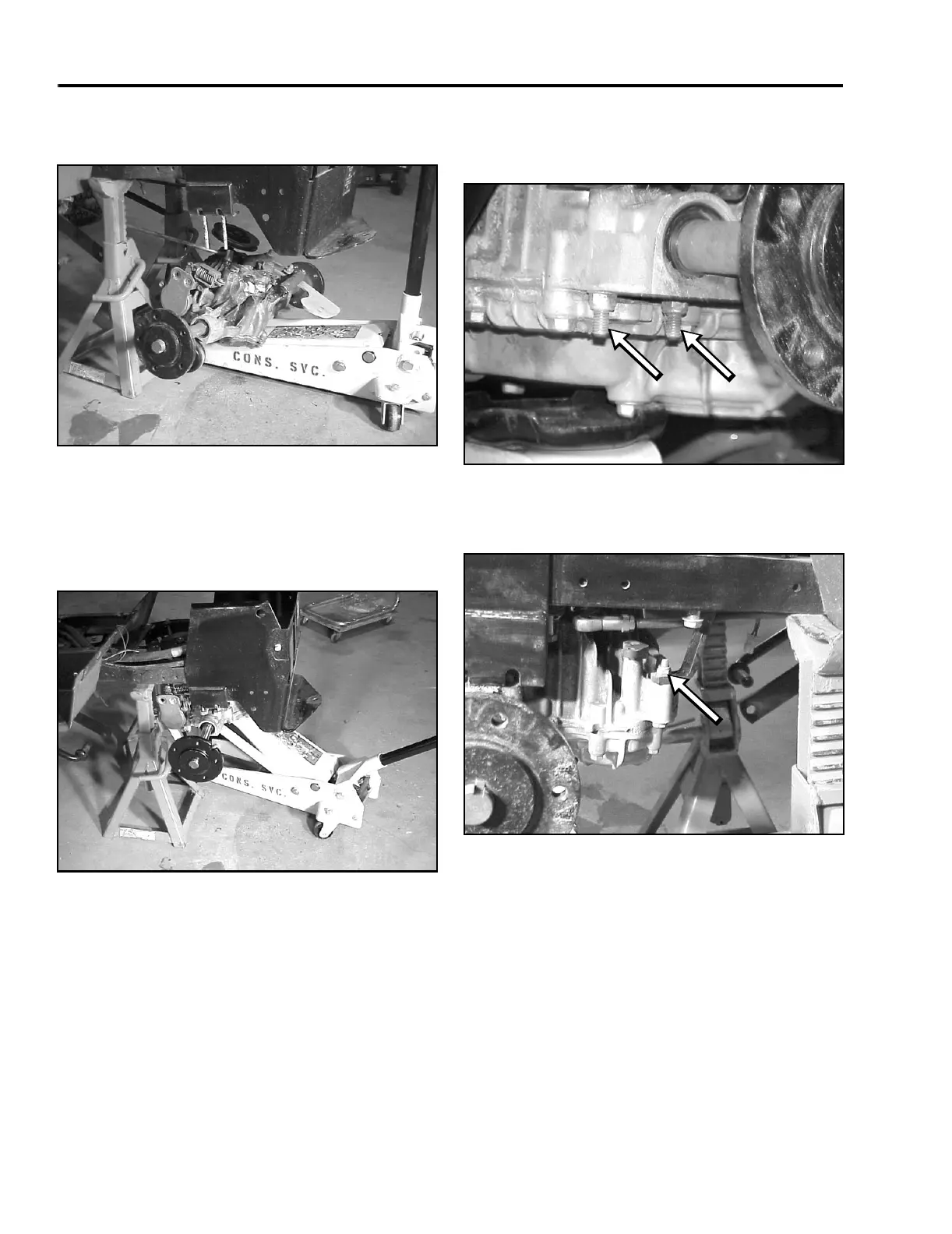

13. Slowly lower the transaxle out of the frame (Figure
73).
Figure 73
MVC-333X
Installation - Tuff Torq Transaxle
1. Raise the transaxle up toward the frame (Figure
74).
Figure 74
MVC-334X
2. Install the 4 washers and nuts to the U-bolts
retaining the two axle shafts to the frame and
tighten (Figure 75).
Figure 75
MVC-331X
3. Install the bolt, washer, and nut for the torque
strap and tighten (Figure 76).
Figure 76
MVC-330X
