260 Series Tractor Service Manual 2 - 1
CHASSIS

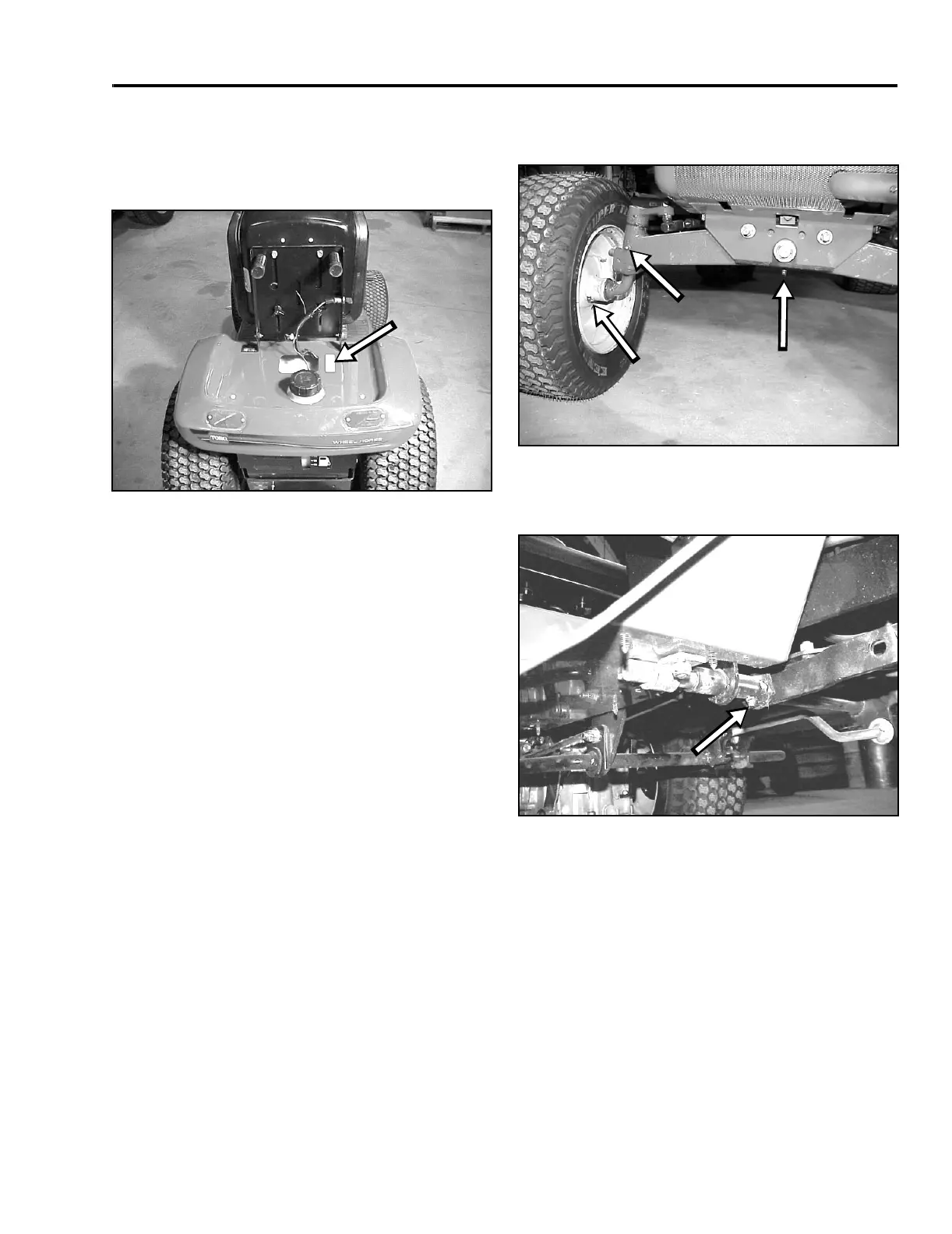

Model and Serial Number Location
The model and serial number plate location is under
the seat (Figure 3).
Figure 3
MVC-084X
Greasing and Lubrication
The machine should be greased every 50 hours or
yearly, whichever occurs first. You should grease
more frequently when operating conditions are
extremely dusty or sandy.
Grease Type: General-purpose grease.
There are 5 grease fittings located in the front axle
area:
1. One located on the inside of each wheel hub (2
total).
2. One located on each end of the front axle for the
spindles (2 total).
3. One located on the front axle pivot area (1 total)
(Figure 4).
Figure 4
MVC-085X
Hydrostatic model tractors have one grease fitting on
the forward/reverse pedal (Figure 5).
Figure 5
MVC-088X
