Rollers
g241360

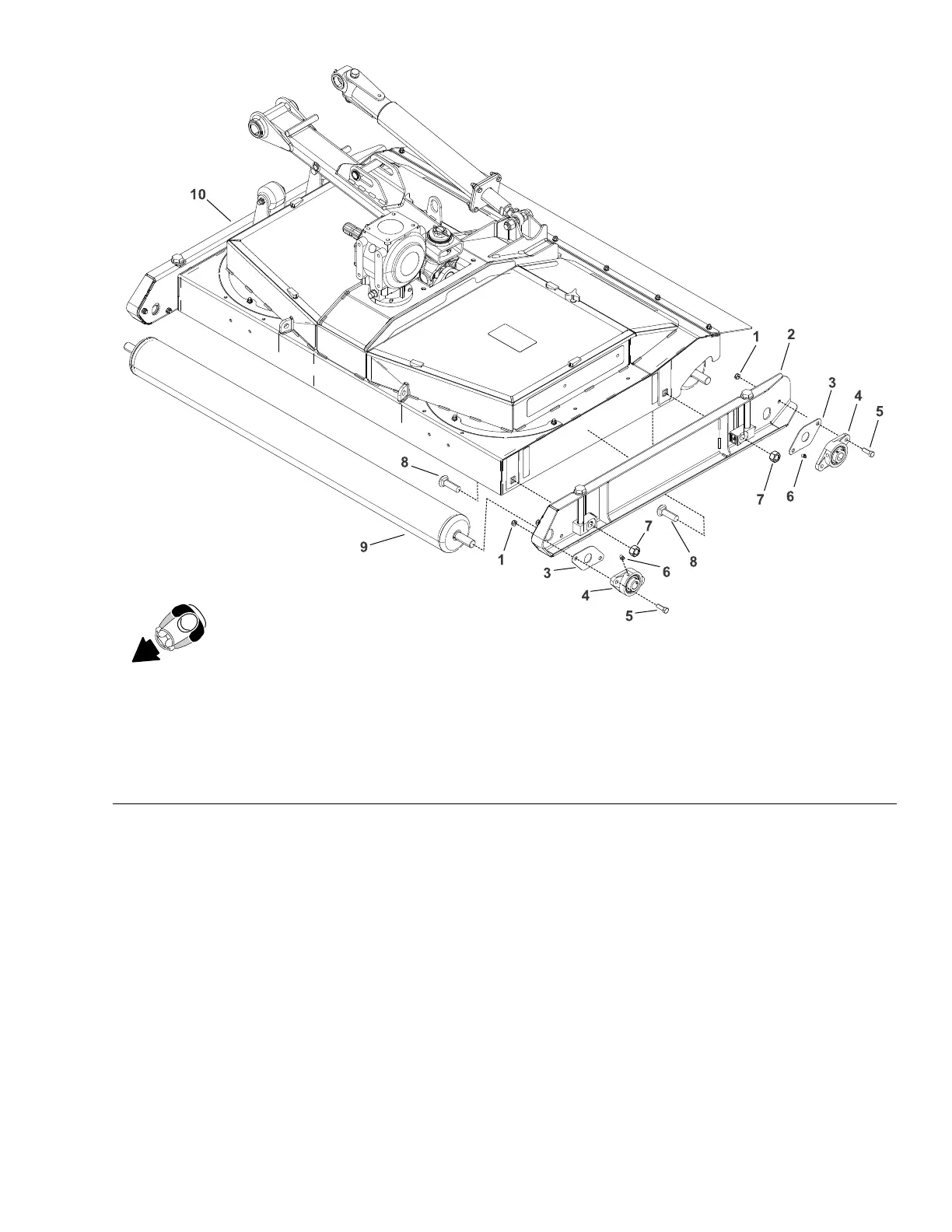

Figure55
1.Locknut(8each)5.Bolt(8each)
9.Rollerassembly
2.SkidassemblyLH6.Greasetting(4each)10.Cuttingunitassembly
3.Bearingshim(4each)7.Nut(4each)
4.Flangebushing(4each)8.Carriagebolt(4each)
RemovingtheRollers
Note:RefertoFigure55duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
2.Loosenthesetscrewsinthecollarsoftherollerbearings.
3.Loosenandremovethenuts(7)andcarriageboltthatsecurestheLHskid
assembly(2)tothecuttingunit(10).
4.RemovetheLHskidassembly(2)fromthecuttingunitassembly(10).
5.Slideandremovetherollerassembly(9)fromthecuttingunitassembly(10).
6.Ifnecessary,removethenuts(1),bolts(5),angebushing(4)andbearing
shim(3)fromtheLHskidassembly(2).
7.Loosenandremovethegreasettings(6)fromtheangebushing(4).
Groundsmaster®1200Pull-BehindRotaryMower
Page6–19
CuttingUnits:ServiceandRepairs
18235SLRevA
