Toro Groundsmaster 1200 User Manual

WheelBearings

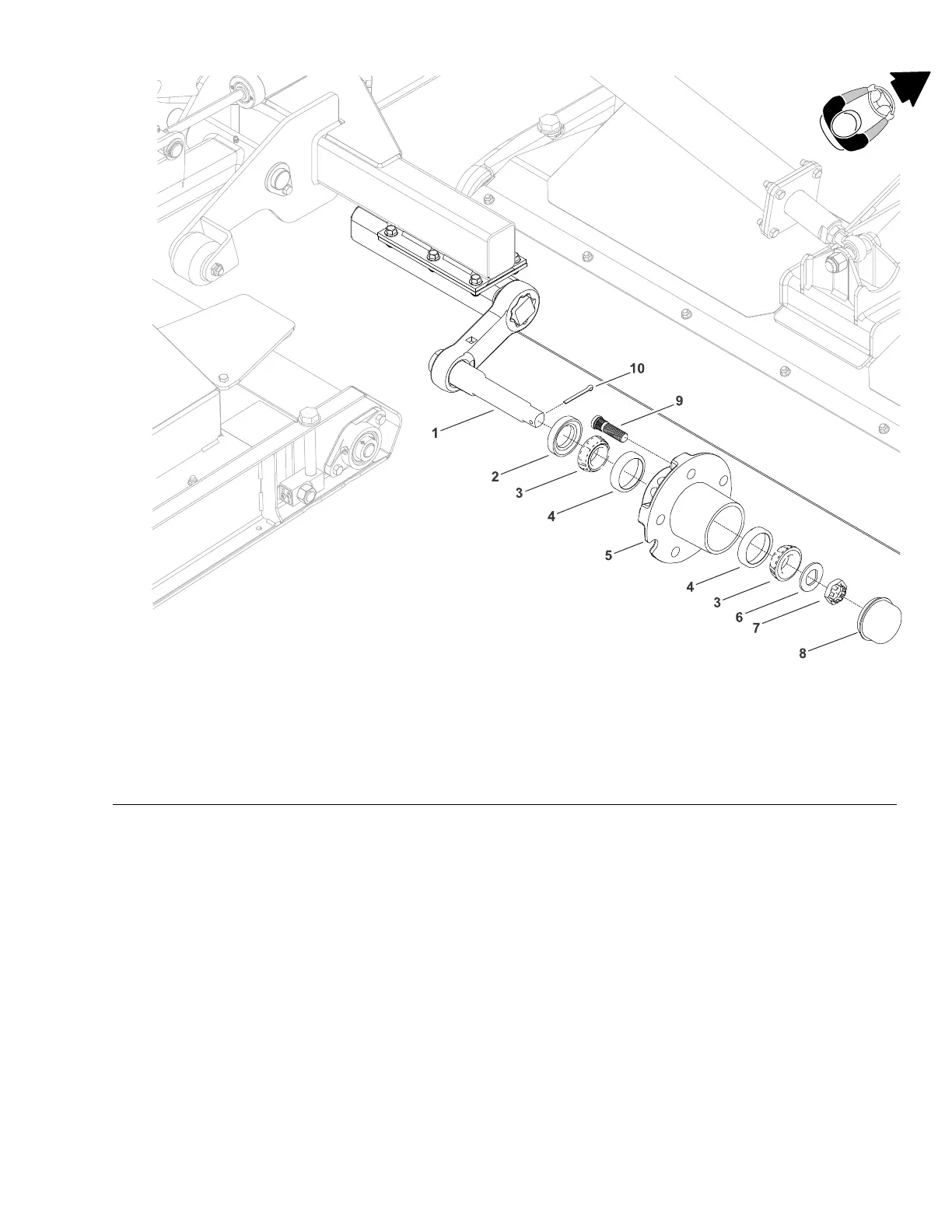

g241363
Figure8
1.Torsionaxle5.Wheelhub
9.Drivestuds(5eachperhub)
2.Oilseal6.Spindlewasher10.Cotterpin
3.Bearingcone(2eachperaxle)7.Slottednut
4.Bearingcup(2eachperaxle)
8.Dustcap
DisassemblingtheWheelBearings
Note:RefertoFigure8duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack(refertothe
Groundsmaster1200Operator’sManualforfurtherinstructionsontheproper
waytousethetowbarjack).
2.Blockthewheelthatyouarenotremovingwithchockstopreventthe
machinefrommoving.
3.Liftthemachinefromthegroundandsupporttheraisedmachinewitha
jackstand(refertotheGroundsmaster1200Operator’sManualforfurther
instructionsontheproperwaytousejackstands).
4.Removethewheel.
5.Carefullyremovethedustcap(8)fromthewheelhub.
Groundsmaster®1200Pull-BehindRotaryMower
Page3–5
Chassis:ServiceandRepairs
18235SLRevA
