Toro Groundsmaster 1200 User Manual

ServiceandRepairs
CuttingUnitLiftCylinder

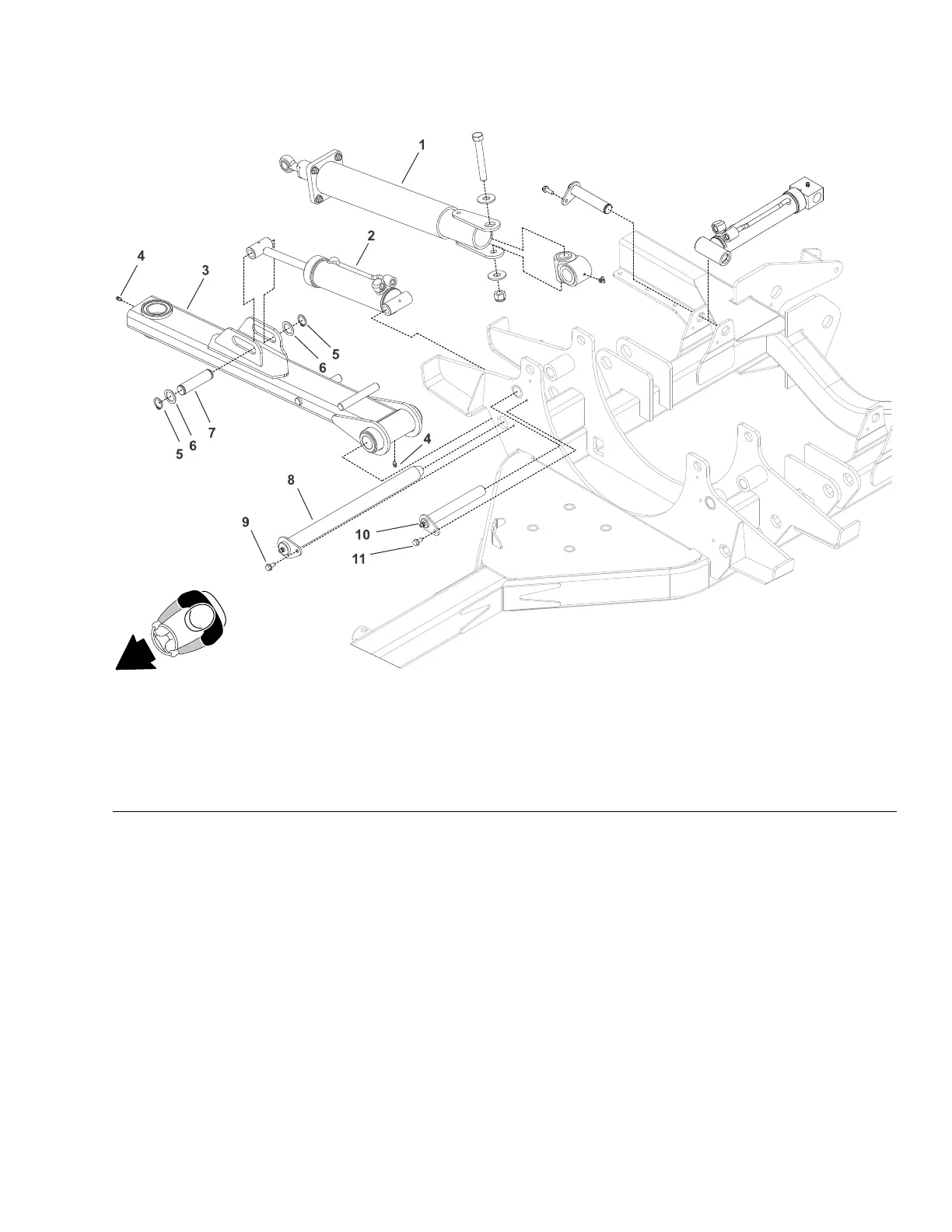

g241355
Figure28
1.Impactarmassembly
5.Snapring(2each)
9.Bolt
2.Liftcylinder6.Washer(2each)10.Liftcylinderpinassembly
3.Liftarm(RHshown)
7.Pin11.Bolt
4.Greasetting(2each)8.Liftarmpinassembly
RemovingtheCuttingUnitLiftCylinder
Note:RefertoFigure28duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
Note:Readthegeneralprecautionsforremovingandinstallingthehydraulic
systemcomponents.
2.Topreventcontaminationofhydraulicsystemduringtheliftcylinderremoval,
thoroughlycleanexteriorofthecylinderandttings.
Groundsmaster®1200Pull-BehindRotaryMower
Page4–9
HydraulicSystem:ServiceandRepairs
18235SLRevA
