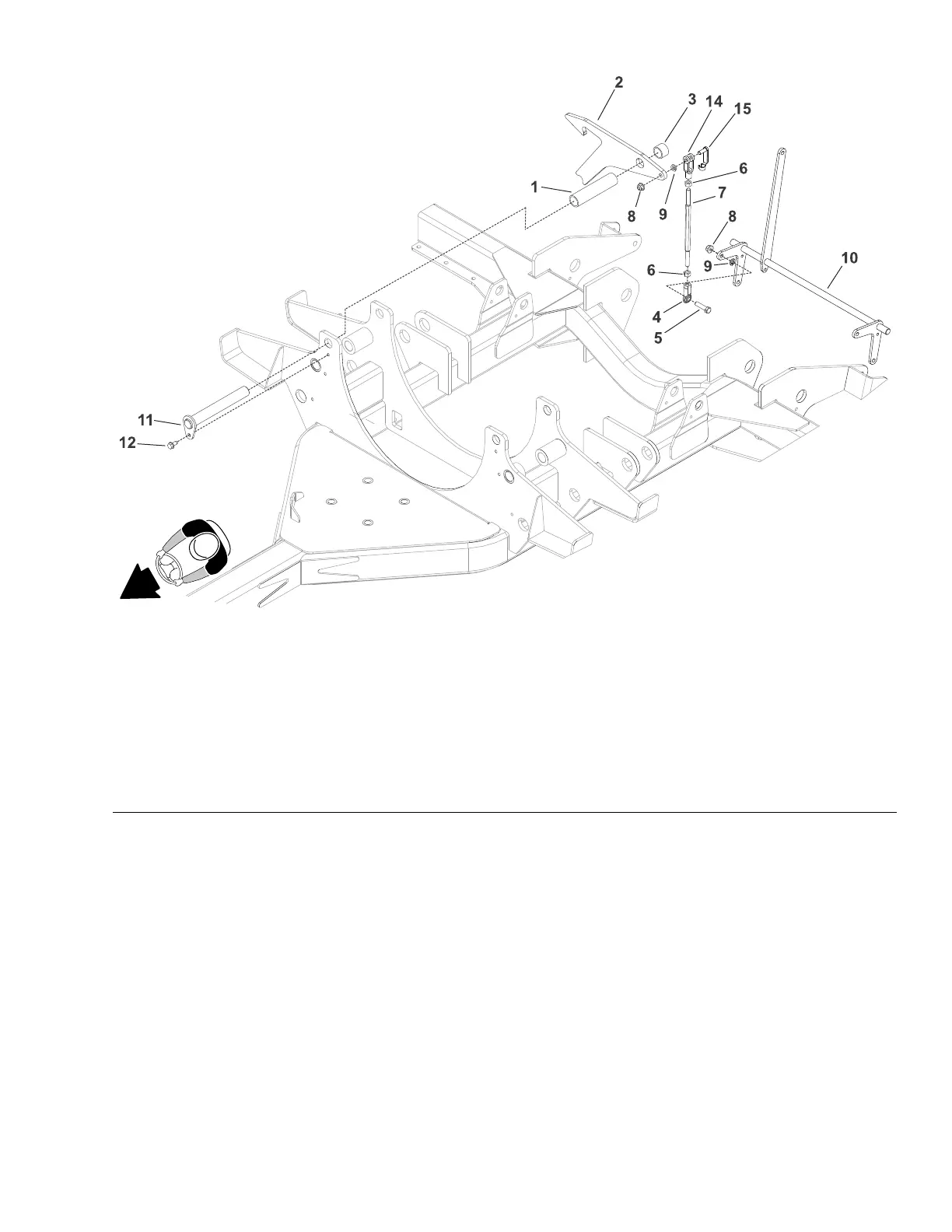

LatchLinkageAssembly
g243402
Figure20
SideCuttingUnitAssembly(shown)
1.Latchspacer
6.Hexnut(leftorright-handthread)
(2each)
11.Winglatchpinassembly
2.Winglatch
7.Quadrantlinkagerod
12.Washerheadbolt
3.Latchspacer8.Flatheadnut13.Yokelinkage
4.Rodend(left-handthread)9.Lockwasher(2each)14.Clevisspringpin
5.Bolt
10.Latchshaftassembly
Theentirelatchlinkageassemblymustbesecureandmovefreely.Repairor
replacethelatchlinkageassemblycomponentsasnecessary.
Adjustthequadrantlinkagerodsothattheclevisspringpiniscenteredinthe
slotofthewinglatch.
Groundsmaster®1200Pull-BehindRotaryMower
Page3–25
Chassis:ServiceandRepairs
18235SLRevA
