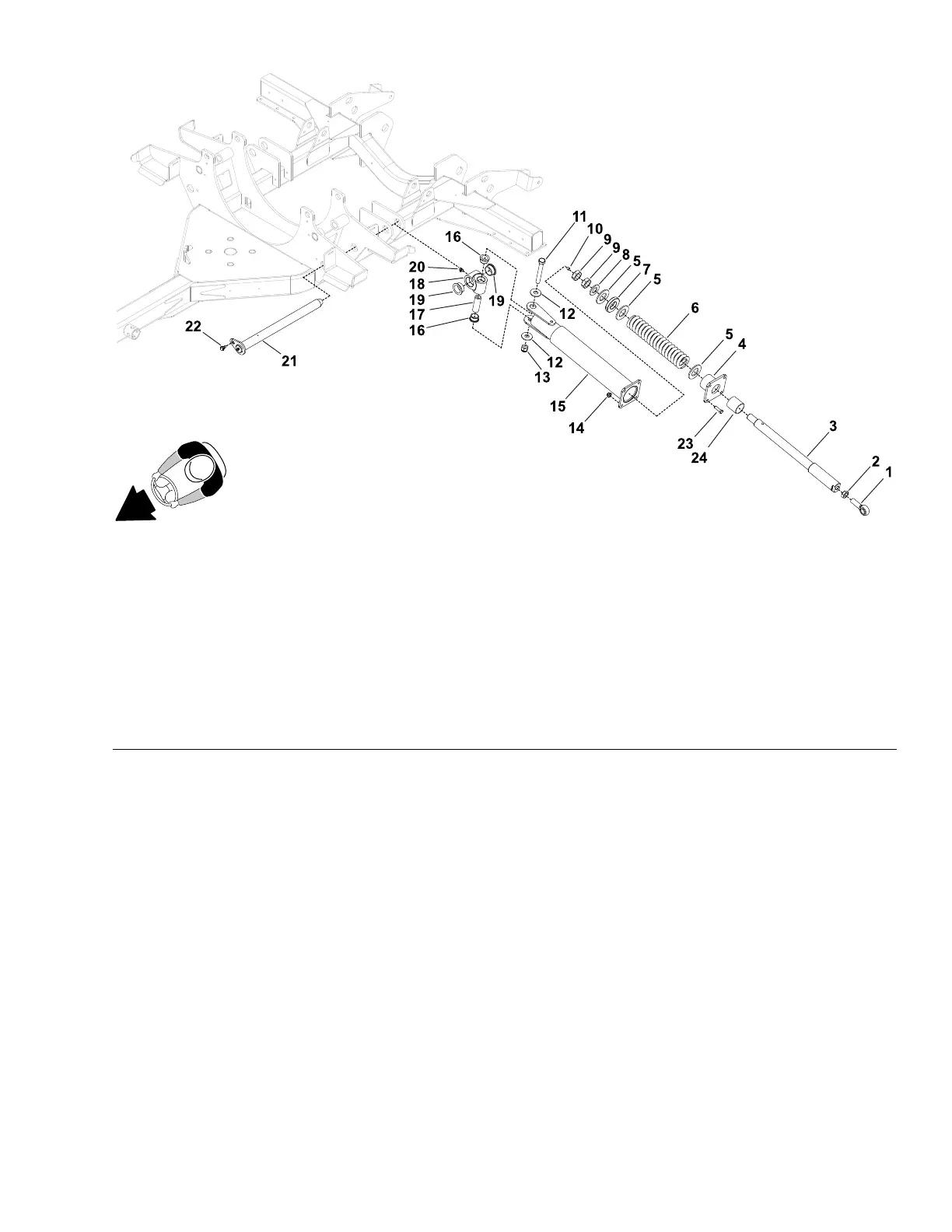

ImpactArmAssembly
g241352
Figure17
1.Rodend
9.Jamnut(2each)17.Spacertube
2.Jamnut10.Pipeplug18.Pivothub
3.Springshaft
11.Bolt
19.Flangebushing(2each)
4.Housing
12.Flatwasher(2each)20.Greasetting
5.Washer(3each)
13.Locknut
21.Liftarmpinassembly
6.Spring14.Flangenut(4each)
22.Bolt
7.Plasticbearing15.Impactarmhousing
23.Bolt(4each)
8.Flatwasher
16.Flangebushing(2each)
24.Plainbushing
RemovingtheImpactArmAssembly
Note:RefertoFigure8duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
Groundsmaster®1200Pull-BehindRotaryMower
Page3–21
Chassis:ServiceandRepairs
18235SLRevA
