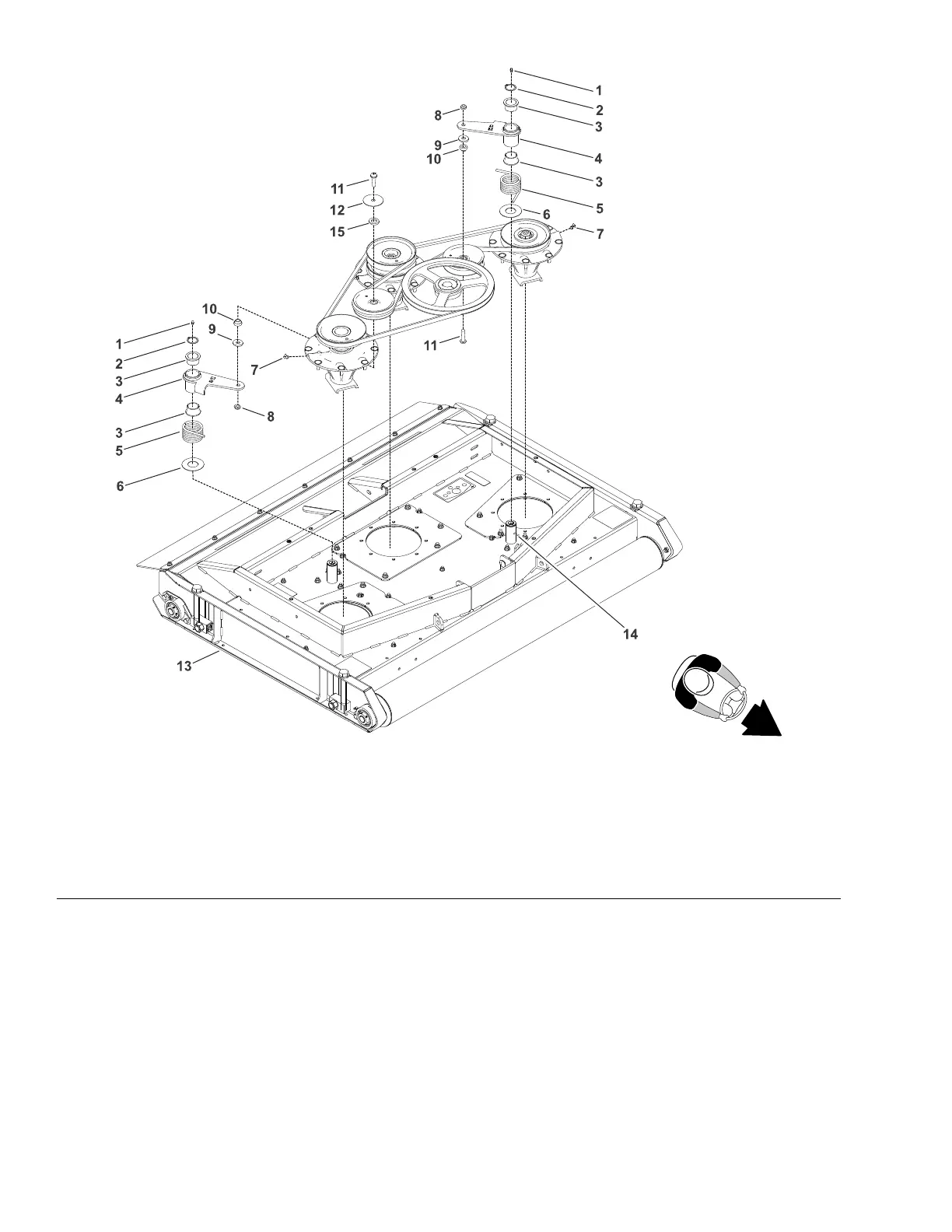

IdlerAssemblies
g241351
Figure46
1.Greasetting
6.Flatwasher11.Buttonheadscrew
2.Retainingring
7.Greasetting
12.Washer
3.Flangebushing(2each)
8.Locknut
13.Cuttingunit
4.Idlerarm9.Flatwasher14.Idlerpivot
5.T orsionspring10.Idlerspacer15.Lockwasher
RemovingtheIdlerAssembly
Note:RefertoFigure46duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
2.Removethecuttingunitcoversfromthetopofthecuttingunit.
3.Usea⅜”or½”driveratchetorbreakerbartorelieveidlerpulleytension
andremovethedrivebelt.
CuttingUnits:ServiceandRepairs
Page6–8
Groundsmaster®1200Pull-BehindRotaryMower
18235SLRevA
