HydraulicHoses

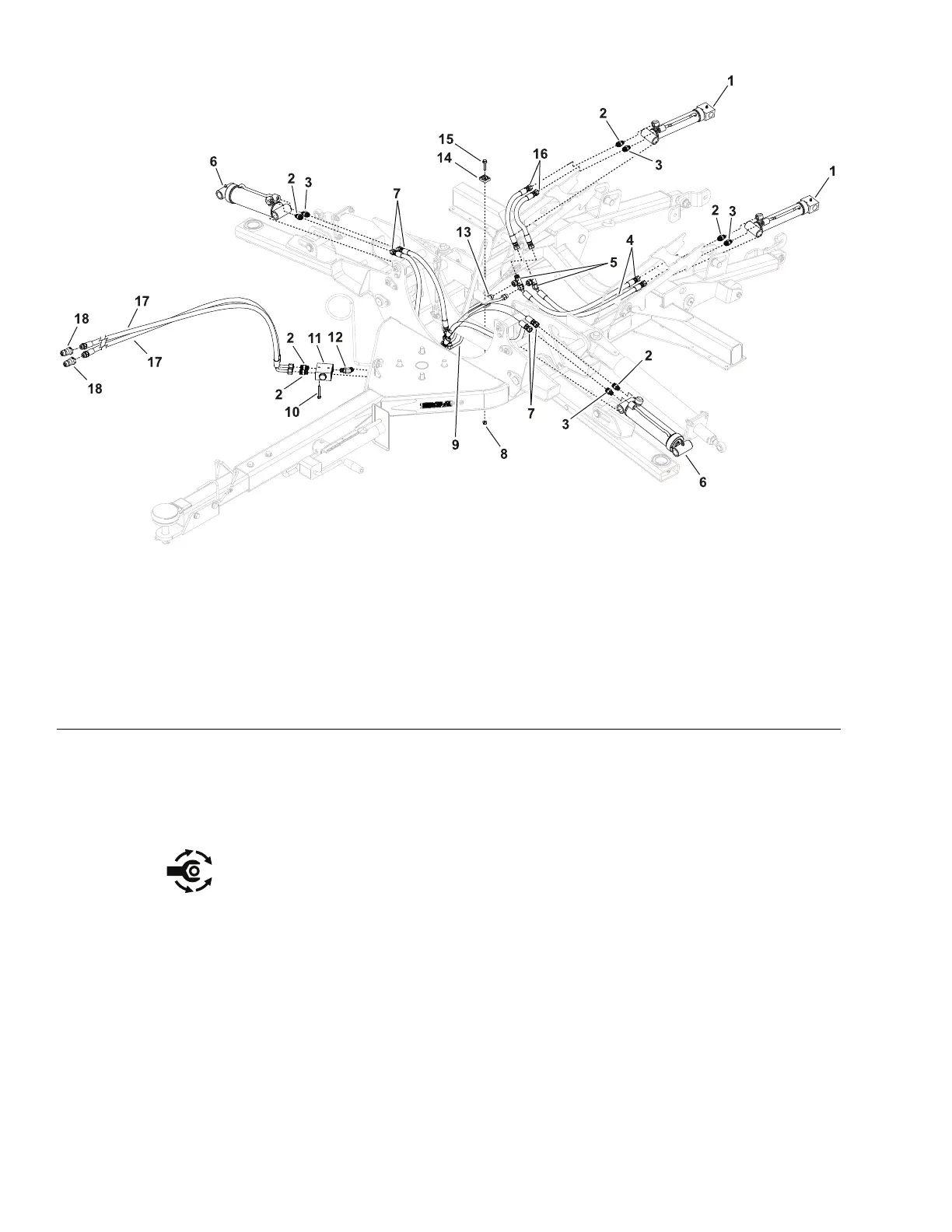

g251725
Figure30
1.Cylinderassembly(2each)7.Hoseassembly(2each)
13.Tubeassembly
2.Straighttting
8.Flatheadnut14.Tubeclamp
3.Oricestraighttting
9.Tubeassembly15.Flatheadscrew
4.Hydraulichose(2each)10.Flatheadscrew(2each)16.Hydraulichose(2each)
5.T eetting(2each)11.Manifold17.Hydraulichose(2each)
6.Cylinderassembly(2each)12.Elbowtting18.Quickconnectcoupler(2each)
Theentirehydraulichoseassembliesmustbesecureproperly.Repairorreplace
thehydrauliccomponentsasnecessary.
Afterassembly,checkthehydraulichosesandcylinderassembliesforproper
operation.
Note:Torquetightenthestraightttingsandelbowttingto27.1to35.2N·m(20
to26ft-lb).
HydraulicSystem:ServiceandRepairs
Page4–14
Groundsmaster®1200Pull-BehindRotaryMower
18235SLRevA
