Toro Groundsmaster 1200 User Manual

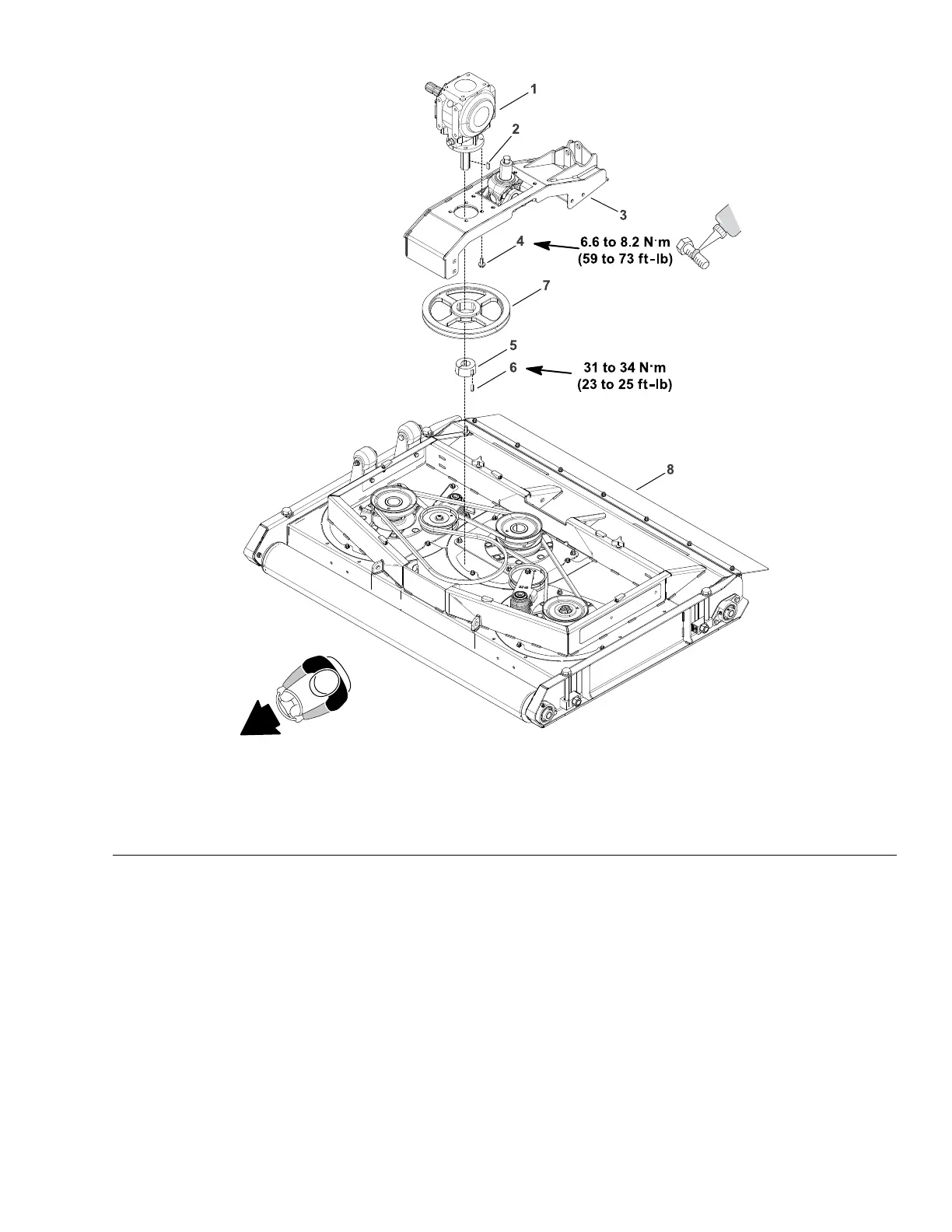

CuttingUnitGearBox
g255202
Figure38
1.Gearbox4.Bolt(4each)
7.Drivepulley
2.Key
5.Setscrew(2each)8.Cuttingunit
3.Deckmountassembly6.Taperlockbushing
RemovingtheCuttingUnitGearBox
Note:RefertoFigure38duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
2.Disconnectthedriveshaftfromthecuttingunitgearbox;refertoRemoving
theCuttingUnitDriveShafts(page5–5).
3.Removethecuttingunitcoversfromthetopofthecuttingunit.Removethe
drivebeltfromthecuttingunitpulleys;refertotheOperator’sManual.
4.Removethedeckmountassembly(3)fromthecuttingunitassembly(8);
refertoRemovingtheDeckMountAssembly(page6–5).
Groundsmaster®1200Pull-BehindRotaryMower
Page5–11
CuttingUnitDrive:ServiceandRepairs
18235SLRevA
