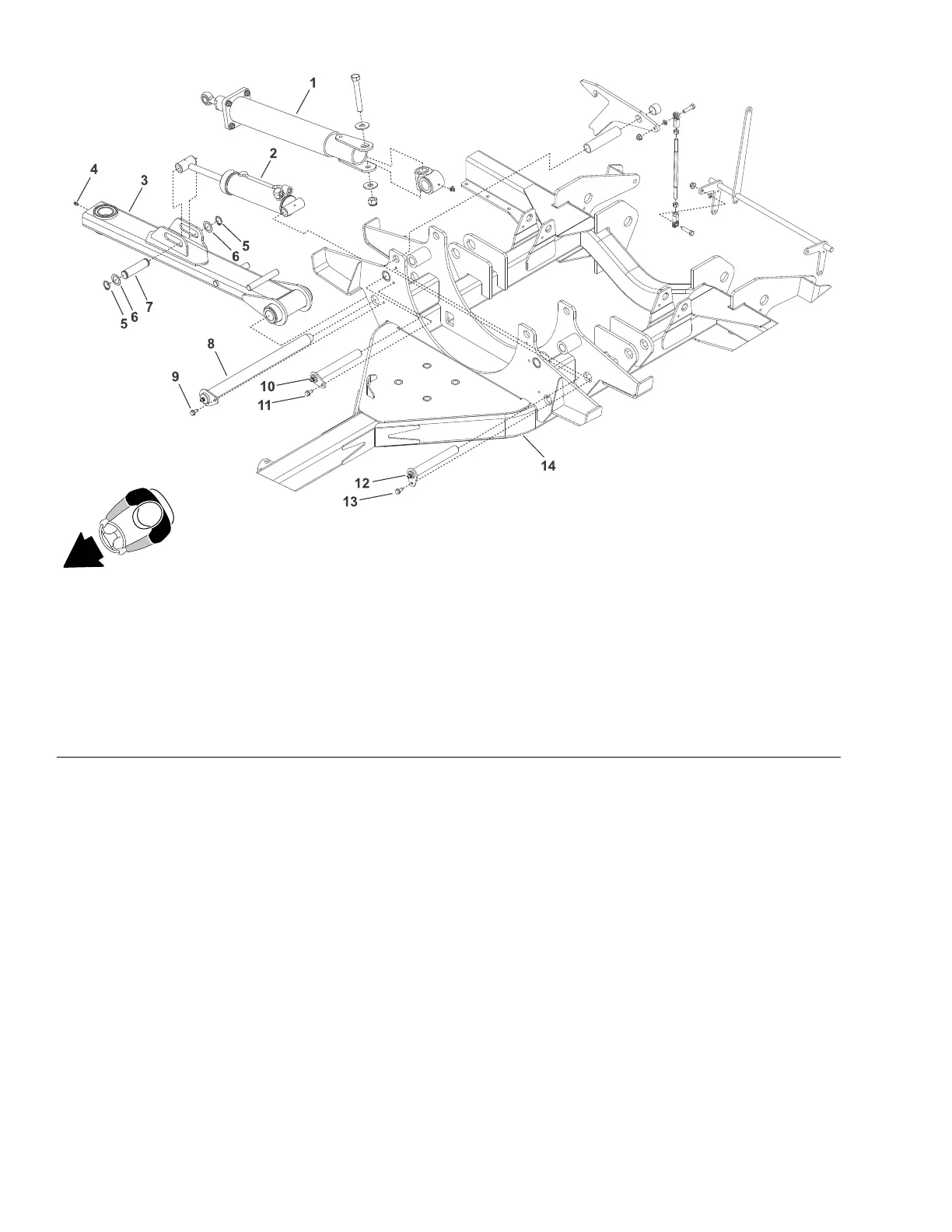

SideCuttingUnitLiftArmAssembly
g241354
Figure11
Rightsideliftarmassembly(shown)
1.Impactarmassembly
6.Washer(2each)
11.Bolt
2.Liftcylinder
7.Pin12.Latchwingpinassembly
3.Liftarm(RHshown)8.Liftarmpinassembly
13.Bolt
4.Greasetting(2each)
9.Bolt14.Frameassembly
5.Snapring(2each)10.Liftcylinderpinassembly
RemovingtheSideCuttingUnitLiftArmAssembly
Note:RefertoFigure11duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
2.Removethecuttingunitcovers.
3.Removetheliftcylinder(2)fromthesidecuttingunitliftarm(3);referto
RemovingtheCuttingUnitLiftCylinder(page4–9).
4.Ifnecessary,removetheimpactarmassembly(1)fromtheframeassembly
(14);refertoRemovingtheImpactArmAssembly(page3–21).
5.Removethesidecuttingunitliftarm(3)fromthejointyokeandcuttingunit
connection;refertoRemovingtheLiftArmJointYoke(page3–14).
6.Removethebolt(9),liftarmpinassembly(8)andremovethesidecutting
unitliftarmassembly(3)fromtheframeassembly(14).
Chassis:ServiceandRepairs
Page3–12
Groundsmaster®1200Pull-BehindRotaryMower
18235SLRevA
