Toro Reelmaster 5010- H User Manual

Bleeding the Fuel System
1. Prepare the machine for maintenance.
2. Ensure that the fuel tank is at least half full.
3. Open the hood.

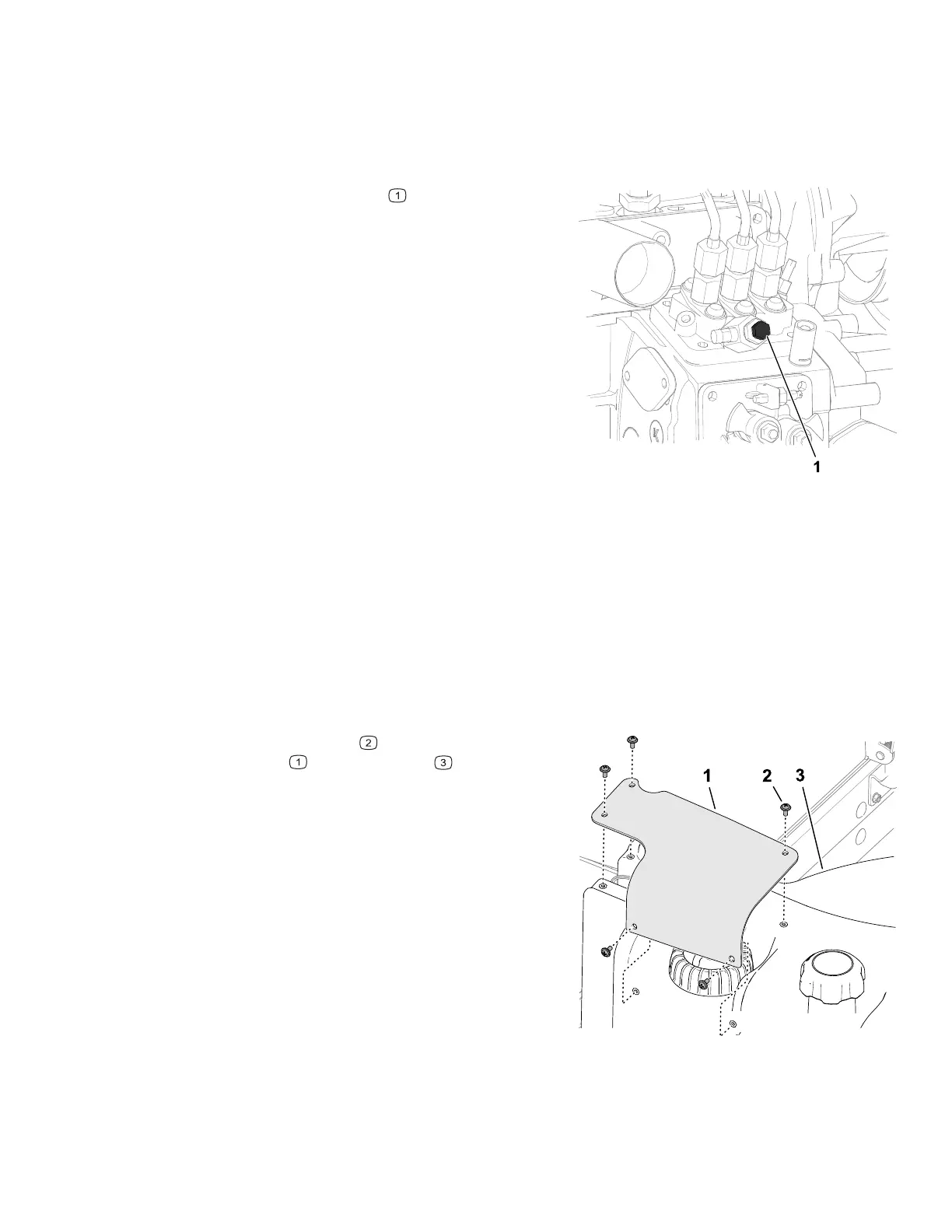

G439312
4. Open the air-bleed screw on the fuel-
injection pump.
5. Turn the ignition key to the O
N position.
Note: The electric fuel pump runs, forcing air
out around the air-bleed screw.
6. Tighten the screw and turn the ignition key to
the O
FF position.
7. Close and latch the hood.
Cleaning the Fuel-Pickup Tube Screen
Removing the Fuel-Pickup Tube
The fuel-pickup tube, located inside the fuel tank, is equipped with a screen to help prevent
debris from entering the fuel system. Remove the fuel-pickup tube and clean the screen as
required.
1. Prepare the machine for maintenance.
G415055
2. Remove the 5 screws that secure the fuel-
sender cover
to the fuel tank , and
remove the cover.
3464-478A Page 6–22 Maintenance: Fuel System Maintenance
