Installing the Cutting Units
Parts Required
5 Cutting units
Preparing the Machine
WARNING
If you do not disconnect the power to the cutting units, someone could accidentally
start the cutting unit, which could result in death or serious injury to hands and feet.
Always separate the power-disconnect connectors before working on the cutting
units.

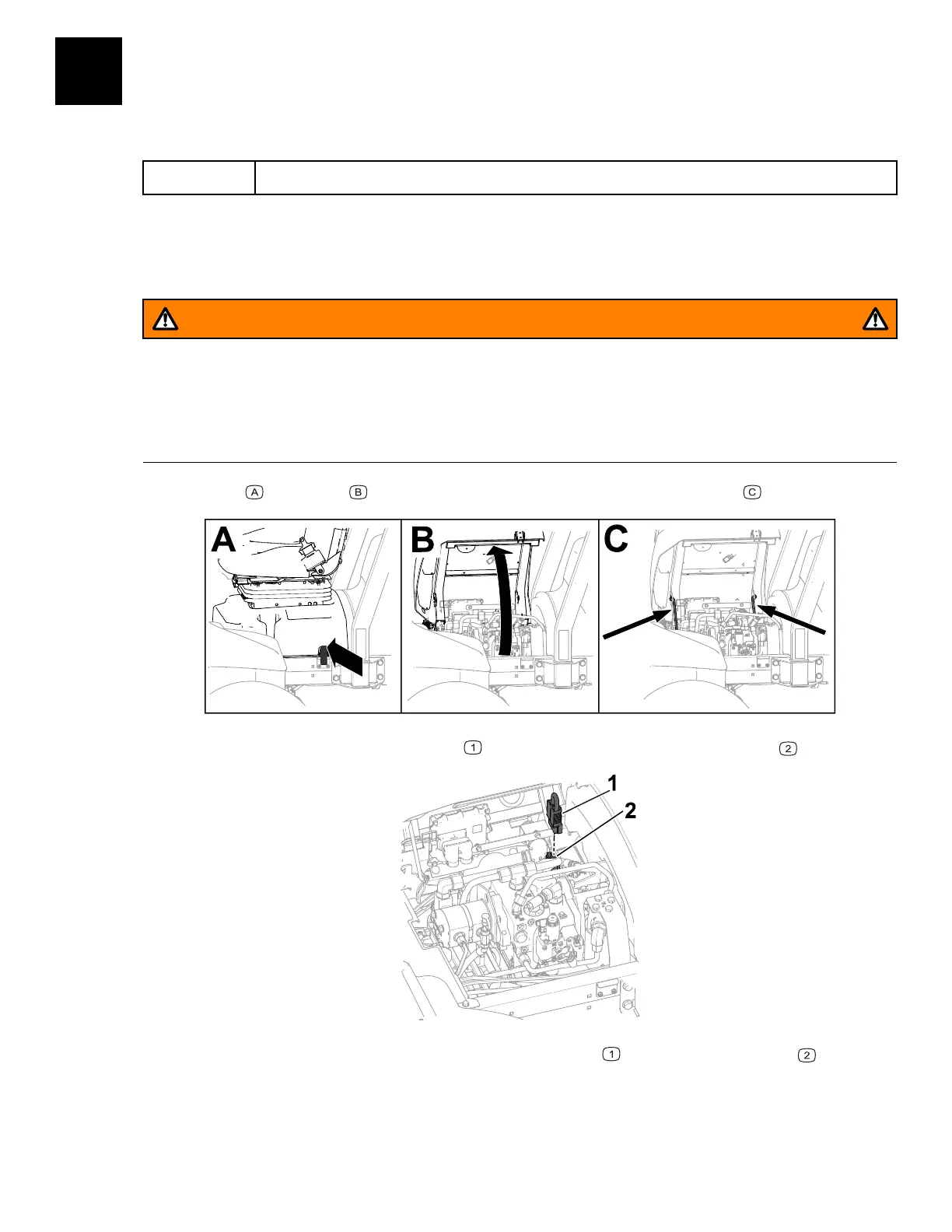

1. Unlatch
, tilt open , and support the seat base with the prop rods .
G437876
2. Unplug the 48 V system connector from the battery-disconnect jumper .
G437957
3. At each cutting unit lift arm, remove the snapper pin that secures the cap to the
pivot yoke, and remove the cap.
3464-478A Page 3–2 Setup: Installing the Cutting Units
