Installing the Reel Motors (continued)
G402696
4. Rotate the reel motor counterclockwise until
the flanges encircle the bolts.
5. Torque the mounting bolts to 19 to 25 N∙m
(14 to 18 ft-lb).
6. Repeat this procedure for the other cutting
units.
4
Mounting the Finishing Kits
Parts Required
1 Finishing kit (sold separately)
IMPORTANT
To ensure that the electrical cable routing is appropriate and the cables are not
twisted, mount the motors to the cutting units before mounting the finishing kits.

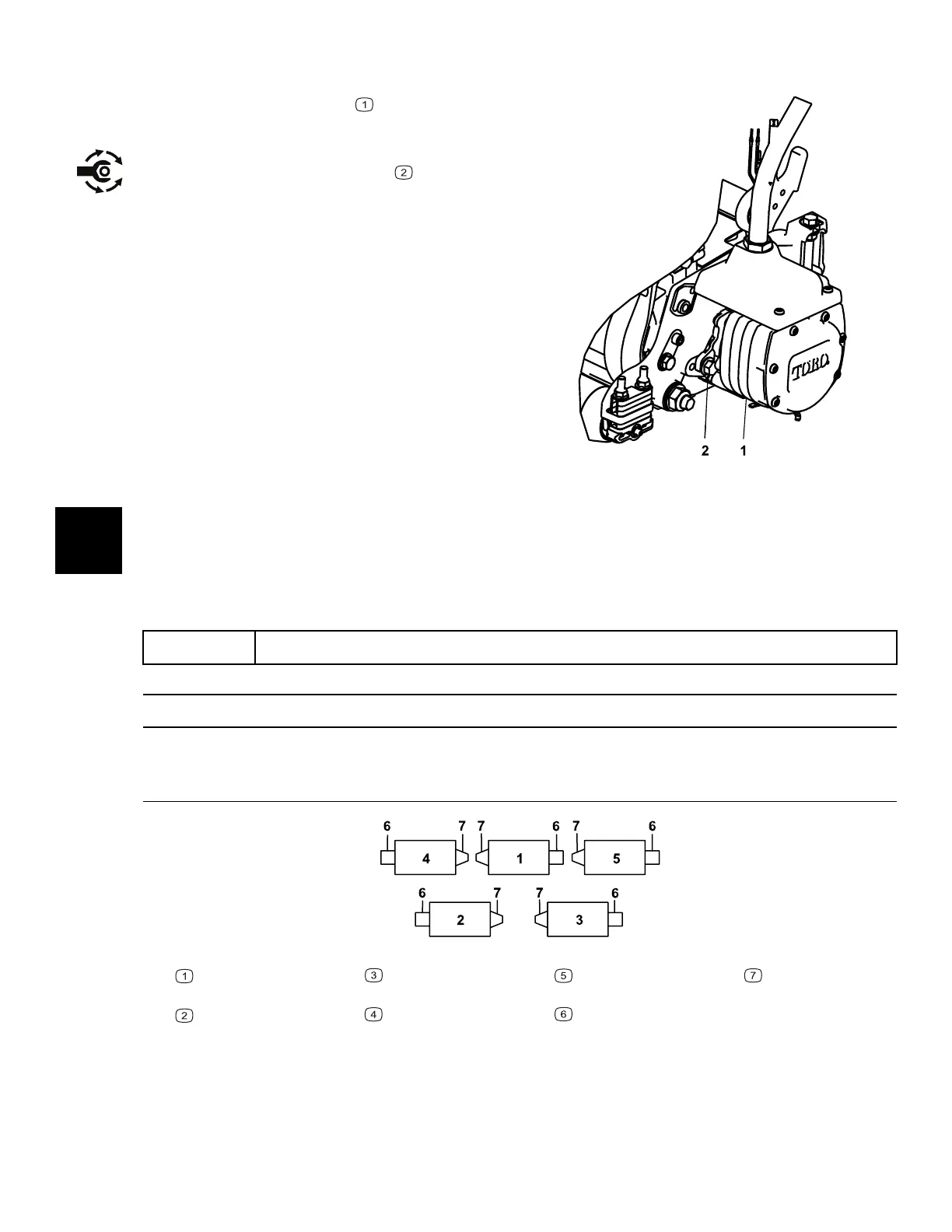

G402657
Center front cutting
unit
Left rear cutting
unit
Right rear cutting
unit
Left front cutting
unit
Right front cutting
unit
Reel motor location
Weight
1. Remove the extra flange nut as shown.
2. Loosen the nuts on the finishing kit hose fitting, insert the hose into the slot on the
bulkhead bracket, and tighten the nuts.
3464-478A Page 3–8 Setup: Mounting the Finishing Kits
