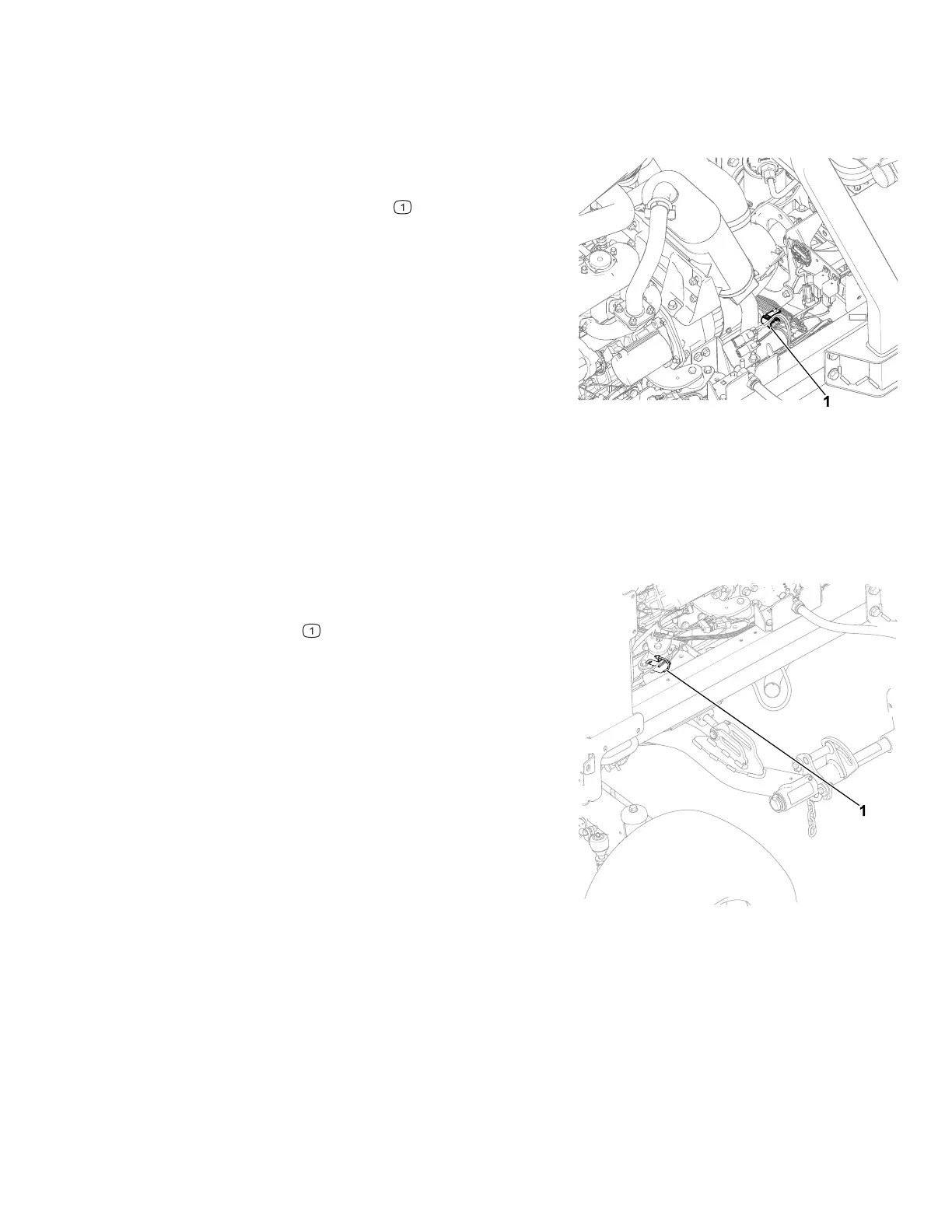

Replacing the Reel Enable Fuse
1. Prepare the machine for maintenance.
2. Unlatch and open the hood.
G439309
3. At the front, right side of the engine, remove
the cap from the in-line fuse holder labeled
“Enable Fuse 10 A 125 V”
.
4. Replace the open fuse with a fuse of the same
type and amperage rating.
5. Install the cap on the in-line fuse holder.
6. Close and latch the hood.
Replacing the Main Power Fuse
1. Prepare the machine for maintenance.
2. Unlatch and open the hood.
G439310
3. At the rear, right side of the engine, remove the
cover of the in-line fuse holder labeled “Main B
+ Power Fuse”
.
4. Replace the open fuse with a fuse of the same
type and amperage rating.
5. Assemble the cap to the in-line fuse holder.
6. Close and latch the hood.
3464-478A Page 6–30 Maintenance: Electrical System Maintenance
