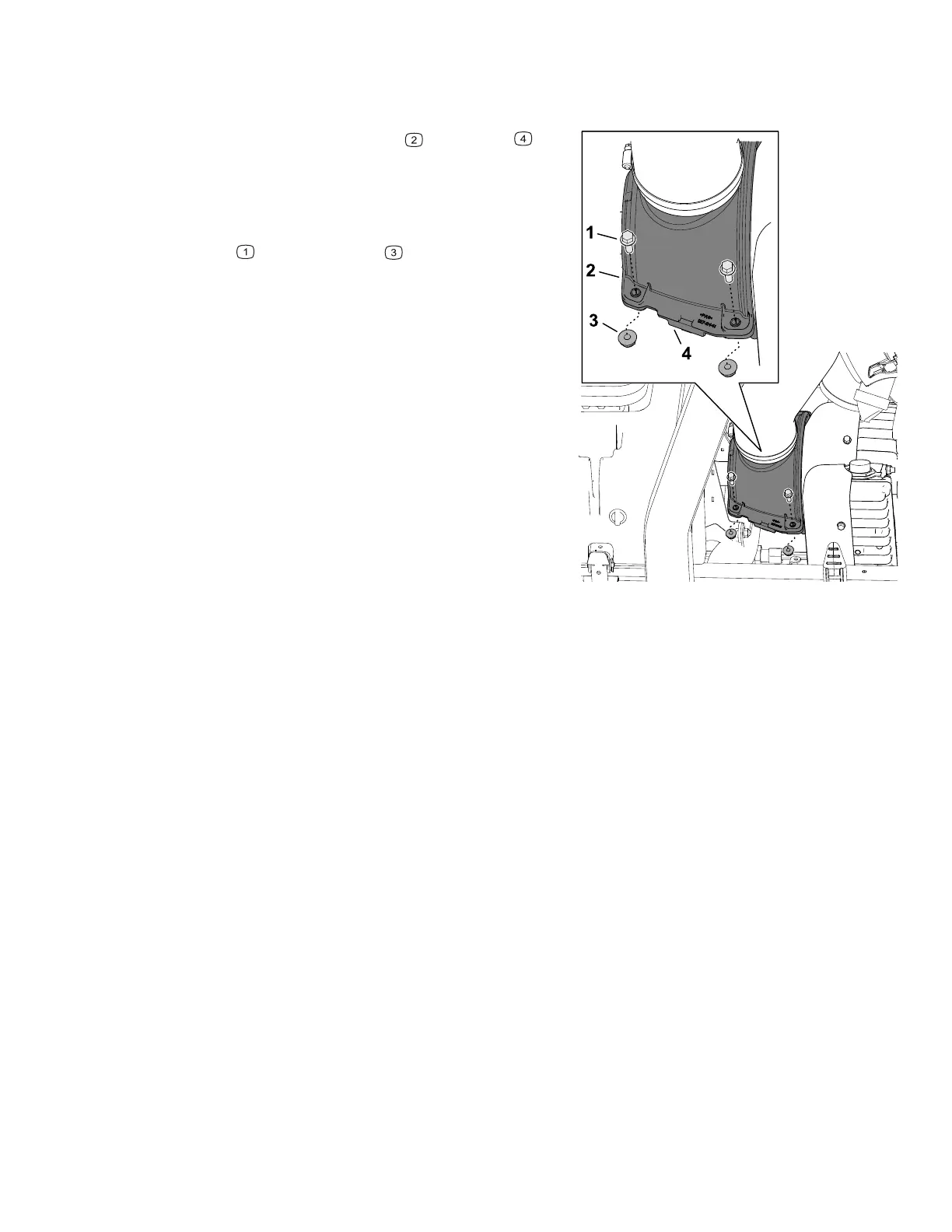

Assembling the Generator Cooling-Air Shrouds
(continued)
G414736
2. Align the holes in the upper and lower
generator cooling-air shrouds with the
compression-limiting pins.
3. Secure the halves of the generator cooling-air
shrouds and compression-limiting pins with the
4 bolts
and 4 locknuts .
Jacking Point Locations
Note: Support the machine with jack stands whenever you work under the machine.
Use the following as machine-lift points:
• Front—the jack brackets of the front-axle tube.
• Rear—the rear-axle tube.
Maintenance: Pre-Maintenance Procedures Page 6–9 3464-478 A
