Introduction
TV back panel connections
8 ARROWS /// —When a menu is onscreen, these
buttons function as up/down/left/right menu navigation
buttons.
9 EXIT—Instantly closes an onscreen menu.
10 USB port—Accesses JPEG or MP3 files, or updates TV
firmware.
TV back panel connections
For explanations of cable types and connections, see “Overview of
cable types” on page 20.

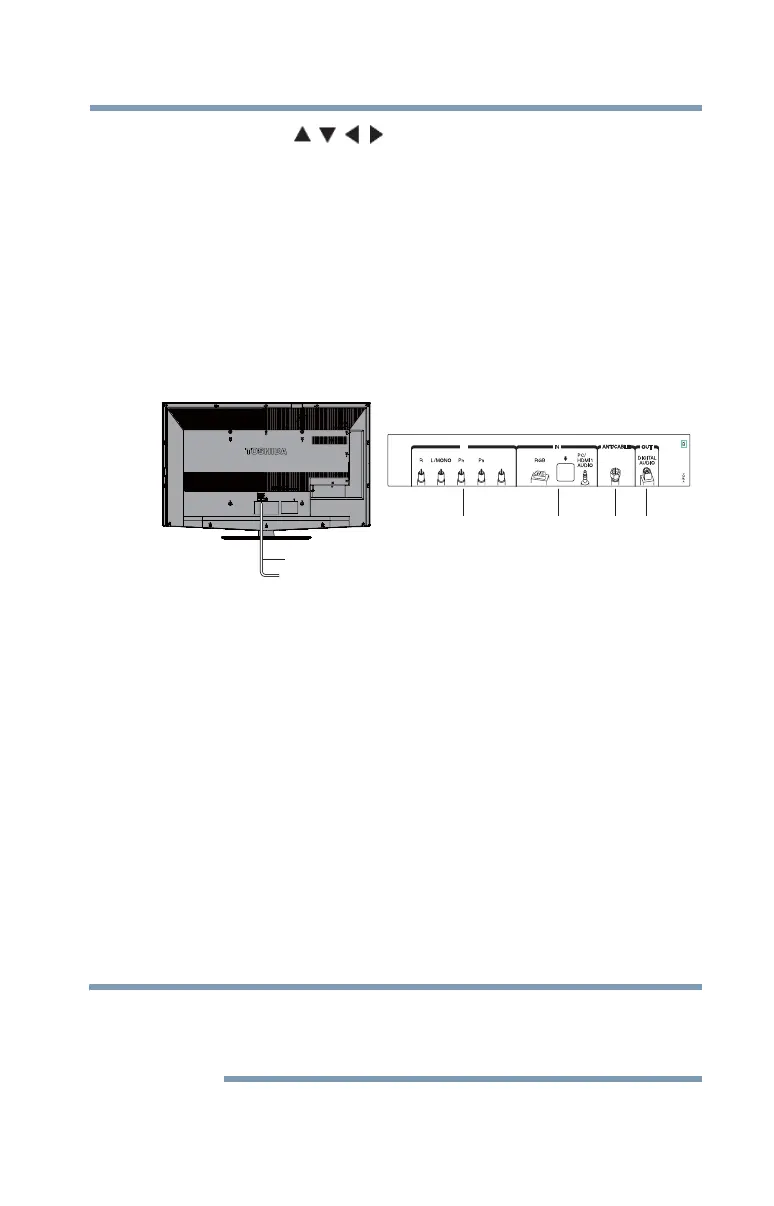

(Sample Illustration) Back panel connections
1 Digital AUDIO OUT—Optical audio output in Dolby
®
Digital
or PCM (pulse-code modulation) format for connecting an
external Dolby Digital decoder, amplifier, or home theater
system with optical audio input.
2 ANT/CABLE—Antenna input that supports analog (NTSC)
and digital (ATSC) off-air antenna signals and analog and
digital cable TV (QAM) signals.
3 PC/HDMI-1 (Audio) IN—PC audio input terminal is shared
with an HDMI-1 analog audio input terminal, and its use can
be configured in the Audio Setup menu, see “Setting the PC
Audio” on page 94.
4 ColorStream
®
HD—High-resolution component video input
and shared composite video input, see “Connecting a Blu-
ray™/DVD Player with ColorStream
®
(component video), and
a satellite receiver” on page 24.
Component/Standard (composite) video cables carry only video
information; separate audio cables are required for a complete
connection.
423
1
Power Cord
Y/VIDEO
HGRD500000I
VIDEO/COLOR STREAM HD
IN
NOTE

Toshiba 50L2200U Specifications

General

3D	No
Display diagonal	50 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Display diagonal (metric)	125.7 cm
RMS rated power	14 W
USB 2.0 ports quantity	1
Consumer Electronics Control (CEC)	Anynet+
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	91 W
Sustainability certificates	ENERGY STAR
Package weight	25990 g

Weight and Dimensions

Depth (with stand)	287 mm
Height (with stand)	764.5 mm
Weight (with stand)	20500 g
Depth (without stand)	99.06 mm
Width (without stand)	1161 mm
Height (without stand)	716.3 mm
Weight (without stand)	18780 g
