24
Connecting Your TV
Connecting a Blu-ray™/DVD Player with ColorStream
®
*To select the video input source, press the INPUT button on the
remote control, see “Selecting the video input source” on page 55.
The unauthorized recording, use, distribution, or revision of
television programs, videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the United States and other
countries, and may subject you to civil and criminal liability.
Connecting a Blu-ray™/DVD Player with ColorStream
®
(component video), and a satellite receiver

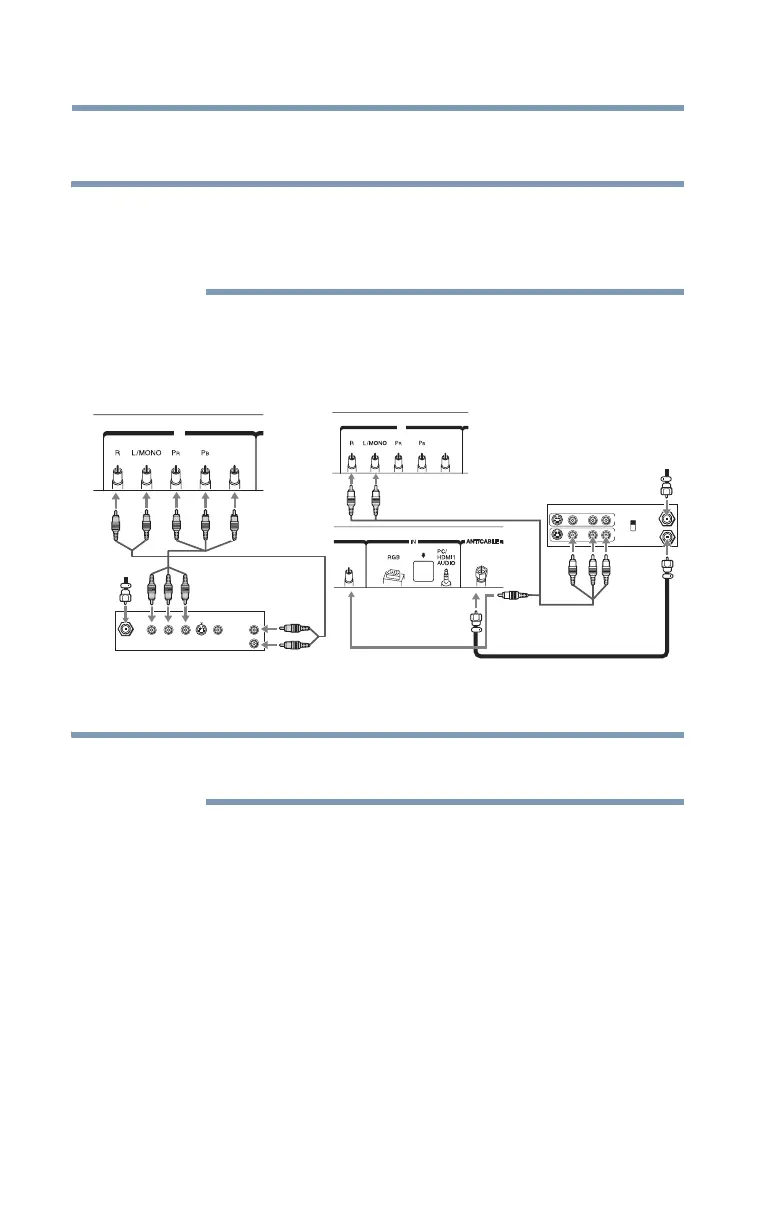

(Sample Illustration) Connecting a Blu-ray™/DVD Player,
Satellite receiver, or VCR with ColorStream™
ColorStream
®
and composite video cables cannot be connected
simultaneously.
Items needed:
❖ Coaxial cables
❖ Standard AV cables
If you have a mono VCR, connect L/MONO on the TV to your
VCR’s audio out terminal using the white audio cable only.
❖ Standard audio cables
❖ Component video cables
❖ You can connect the component video cables (plus audio
cables) from the DVD player or satellite receiver to the
COLOR STREAM HD terminal in the TV. The COLOR
STREAM HD terminal can be used to display Progressive
(480p, 720p) and Interlaced (480i, 1080i) scan systems.
Y/VIDEO
D
Y/VIDEO
VIDEO/COLOR STREAM HD
IN
IN from ANT
VIDEO AUDIO
OUT to TV
LR
R
L
OUT
IN
CH 3
CH 4
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
COMPONENT VIDEO
L
R
Satellite
IN
P
B
PR
Y
From antenna
Stereo VCR
TV back panel
From
satellite dish
TV back panel
Y/VIDEO
VIDEO/COLOR STREAM HD
IN
To Next Page
