Connecting Your TV
Connecting a computer
Connection to the TV’s HDMI
®
terminal
When connecting a computer with a DVI terminal on the TV, use
an HDMI
®
-to-DVI adapter cable and analog audio cables.
When connecting a computer with an HDMI
®
terminal, use an
HDMI
®
cable (type A connector). Separate analog audio cables
may not be necessary, depending on computer hardware and setup,
see “Connecting an HDMI® or DVI device to the HDMI® input”
on page 26.

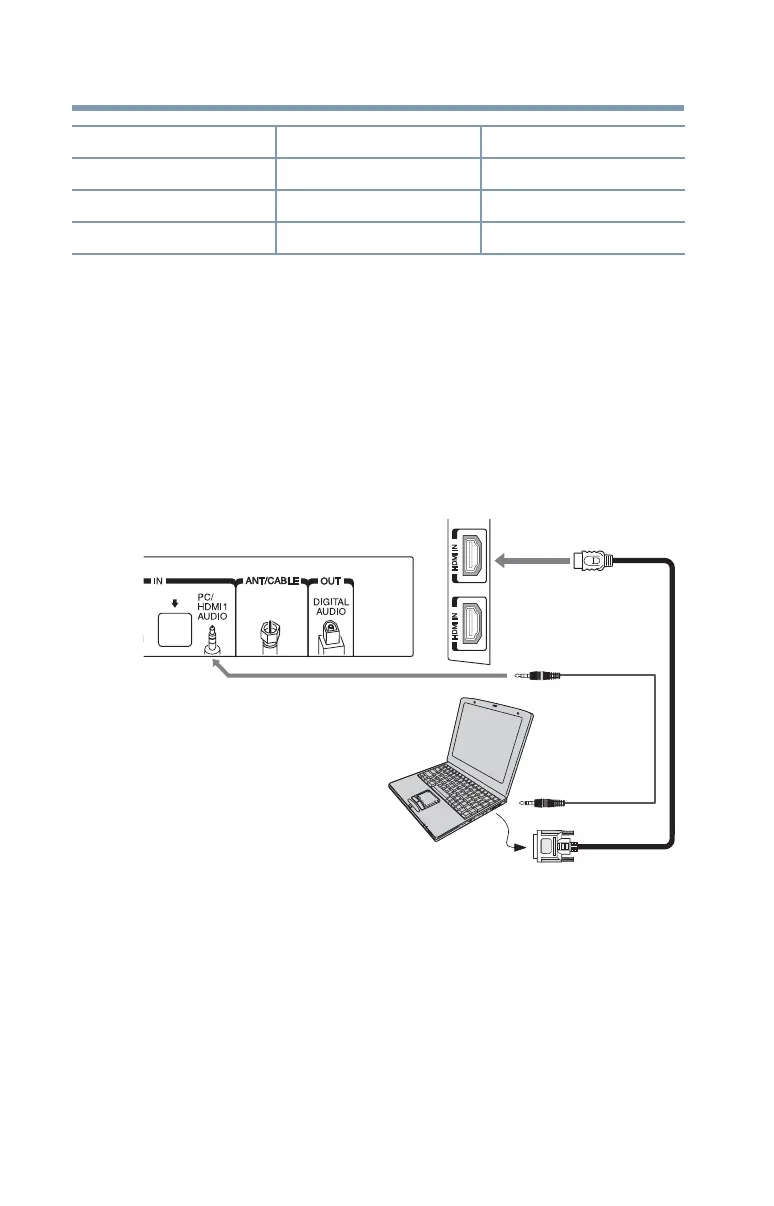

(Sample Illustration) Connections to HDMI
®
terminal
The supported signal formats are VGA, SVGA, XGA, WXGA,
SXGA, 480i (60Hz), 480p (60Hz), 720p (60Hz), 1080i (60Hz), and
1080p (24Hz/60Hz). For signal specifications, see “Acceptable
signal formats for PC IN, HDMI®” on page 122.
2G 7Ground 12SDA
3B 8Ground 13H-sync
4 Reserved 9 5V 14 V-sync
5 Ground 10 Ground 15 SCL
PC audio
cable
PC audio
output
HDMI
to DVI adapter cable
Computer
2
1
TV back panel TV side panel
®

Toshiba 50L2200U Specifications

General

3D	No
Display diagonal	50 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Display diagonal (metric)	125.7 cm
RMS rated power	14 W
USB 2.0 ports quantity	1
Consumer Electronics Control (CEC)	Anynet+
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	91 W
Sustainability certificates	ENERGY STAR
Package weight	25990 g

Weight and Dimensions

Depth (with stand)	287 mm
Height (with stand)	764.5 mm
Weight (with stand)	20500 g
Depth (without stand)	99.06 mm
Width (without stand)	1161 mm
Height (without stand)	716.3 mm
Weight (without stand)	18780 g
