4 Replacement Procedures 4.14 System board
4-40 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
6. Turn over the system board and disconnect the LAN cable from the connector
CN4100 on the system board.
7. Peel off the insulator. Take out the DC-IN cable and TV antenna coaxial cable
from the slot. Remove the DC-IN cable from the connector CN8800.

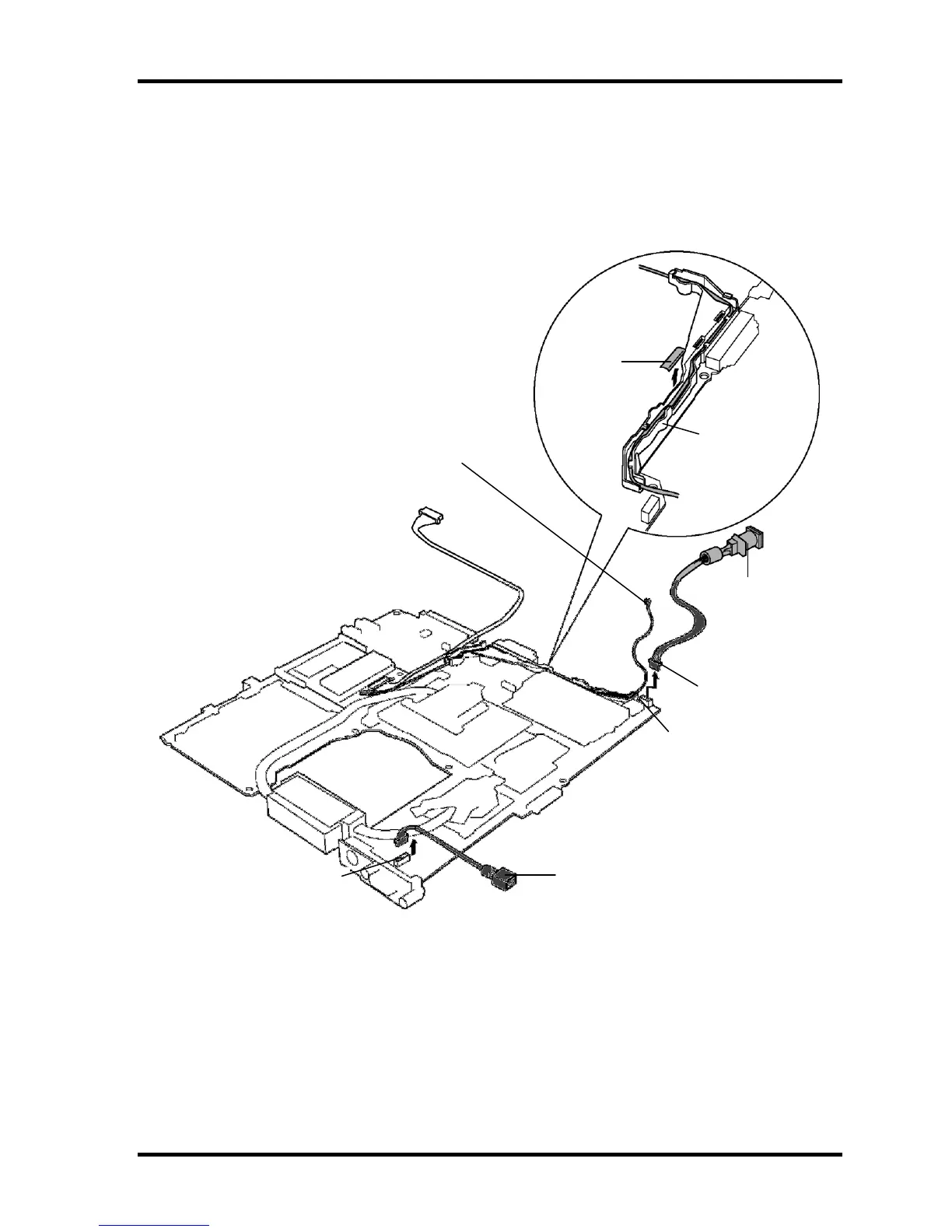

Figure 4-29 Removing DC-IN jack and LAN jack
CN4100
LAN jack
CN8800
DC-IN jack
Insulator
Slot
DC-IN cable
TV antenna coaxial cable
