E6582175
F-51
6
[Setting of jog run mode (RES-CC)]
Ex) Assign jog run mode to control terminal RES.
Title Function Adjustment range Setting
f113
Input terminal selection (RES) 0-203
18
(Jog run mode)
Note 1: During the jog run mode, low speed detection signal (LOW) is output but designated frequency reach
signal (RCH) is not output, and PID control does not work.
Note 2: When only the operation panel is used for operation in jog run mode, the jog run function does not need to
be assigned to any input terminal.

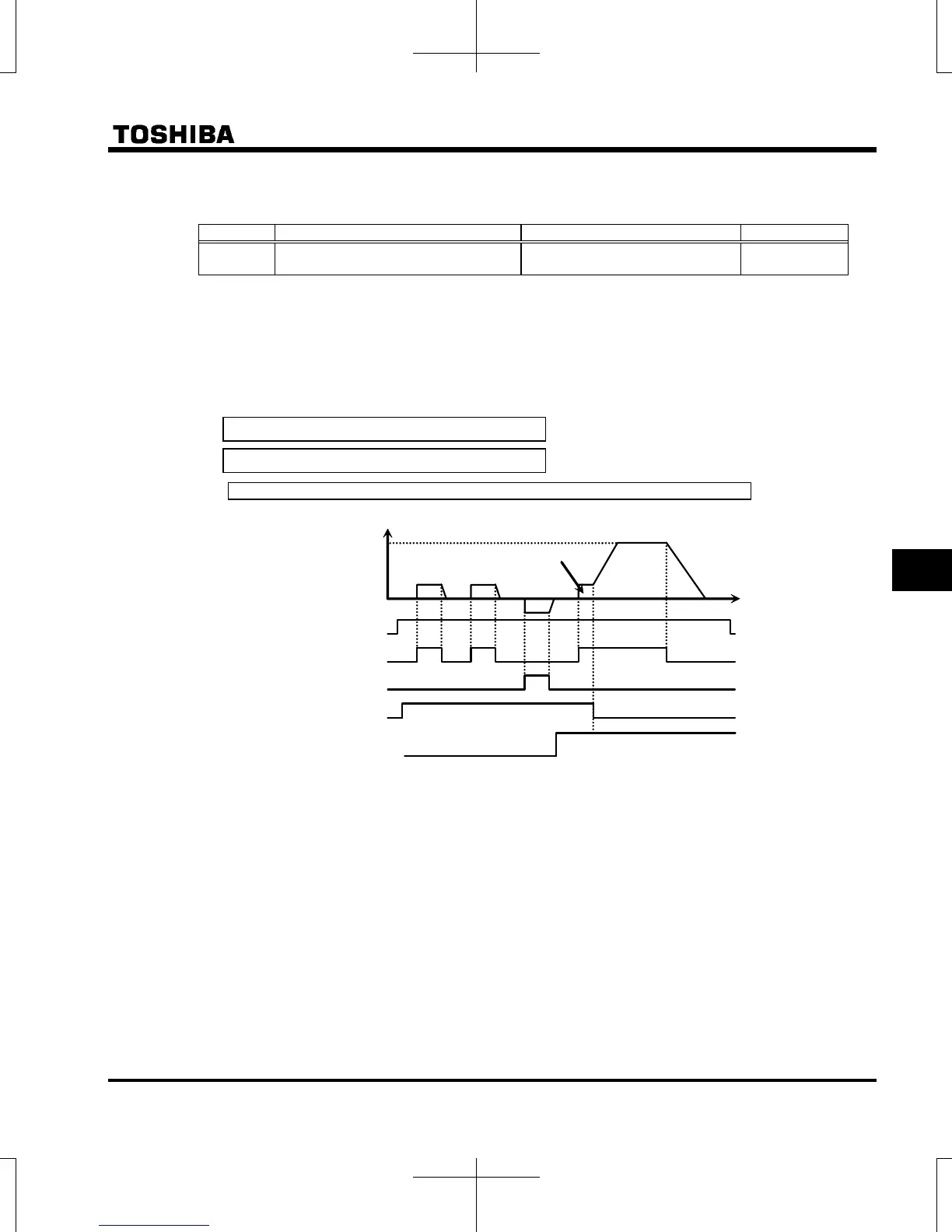

<Examples of jog run>
RES (JOG): ON + F:ON: Forward jog run
RES(JOG): ON + R: ON: Reverse jog run
( Frequency command + F: ON: Forward run , Frequency command + R: ON: Reverse run )
The jog run setting terminal (RES-CC) is enabled when the value of operation frequency is that of the jog
run frequency and below.
This connection does not function when operation frequency exceeds the jog run frequency.
The motor can be operated in jog mode while the jog run setting terminals are connected (RES-CC).
Jog run has priority to new operation command given during operation.
Even for f261 = 0 or 1, an emergency DC braking (f603 = 2) is prior to the setting.
No limits are imposed to the jog run frequency by the upper-limit frequency (parameter ul).
ST-CC
F-CC
R-CC
RES-
Frequency command input
Reverse
Forward
Forward
Set frequency
(=18)
Forward
