Toshiba Tosvert VF-S15 User Manual

E6582175
A-5
1

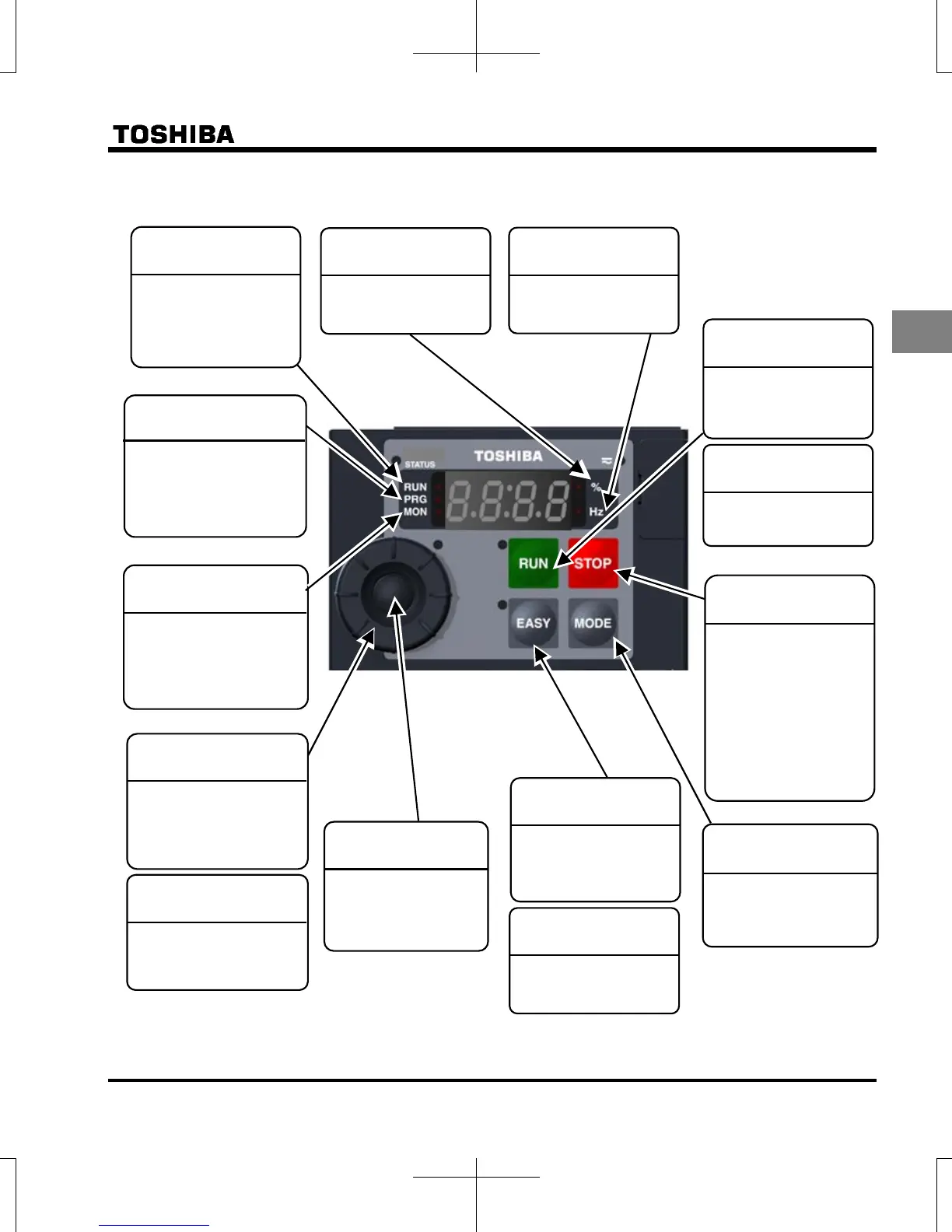

[Operation panel]
MON lamp
While this is lit, the inverter
is in monitor mode.
While blinking, the inverter
is in "Past Trip History
Details Monitor Display".
Hz lamp
Displayed numbers are
in Hertz.
Setting dial
Turning the dial left and
right changes the
operation frequency,
parameters and etc.
EASY key
Switches between
easy and standard
setting modes.
MODE key
Switches between run,
settings, and status
monitor modes.
While the RUN lamp is
blinking, pressing this
key once to slow down
and stop the inverter.
During the terminal
block operation,
pressing this key twice
for emergency stop.
During trip, pressing
this key twice for reset.
STOP ke
y
PRG lamp
When lit, the inverter is
in parameter setting
mode. When blinking,
the inverter is in
auh.
Lit when a frequency is
not output with the ON
run command. This lamp
blinks when operation
starts.
RUN lamp
％ lamp
Displayed numbers are
in %.
Center of the
setting dial
Pressing the center of the
setting dial is used for
determining values.
Setting dial lamp
Setting the operation
frequency while this
lamp is lit.
EASY key lamp
Lights when the EASY
key is enabled.
RUN key
Pressing this key while
the RUN key lamp is on
starts operation.
RUN key lamp
Lights when the RUN
key is enabled.
