■ Motor control parameter
default setting update information
■ Adaptation to TOSHIBA IE3 motor
TOSHIBA standard motor has been changed from traditional IE1 motor to IE3 motor for energy efficiency improvement.
VF-S15 inverter parameter default setting values are changed to adapt the motor control characteristics of IE3 motor.
If the inverter of the new software version V120 or later is applied to traditional IE1 motor, adjust the parameters according to this
sheet, because the motor control characteristics may not be same as the inverter of the old software version V116 or earlier.
This sheet explains the product identification, the default setting values changed for IE3 motor and the adjustment of the inverter
parameter for traditional IE1 motor.
■ Product identification
Identify the software version as following method.
a) Status monitor mode by the panel
CPU1 version shows the software version.
(Refer to section 8.2)
b) Name plate or packaging label of the inverter

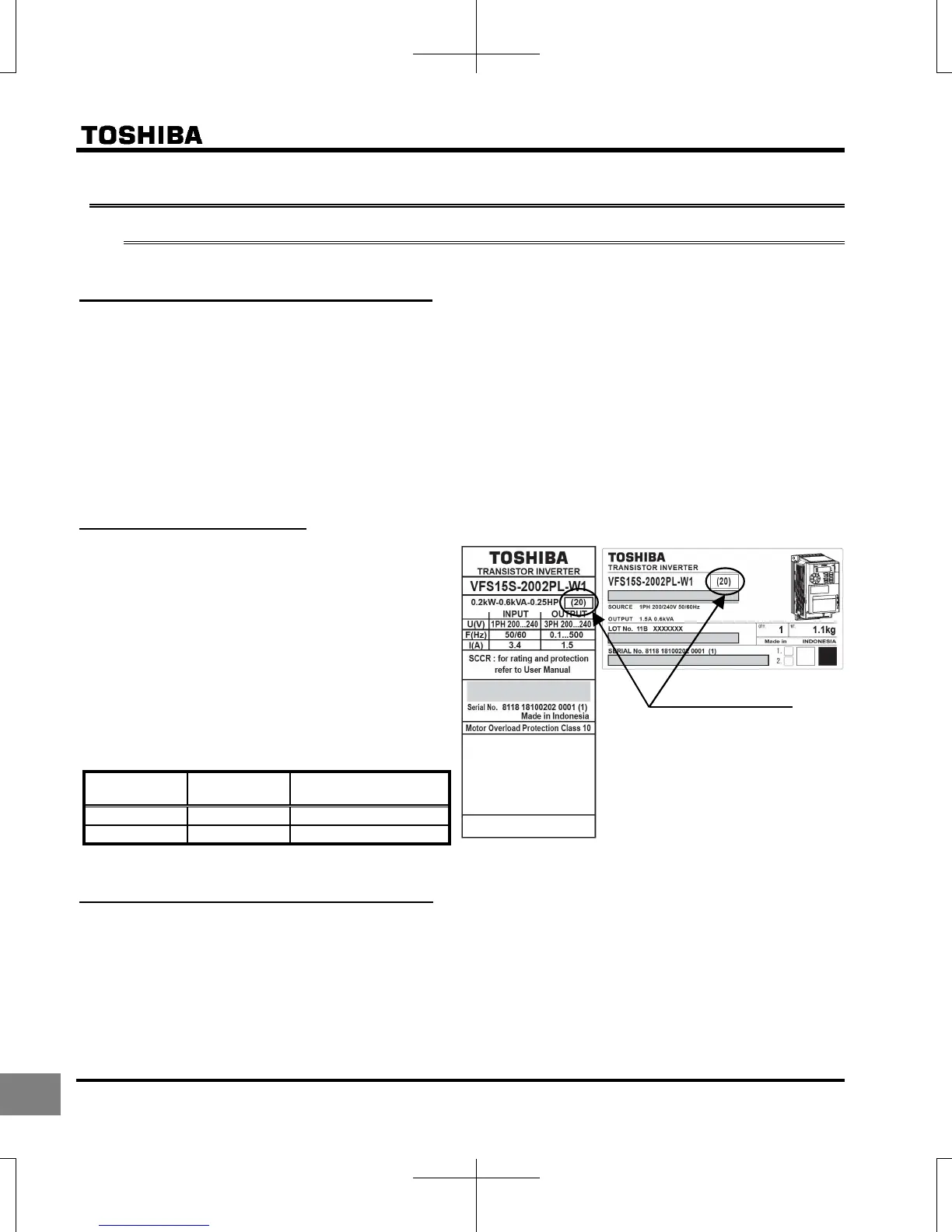

Product version (refer to right figure)
on the name plate or packaging label shows
following identification number.
Product
version
Software
version
Target motor
as default
(0) ~ (8) V100 ~ V116 Traditional IE1 motor
(20) ~ V120 ~ IE3 motor
■ In case of new adoption of inverter
All parameters on Table 1 should be set as follows.
a) In case of using IE3 motor, the parameters on Table 1 can be used without change.
b) In case of using traditional IE1 motor, the parameter values should be adjusted according to Table 4.
c) In case of using other motor or in case of setting pt (V/F control mode selection) except 0, 1 or 7,
the parameter values should be adjusted to suit to applied motor. (For example: To do auto tuning)
Name plate
Packaging label
P
roduct version
S-1
