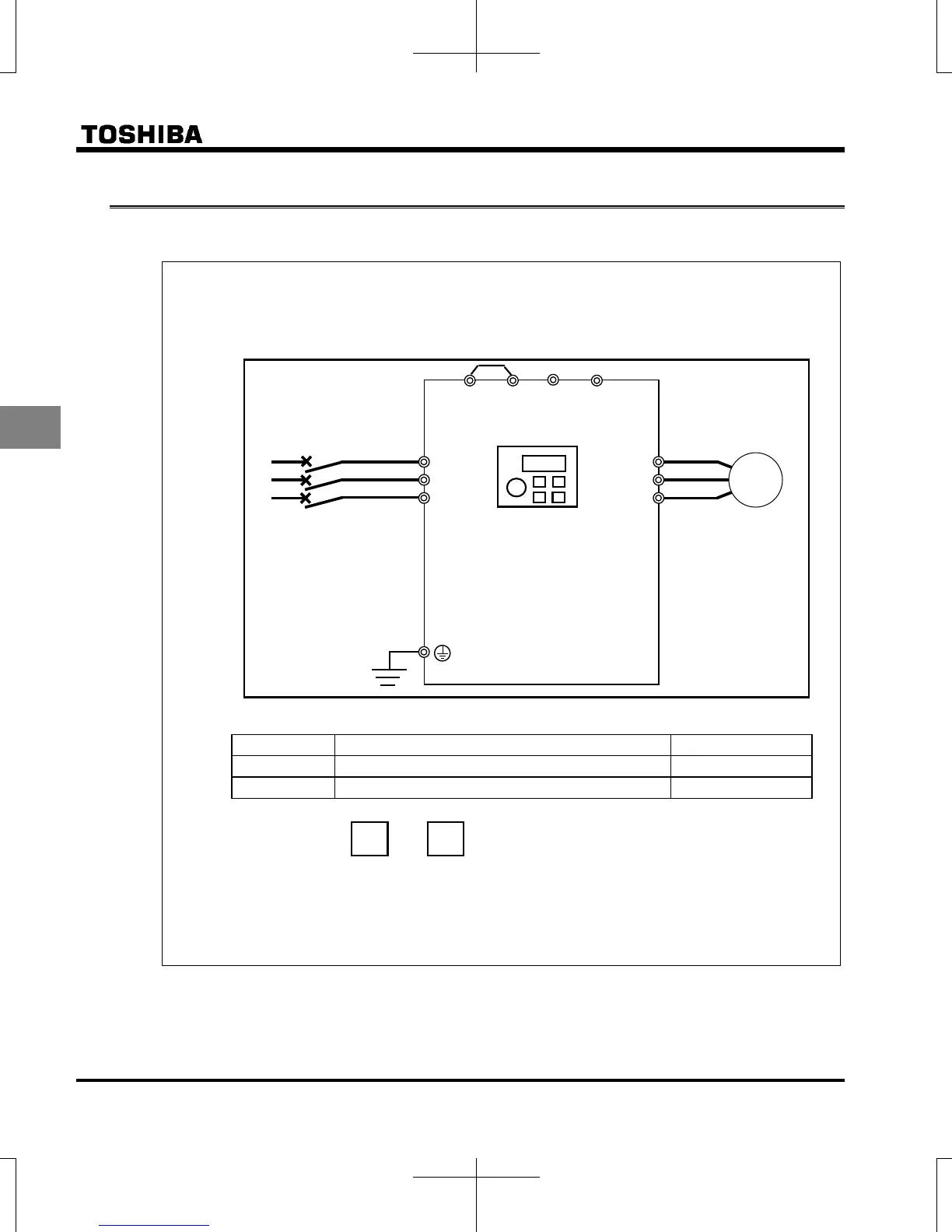

3.3 How to operate the VF-S15
Overview of how to operate the inverter with simple examples
Operation Command: Panel Operation
Frequency Command: Setting Dial 1
(1) Wiring
(2) Parameter setting (default setting)
Title Function Setting value

Command mode selection
1

Frequency setting mode selection 1
0
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Turn the setting dial to set the frequency. The frequency setting is saved just by
turning the setting dial.
*1: Single-phase models are R/L1 and S/L2/N.
Ex.1
Motor
M
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Operation panel
MCCB
PB
PA/ +
PO
PC/-
*
1
RUN
STOP
